2006 oil pump oil filter oil dipstick — Mk4 Golf Engine (2003 - 2004)

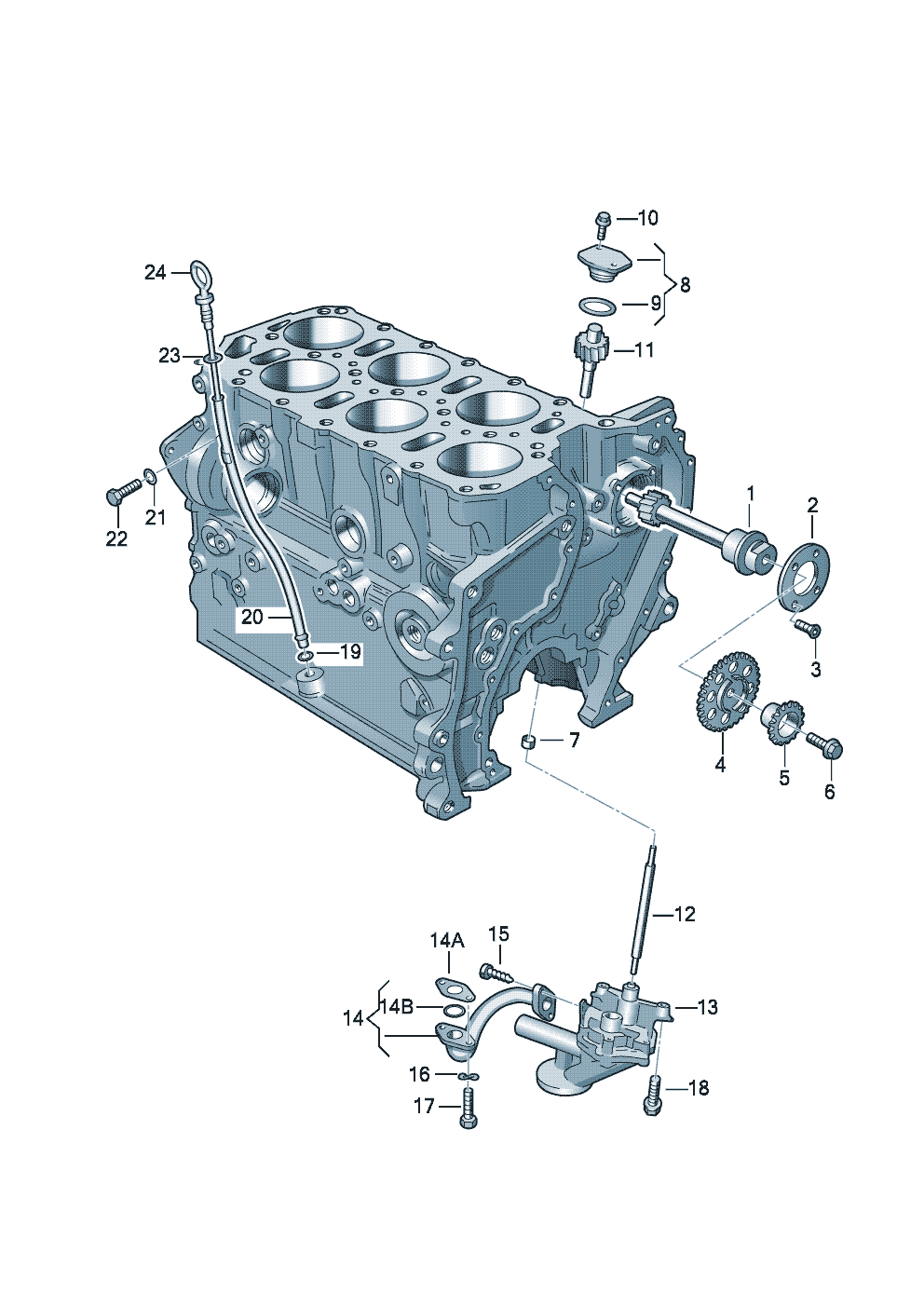

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Oil pump. oil filter. Oil dipstick

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 37 Primary OEM: N 011 524 26, 021 115 203, 022 115 629 K

2006 oil pump oil filter oil dipstick for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 115070 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 36 OEM part numbers across 37 catalogued positions including N 011 524 26, 021 115 203 and 022 115 629 K. Parts on this plate carry the engine codes BDE, BFH and BML. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 36 OEM part numbers across 37 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	oil pumptube for oil dipstick Oil dipstick 2.8 Ltr.3.2 Ltr. 6-cylinder+BDEBFH,BML 2.8 Ltr.3.2 Ltr. BML	—
-	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 26
(14)	suction line	021 115 203
(20)	tube for oil dipstick BDE BDE	022 115 629 K
(24)	Oil dipstick BML,BFH BMLBFH	022 115 607 AA
(24)	Oil dipstick BFH BFH	022 115 607 AA
1	Intermediate shaft Z=17 Z=17	021 115 017
10	hexagon head bolt (combi) M 6 X 16 M 6 X 16	N 100 829 11
10	hexagon head bolt (combi) M 6 X 16 M 6 X 16	N 100 829 07
10	bolt, hex. hd. (combi.)self-locking M 6 X 16 M 6 X 16	N 100 829 12
11	shaft with gear	021 115 116 A
12	Follower	021 115 279
13	oil pump	021 115 105 B
14	suction line	021 115 251 A
14A	Seal M >> BDE 008 380 M >> BFH 004 300*	021 115 257
14B	seal ring M BDE 008 381>>M BFH 004 301>>* BML BML	021 115 444 B
15	Hexagon socket headbolt (combi) M 6 X 20 M 6 X 20	N 101 244 08
15	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 102 278 03
17	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 102 278 03
17	Hexagon socket headbolt (combi) M 6 X 20 M 6 X 20	N 101 244 08
18	Socket head bolt with hexagonsocket head (combination) M 8 X 30 M 8 X 30	N 903 559 02
18	Socket head bolt with hexagonsocket head (combination) M 8 X 30 M 8 X 30	N 903 559 03
19	O-ring 9,5 X 2,5 9,5 X 2,5	N 900 672 02
2	guide ring F >> 1 J-5-200 000*	021 115 033
20	tube for oil dipstick BFH,BML BFHBML	022 115 629 P
22	Socket head bolt withhexagon socket head also use: M 6 X 15 N 011 524 26 M 6 X 15 N 011 524 26	N 014 702 10
22	Socket head bolt with hexagonsocket head (combination) M 6 X 15 M 6 X 15	N 101 148 02
23	O-ring 5 X 1,9 5 X 1,9	N 908 138 02
24	Oil dipstick BDE BDE	022 115 607 D
24	Oil dipstick BFH BFH	022 115 607 R
3	countersunk bolt F >> 1 J-5-200 000* M 6 X 10 M 6 X 10	N 033 166 3
4	Chain sprocket Z=32 Z=32	021 109 569
5	Chain sprocket Z=18 Z=18	066 109 570
6	Hexagon bolt M 12 X 1,5 X 40 M 12 X 1,5 X 40	N 102 038 03
7	bush	021 115 112 B
8	Cover	021 115 185 B
9	O-ring 36,2 X 2,62 36,2 X 2,62	N 905 315 01

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Engine codes on this plate: BDE, BFH, BML
Factory group: 01 Engine
Factory subgroup: 115070
