2006 parking aid — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Parking aid

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 25 Primary OEM: 059 919 501 A, 06A 919 501, 06A 919 501 A

2006 parking aid for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 919040 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 24 OEM part numbers across 25 catalogued positions including 059 919 501 A, 06A 919 501 and 06A 919 501 A. Parts on this plate carry the engine codes AEH, AGR, AGU, AHF, AHW, AJM, AKL and ALH. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 24 OEM part numbers across 25 numbered positions.

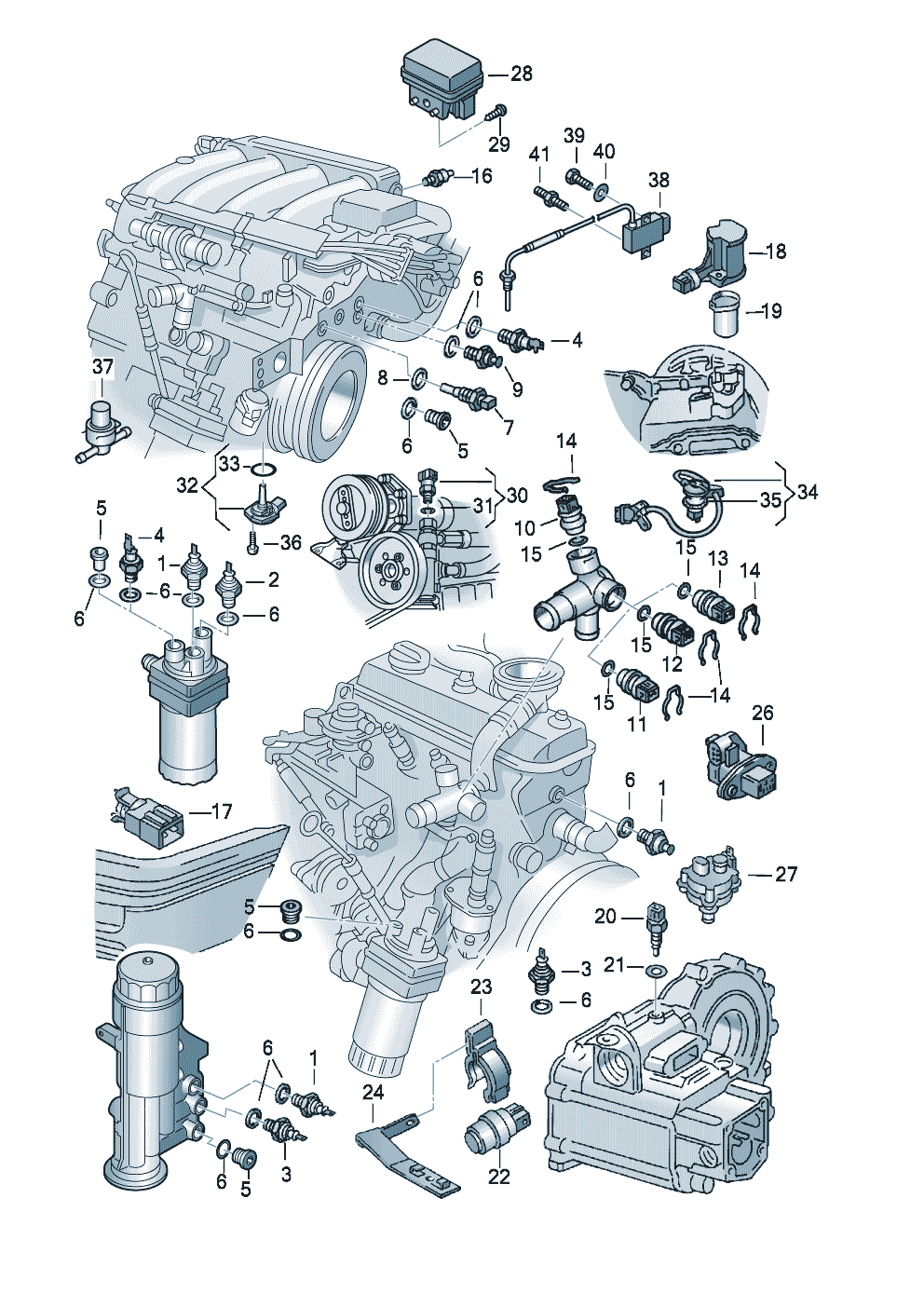

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	switches and senders on engineand gearbox 4-cylinder	—
(10)	Double temperature sensor 20 MM 20 MM	059 919 501 A
(12)	Coolant temperature sender Cooler for coolant 20 MM BFQ,BAD 20 MM BFQBAD	06A 919 501
(12)	Coolant temperature sender Cooler for coolant BFQ,BAD BFQBAD	06A 919 501 A
(12)	thermal switch 119 C 20 MM Air cond.+AUM,AGU,AUQ 119 C 20 MM AUMAGUAUQ	191 919 369 A
(13)	Bungs	357 121 140
(2)	Oil pressure switch 0,3-0,6 BARM 10 X 1 BAD,AHW,AZD,BCB,BCA 0,3-0,6 BARM 10 X 1 BADAHWAZDBCBBCA	036 919 081 D
(2)	Oil pressure switch 0,3-0,6 BARM 10 X 1 BAD,AHW,AZD,BCB,BCA 0,3-0,6 BARM 10 X 1 BADAHWAZDBCBBCA	036 919 081 A
(2)	Oil pressure switch 1,2-1,6 BARM 10 X 1 AZJ,BEH,APK,AGU,AQY,AZH,BFQ,AUM,AUQ,AZG,AKL,AEH 1,2-1,6 BARM 10 X 1 AZJBEHAPKAGUAQYAZHBFQAUMAUQAZGAKLAEH	06A 919 081 J
(2)	Oil pressure switch 1,2-1,6 BARM 10 X 1 AZJ,BEH,APK,AGU,AQY,AZH,BFQ,AUM,AUQ,AZG,AKL,AEH 1,2-1,6 BARM 10 X 1 AZJBEHAPKAGUAQYAZHBFQAUMAUQAZGAKLAEH	06A 919 081 D
(2)	Oil pressure switch 0,55-0,85 BARM 10 X 1 AGR,AQM,ALH,AHF,ASV,AXR,ATD,ASZ,ARL,AJM,AUY 0,55-0,85 BARM 10 X 1 AGRAQMALHAHFASVAXRATDASZARLAJMAUY	038 919 081 K
(30)	Oil pressure switchfor models with powersteering 28/40 BARM 10 X 1,0 28/40 BARM 10 X 1,0	1J0 919 081
14	retaining spring	032 121 142
15	O-ring 19,6 X 3,65 19,6 X 3,65	N 903 168 01
28	switch - altitude corrector AUQ,AGU AUQAGU	853 919 562
29	oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0	N 013 969 4
29	oval head panel screw 4,8 X 16 4,8 X 16	N 013 969 21
31	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
32	oil level sensor	1J0 907 660 B
33	seal ring	038 103 196
36	Socket head bolt withinner multipoint head M 6 X 28 M 6 X 28	N 104 720 01
36	Socket head collared bolt withinner multipoint head M 6 X 28 M 6 X 28	N 910 652 01
5	sealing plug M 10 X 1 M 10 X 1	N 016 024 3
5	sealing plug M 10 X 1 M 10 X 1	N 016 024 1
6	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
