2006 secondary air pump — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Secondary air pump

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 36 Primary OEM: 06A 959 253 B, 06A 959 253 E, N 100 922 01

2006 secondary air pump for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 131005 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 33 OEM part numbers across 36 catalogued positions including 06A 959 253 B, 06A 959 253 E and N 100 922 01. Parts on this plate carry the engine codes AQY, AZJ, BEH and BFQ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 33 OEM part numbers across 36 numbered positions.

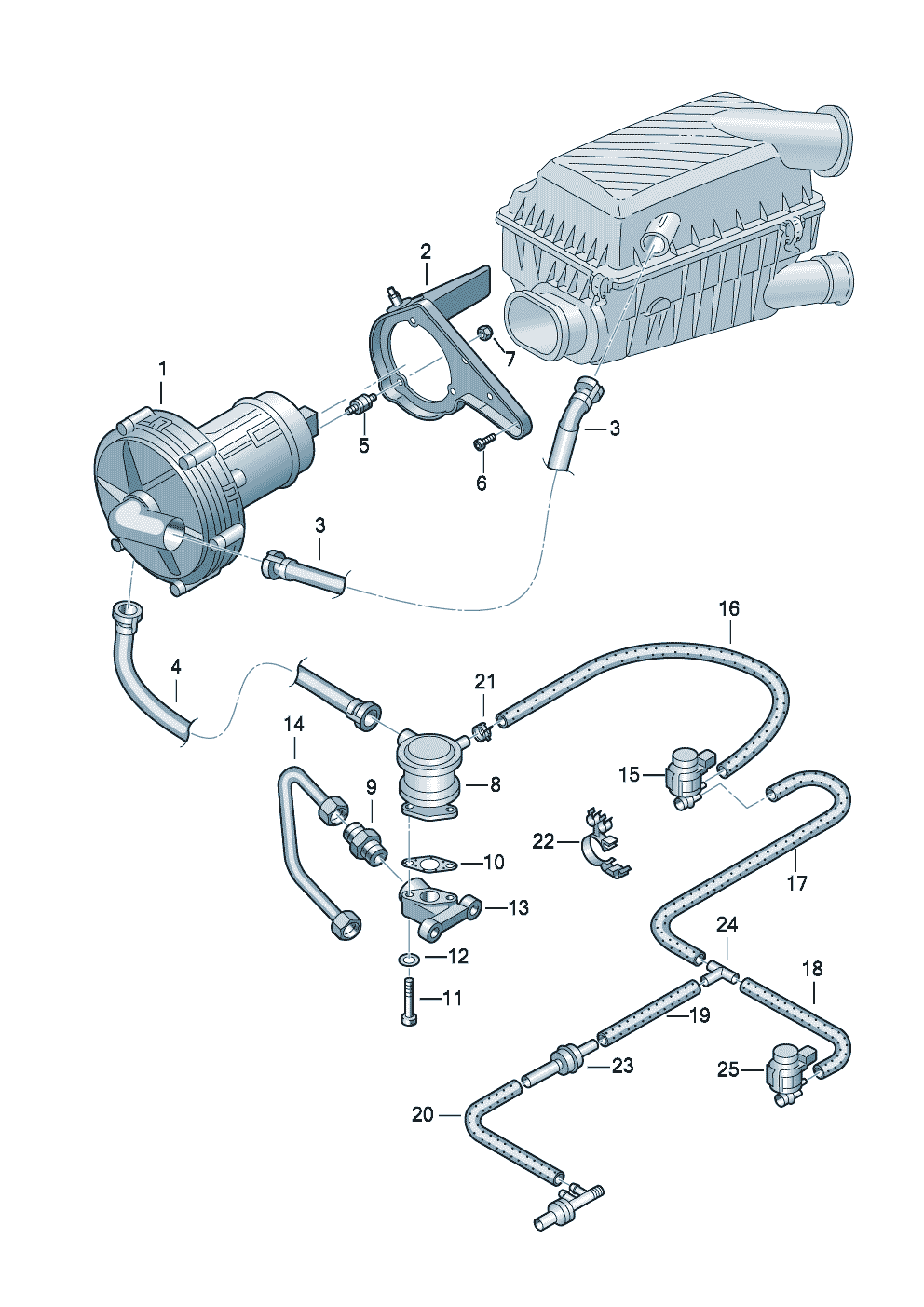

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Secondary air pump 1.6/2.0 Ltr. 4-cylinder+AQY,AZJ,BFQ,natural gasoperation:BEH 1.6/2.0 Ltr. AQYAZJBFQ	—
(1)	Secondary air pump	06A 959 253 B
(1)	Secondary air pump	06A 959 253 E
(11)	Socket head bolt with hexagonsocket head (combination) M 6 X 40 AZJ,BEH,BFQ M 6 X 40 AZJBEHBFQ	N 100 922 01
(13)	see illustration: 133-015 BFQ 133-015 BFQ	—
(14)	Connecting pipe AZJ,BEH AZJBEH	06A 131 581 C
(14)	Connecting pipe BFQ BFQ	06A 131 581 A
(2)	Retainer for pump F >>1 J-4 D 030 000F >> 1 J-4 U 002 600F >> 1 J-4 W 100 000 AZJBFQ	06A 906 615 F
(2)	Retainer for pump BEH BEH	06A 906 615 H
(2)	Retainer for pump F 1 J-4 D 030 001>>F 1 J-4 U 002 601>>F 1 J-4 W 100 001>>* BFQ BFQ	06A 906 615 L
(2)	Retainer for pump AQY AQY	06A 131 085 B
(3)	Intake manifold BEH BEH	1J0 131 128 AG
(4)	Connecting hose AZJ AZJ	06A 131 127 N
(4)	Connecting hose BEH BEH	06A 131 127 Q
(4)	Connecting hose BFQ BFQ	06A 131 127 L
(5)	Stop buffer	06A 133 567 A
(6)	Socket head bolt withinner multipoint head only for:F >> 1 J-4 D 030 000F >> 1 J-4 U 002 600F >> 1 J-4 D 100 000* M 8 X 1406 A 133 206 N BFQ M 8 X 1406 A 133 206 N BFQ	N 903 086 05
(6)	Socket head bolt withinner multipoint head only for:F >> 1 J-4 D 030 000F >> 1 J-4 U 002 600F >> 1 J-4 D 100 000* M 8 X 1406 A 133 206 N BFQ M 8 X 1406 A 133 206 N BFQ	N 903 086 07
(6)	Hexagon socket flathead bolt only for:F 1 J-4 D 030 001>>F 1 J-4 U 002 601>>F 1 J-4 W 100 001>>* 8 X 1406 A 133 206 BB BFQ 8 X 1406 A 133 206 BB BFQ	N 910 829 01
(8)	Secondary air valve AQY,AZJ,BEH AQYAZJBEH	06A 131 351
(8)	Secondary air valve BFQ BFQ	06A 131 351 B
(8)	Secondary air valve BFQ BFQ	06A 131 351 F
(8)	Secondary air valve AQY,AZJ,BEH AQYAZJBEH	06A 131 351 D
10	Seal	06A 131 120 A
11	Socket head bolt withhexagon socket head M 6 X 35 AQY M 6 X 35 AQY	N 014 759 1
12	Washer 8 X 16 X 2 8 X 16 X 2	N 015 278 2
13	see illustration: 133-027 AQY 133-027 AQY	—
14	Connecting pipe AQY AQY	037 131 581
3	Intake manifold AQY,AZJ,BFQ AQYAZJBFQ	1J0 131 128
4	Connecting hose AQY AQY	06A 131 127 F
6	Socket head bolt withhex. socket head, self-locking M 8 X 20 AZJ,BEH M 8 X 20 AZJBEH	N 014 710 15
6	Socket head bolt with hexagonsocket head (combination) M 8 X 18 AQY M 8 X 18 AQY	N 902 428 04
6	Socket head bolt withhexagon socket head M 8 X 20 AZJ,BEH M 8 X 20 AZJBEH	N 014 710 7
7	Hexagon collar nut M 6 M 6	N 015 082 5
7	Hexagon collar nut M 6 M 6	N 015 082 13
9	threaded union	037 131 819

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Engine codes on this plate: AQY, AZJ, BEH, BFQ
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 131005
