Alternator versions — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Alternator versions

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 23 Primary OEM: 032 145 167 H, 032 145 167 N, 032 145 299 A

Alternator versions for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 903030 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 22 OEM part numbers across 23 catalogued positions including 032 145 167 H, 032 145 167 N and 032 145 299 A. Parts on this plate carry the engine codes AHW, BAD, BCA and BCB. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 22 OEM part numbers across 23 numbered positions.

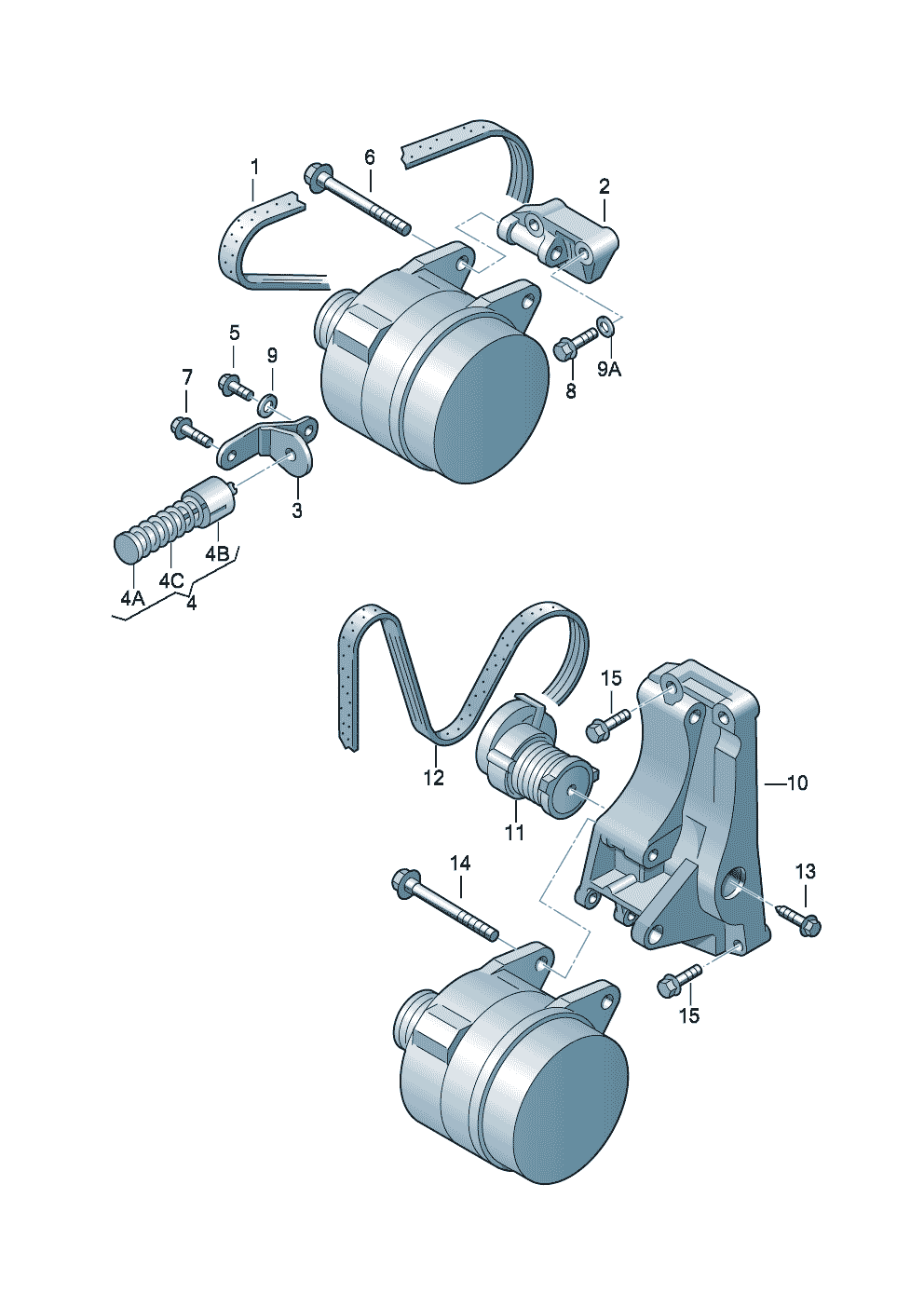

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	connecting and mounting partsfor alternator Poly-V-belt 1.4/1.6 ltr. AHW,BCA,BCB,BAD 1.4/1.6 ltr. AHWBCABCBBAD	—
(10)	bracket for alternator For vehicles with airconditioning + power steering	032 145 167 H
(10)	bracket for alternatorfor vehicles with air condit. BAD BAD	032 145 167 N
(11)	Belt tensioner damper For vehicles with airconditioning + power steering	032 145 299 A
(12)	Poly-V-beltfor vehicles with air condit. 21,16 X 1540 MM BAD 21,16 X 1540 MM BAD	032 145 933 AB
(12)	Poly-V-belt For vehicles with airconditioning + power steering 21,18 X 1548 MM 21,18 X 1548 MM	036 145 933 H
(13)	Hexagon bolt For vehicles with airconditioning + power steering M 10 X 65 X 45 M 10 X 65 X 45	N 907 169 01
(13)	Hex collared boltfor vehicles with no airconditioning system M 8 X 40 BAD M 8 X 40 BAD	N 019 531 3
(13)	Hex collared boltfor vehicles with no airconditioning system M 8 X 40 BAD M 8 X 40 BAD	N 019 531 5
(14)	Hex collared bolt M 8 X 90 M 8 X 90	N 106 100 01
(14)	Hex collared bolt AM 8 X 90 W AM 8 X 90 W	N 105 266 02
(15)	Hexagon bolt For vehicles with airconditioning + power steering M 10 X 80 B M 10 X 80 B	N 102 204 04
(15)	Hexagon bolt For vehicles with airconditioning + power steering M 10 X 80 M 10 X 80	N 102 204 02
10	bracket for alternator	030 145 167 D
11	Belt tensioner damper	030 145 299 F
12	Poly-V-belt 21,36 X 1076 MM 21,36 X 1076 MM	036 145 933 AJ
12	Poly-V-belt 21,18 X 1078 MM 21,18 X 1078 MM	036 145 933 J
13	Hex collared bolt M 8 X 35 M 8 X 35	N 101 953 01
14	Hex collared bolt M 8 X 90 M 8 X 90	N 105 266 01
15	hexagon socket head bolt withshoulder M 10 X 50-V-SW 16 M 10 X 50-V-SW 16	N 908 704 01
15	hexagon socket head bolt withshoulder M 10 X 50 M 10 X 50	N 910 317 02
16	hexagon socket head bolt withshoulder M 10 X 50 M 10 X 50	N 910 317 02
16	hexagon socket head bolt withshoulder AM 10 X 50-SW 16 AM 10 X 50-SW 16	N 908 704 01

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Engine codes on this plate: AHW, BAD, BCA, BCB
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 903030
