Alternator versions — Mk4 Golf Engine (2002)

Factory title: Volkswagen Golf/Golf R32 (2002) - Alternator versions

Generation: Mk4 2002 (RDW) Group: Engine Rebuild step 1 Parts: 21 Primary OEM: N 105 266 02, 038 903 315 F, 038 903 315 P

Alternator versions for the Volkswagen Golf Mk4 (2002): factory exploded diagram 903045 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 20 OEM part numbers across 21 catalogued positions including N 105 266 02, 038 903 315 F and 038 903 315 P. Parts on this plate carry the engine codes ATD and AUY. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 20 OEM part numbers across 21 numbered positions.

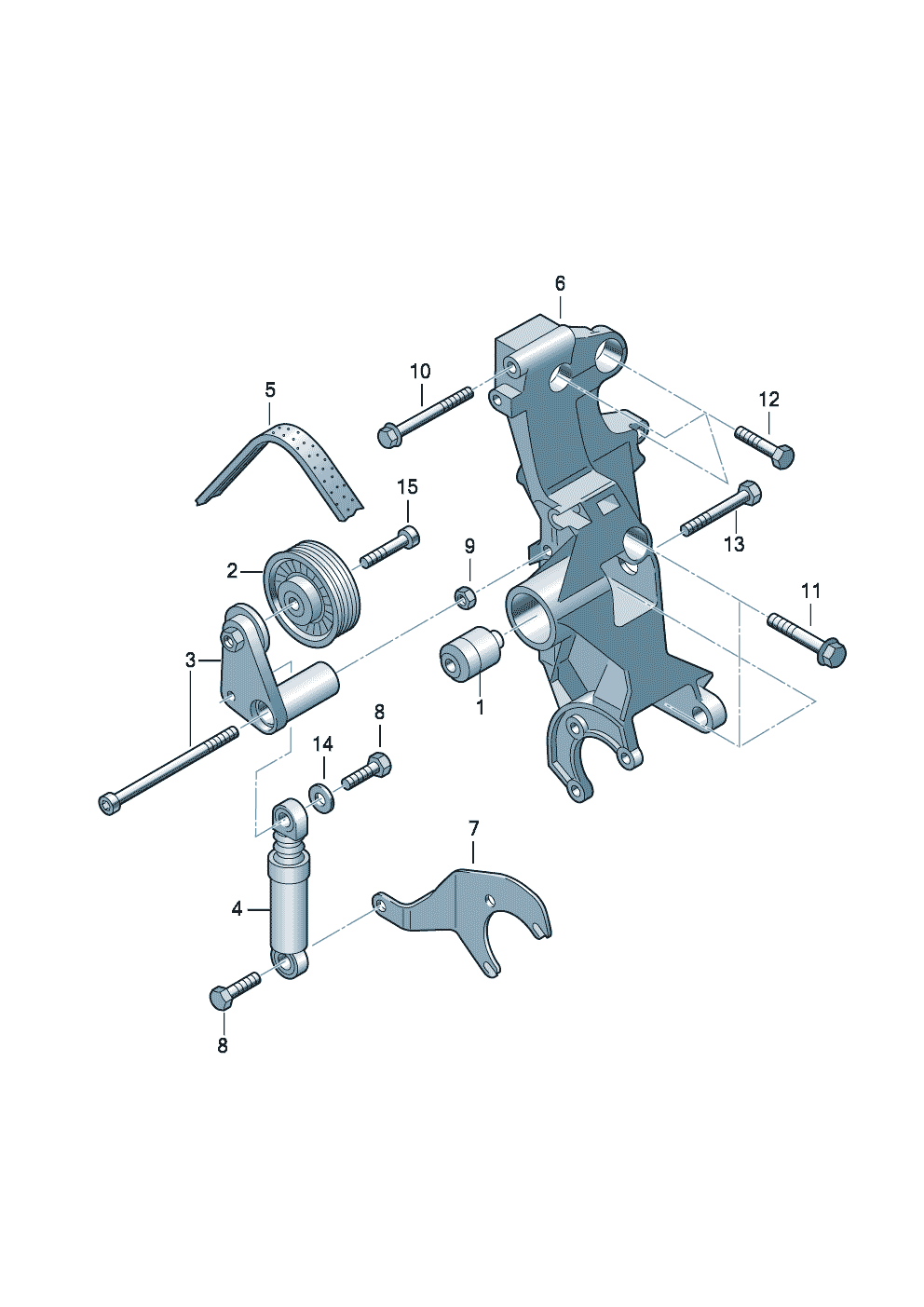

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
connecting and mounting partsfor alternator Poly-V-belt 1.9 ltr. Diesel eng.+ATD,AUY
1.9 ltr.
ATDAUY
—
(10)
Hex collared bolt AM 8 X 90 W
AM 8 X 90 W
 N 105 266 02
(2)
tensioner
 038 903 315 F
(4)
tensioner with damper
 038 903 315 P
(5)
Double poly V-beltfor vehicles with air condit. 21,18 X 1195 MM
21,18 X 1195 MM
 06A 260 849 C
(5)
Double poly V-beltfor vehicles with air condit. 21,34 X 1195 MM
21,34 X 1195 MM
 06A 260 849 B
1
Mounting Visco fan
 058 115 136 A
10
Hex collared bolt M 8 X 90
M 8 X 90
 N 105 266 01
11
Hex collared bolt M 10 X 65
M 10 X 65
 N 101 973 01
12
Hex collared bolt AM 10 X 45-SW 16
AM 10 X 45-SW 16
 N 102 416 03
13
Socket head bolt withhexagon socket head M 10 X 1 X 65
M 10 X 1 X 65
 N 103 026 01
14
Washer 8,4 X 21 X 2
8,4 X 21 X 2
 N 900 577 03
15
Hexagon socket headbolt M 8 X 38-D
M 8 X 38-D
 N 903 662 01
2
idler pulley
 038 145 278
3
BRACKET FOR idler pulley Belt tensioner damper use if required: 038 145 299 A
038 145 299 A
 038 145 283 A
4
Belt tensioner damper
 038 145 299 A
5
Poly-V-belt 21,18 X 1120 MM
21,18 X 1120 MM
 06A 145 933 D
6
Bracket for alternator,air conditionercompressor and hydraulicpump.
 045 903 141 C
7
Retaining plate Belt tensioner damper
 038 903 145
8
Hexagon bolt M 8 X 30
M 8 X 30
 N 010 244 16
9
Hexagon collar nut M 8
M 8
 N 015 083 11
