Cylinder block with pistons oil sump — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Cylinder block with pistons. oil sump

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 47 Primary OEM: 038 103 101 H, 038 103 101 G, 038 103 101 M

Cylinder block with pistons oil sump for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 103015 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 40 OEM part numbers across 47 catalogued positions including 038 103 101 H, 038 103 101 G and 038 103 101 M. Parts on this plate carry the engine codes AGR, AHF, ALH, AQM and ASV. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 40 OEM part numbers across 47 numbered positions.

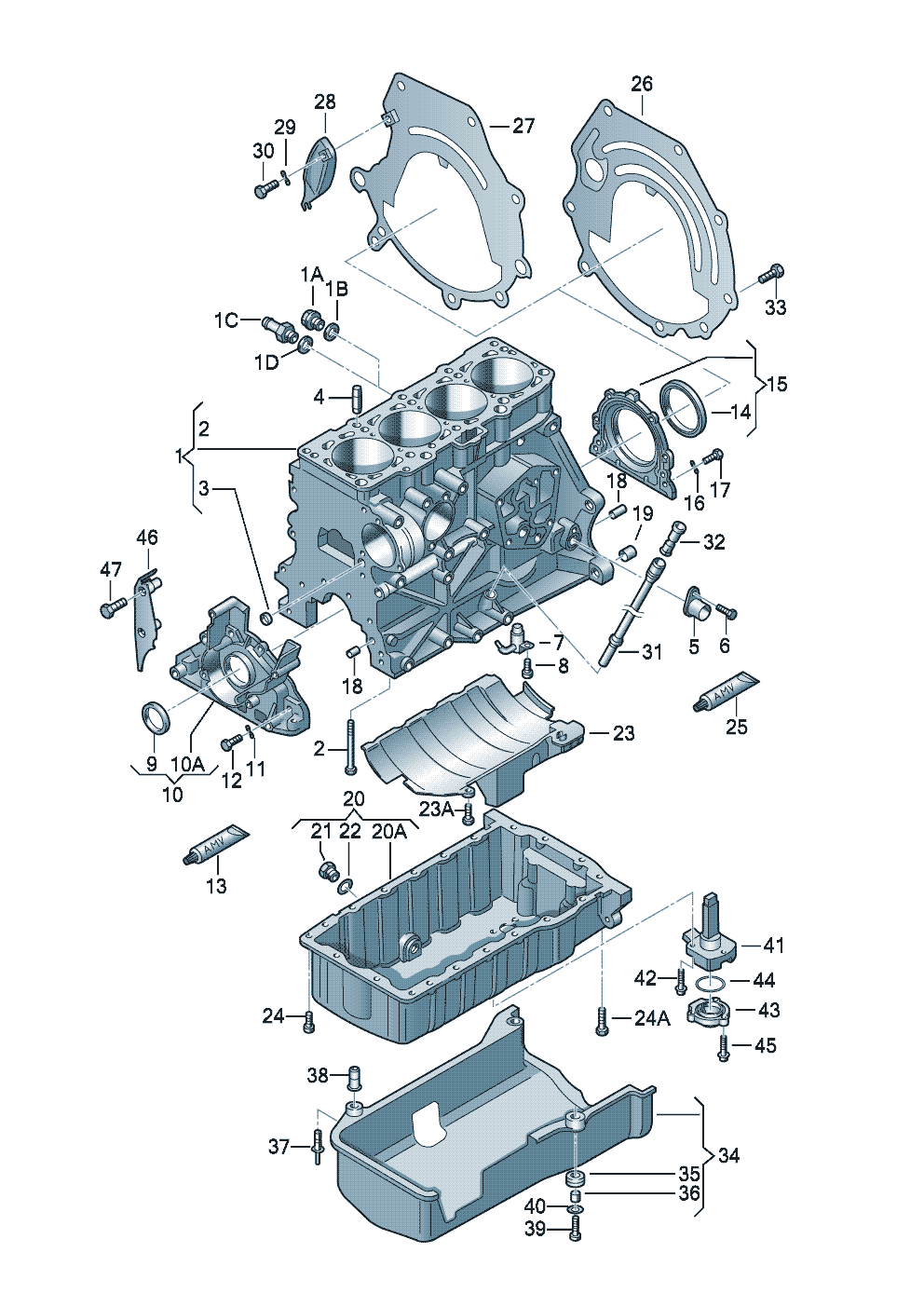

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	cylinder block with pistonsoil sump 1.9 ltr. Diesel eng.+AQM,AGR,ALH,AHF,ASV 1.9 ltr. AQMAGRALHAHFASV	—
	cylinder block with pistonsoil sump diesel eng.	—
(1)	cylinder block with pistons AQM AQM	038 103 101 H
(1)	cylinder block with pistons ALH ALH	038 103 101 G
(1)	cylinder block with pistons ASV ASV	038 103 101 M
(31)	tube for oil dipstick	06D 103 634
1	cylinder block with pistons AGR,AHF AGRAHF	038 103 101 E
10	Sealing flange	038 103 151 H
12	hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5	N 909 450 01
12	hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5	N 909 450 02
13	Silicon sealant Sealing flange	D 176 501 A1
15	Sealing flange	06A 103 171 A
17	hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5	N 909 450 01
17	hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5	N 909 450 02
18	Cylinder pin 8 X 14 8 X 14	N 043 207 2
19	dowel sleeve 16 X 13,5 16 X 13,5	022 103 139
19	dowel sleeve 16 X 13,5 16 X 13,5	012 301 153 B
1A	sealing plug M 18 X 1,5 AQM M 18 X 1,5 AQM	N 016 161 6
1B	seal ring 18 X 22 AQM 18 X 22 AQM	N 013 832 6
2	Hexagon bolt M 10 X 80 M 10 X 80	N 901 300 01
20	Engine oil sump	038 103 601 NA
20A	Engine oil sump with openingfor oil level sensor	038 103 603 N
21	Oil drain plug withseal M 14 X 1,5 X 22 M 14 X 1,5 X 22	N 908 132 01
21	Seal bolt with sealingring M 14 X 1,5 X 22 M 14 X 1,5 X 22	N 908 132 02
22	Discont. / replace: N 908 132 02 N 908 132 02	—
23	Surge lock	06B 103 623 C
23	Surge lock	06B 103 623 P
24	hexagon socket head bolt withshoulder M 7 X 28 M 7 X 28	N 907 356 03
24	hexagon socket head bolt withshoulder M 7 X 28 M 7 X 28	N 907 356 04
25	Silicon sealantoil sump	D 176 501 A1
26	Cover plate automatic	038 103 647 A
27	Cover plate manualgearbox	06A 103 645
28	cover plate manualgearbox	068 103 645 M
28	cover plate manualgearbox	038 103 648 H
29	Spring washer 6 manualgearbox 6	N 012 226 5
3	End cap A 14 A 14	N 011 907 7
3	End cap 14 14	N 011 907 10
30	Hexagon bolt M 6 X 8 manualgearbox M 6 X 8	N 010 208 5
31	tube for oil dipstick	06A 103 634
31	tube for oil dipstick	06D 103 634 E
32	guide funnel see illustration: 115-010 115-010	—
33	transmission securing parts see illustration: 300-072 300-072	—
4	dowel sleeve 14,15 X 21 14,15 X 21	028 103 039 A
41	oil level sensor see illustration: 919-040 919-040	—
5	impulse sender see illustration: 906-000 906-000	—
7	oil spray jet	028 103 157 A
9	Shaft oil seal 35 X 48 X 10 35 X 48 X 10	038 103 085 E
