Cylinder block with pistons oil sump — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Cylinder block with pistons. oil sump

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 57 Primary OEM: 038 103 265 FX, 038 103 265 KX, 038 103 267 X

Cylinder block with pistons oil sump for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 103057 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 49 OEM part numbers across 57 catalogued positions including 038 103 265 FX, 038 103 265 KX and 038 103 267 X. Parts on this plate carry the engine codes ARL, ASZ, ATD and AXR. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 49 OEM part numbers across 57 numbered positions.

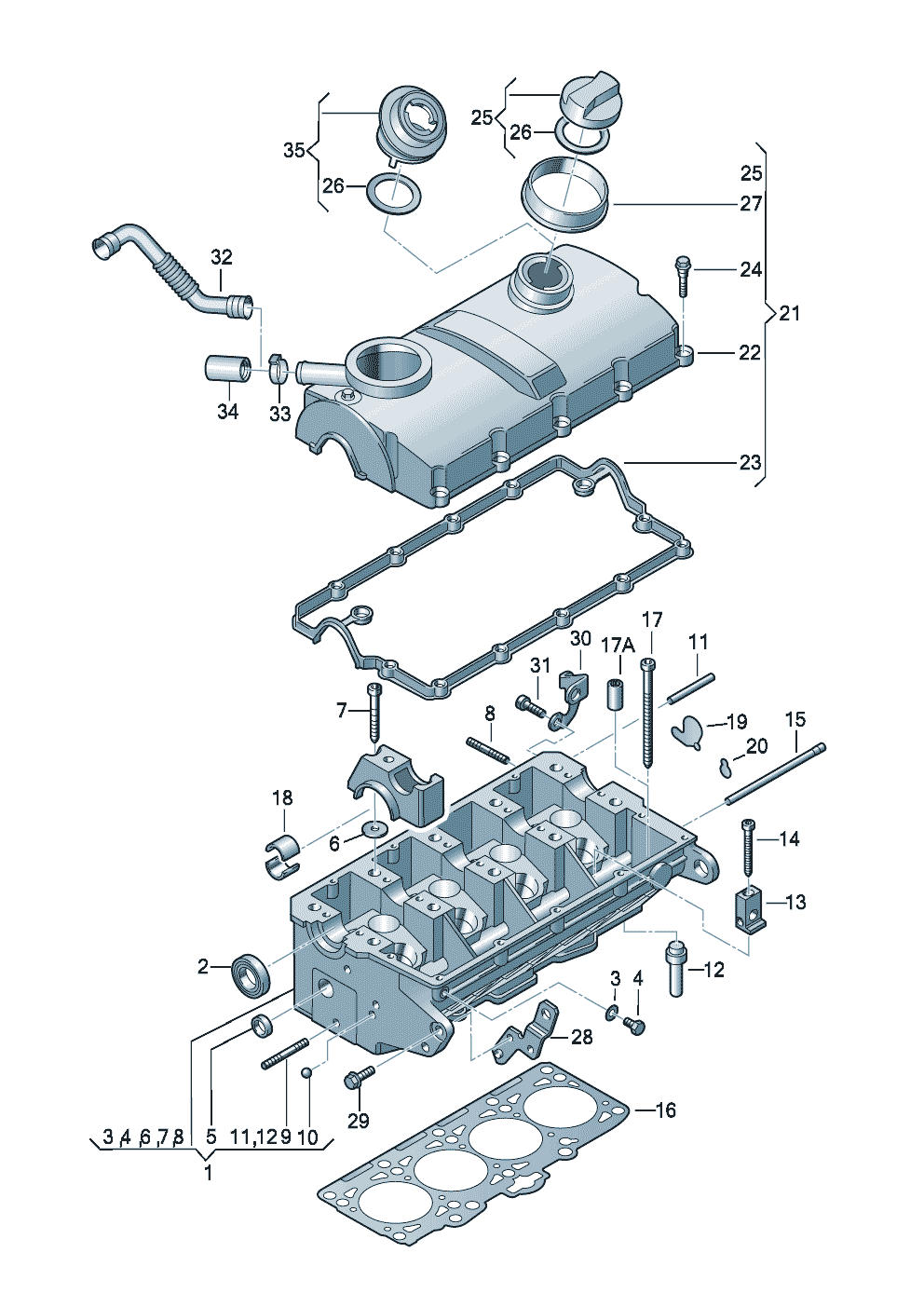

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Cylinder headcylinder head cover 1.9 ltr. Diesel eng.+ATD,AXR,ASZ,ARL
1.9 ltr.
ATDAXRASZARL
—
Cylinder headcylinder head cover Diesel eng.+Unit inject.
 —
(1)
Cylinder head with valves,camshaft and injectors(unit injectors) ATD
ATD
038 103 265 FX
(1)
Cylinder head with valves,camshaft and injectors(unit injectors) AXR
AXR
038 103 265 KX
(1)
Cylinder head with valves andcamshaft (without pump/nozzle) ATD,ASZ,ARL
ATDASZARL
038 103 267 X
(1)
Cylinder head with valves andcamshaft (without pump/nozzle) AXR
AXR
038 103 267 AX
(1)
Cylinder head with valves,camshaft and injectors(unit injectors) ASZ,ARL
ASZARL
038 103 265 GX
(16)
Cylinder head gasket 1,57 MM
1,57 MM
 038 103 383 DF
(16)
Cylinder head gasket 1,61 MM
1,61 MM
 038 103 383 BN
(16)
Cylinder head gasket 1,65 MM
1,65 MM
 038 103 383 DG
(16)
Cylinder head gasket 1,53 MM
1,53 MM
 038 103 383 BM
(17)
Socket head bolt M 12 X 166 ARL
M 12 X 166
ARL
038 103 384 C
(21)
cylinder head cover
 038 103 469 AH
(25)
End cap
 06B 103 485 B
(28)
Bracket ATD,AXR,ASZ
ATDAXRASZ
038 103 941 L
(32)
Breather line AXR,ASZ,ARL
AXRASZARL
038 103 493 AC
(5)
End cap 25
25
 N 011 919 1
1
Cylinder head
 03G 103 351 C
1
Cylinder head
 038 103 351 D
10
ball 8
8
 N 025 666 3
11
Pipe union
 044 103 499 B
13
tensioning plate see illustration: 130-030
130-030
 —
14
Socket head bolt M 6 X 64
M 6 X 64
 038 103 385 A
15
emulsion tube
 038 130 085
16
Cylinder head gasket 1,45 MM
1,45 MM
 038 103 383 BL
16
Cylinder head gasket 1,49 MM
1,49 MM
 038 103 383 DE
17
Socket head bolt M 12 X 166 ATD,AXR,ASZ
M 12 X 166
ATDAXRASZ
038 103 384
18
bearing shell see illustration: 109-035
109-035
 —
19
Seal see illustration: 145-005
145-005
 —
2
shaft oil seal(shaft rotation: to right) 47 X 10 X 32
47 X 10 X 32
 038 103 085 C
20
Seal see illustration: 145-005
145-005
 —
21
cylinder head cover
 038 103 469 S
21
cylinder head cover
 038 103 469 AD
23
Seal only to be used for: marked with: 038 103 469 AD 038 103 475 Q
038 103 469 AD 038 103 475 Q
 038 103 483 D
24
Hexagon collared bolt withguide sleeve M 6
M 6
 038 128 773
25
End cap
 06A 103 485 F
25
End cap
 06B 103 485 C
26
Seal
 06A 103 483 D
27
seal ring see illustration: 103-075
103-075
 —
28
Retaining bracket ARL
ARL
038 103 941 E
29
Hexagon bolt M 8 X 28
M 8 X 28
 N 010 233 6
3
seal ring 10 X 13,5
10 X 13,5
 N 013 811 5
30
Suspension lug
 038 103 390
31
Socket head bolt withinner multipoint head M 8 X 22
M 8 X 22
 N 102 394 02
32
Breather line ATD
ATD
038 103 493 AB
33
Clamp 16-28 X 9 X 0,5
16-28 X 9 X 0,5
 N 905 618 01
35
oil filler support see illustration, item: 103-075,32
103-075,32
 —
4
sealing plug M 10 X 1
M 10 X 1
 N 016 024 3
4
sealing plug M 10 X 1
M 10 X 1
 N 016 024 1
5
End cap 24
24
 N 011 914 8
5
End cap 24
24
 N 011 914 2
5
End cap 24
24
 N 011 914 10
6
Washer 12,5 X 23 X 4,5
12,5 X 23 X 4,5
 N 901 157 01
6
Washer 12,5 X 23,5 X 4,5
12,5 X 23,5 X 4,5
 N 901 157 02
7
Locating bolt M 6 X 54
M 6 X 54
 038 103 714
8
Threaded pin M 8 X 35
M 8 X 35
 N 901 889 02
9
Threaded pin M 10 XM 8 X 73
M 10 XM 8 X 73
 N 909 055 02

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk4
Model years
2003 - 2004
Generation region
MEX, RDW
Generation code
405
Engine codes on this plate
ARL, ASZ, ATD, AXR
Factory group
01 Engine
Factory subgroup
103057

Related factory diagrams

Other published engine plates for the Mk4 Golf in this catalogue.

The complete Mk4 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the cylinder block with pistons oil sump diagram for the Mk4 Golf?
This diagram lists 49 OEM part numbers for the Mk4 Golf. The first three are 038 103 265 FX, 038 103 265 KX and 038 103 267 X.
Which Mk4 Golf years and engines does this diagram cover?
This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The parts on it carry the engine codes ARL, ASZ, ATD and AXR.
Where is the complete Mk4 Golf factory parts catalogue?
The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.
