Cylinder block with pistons oil sump — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Cylinder block with pistons. oil sump

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 65 Primary OEM: 06A 103 660 D, 06B 103 101 E, 06B 103 154

Cylinder block with pistons oil sump for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 103005 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 58 OEM part numbers across 65 catalogued positions including 06A 103 660 D, 06B 103 101 E and 06B 103 154. Parts on this plate carry the engine codes AEH, AKL and BFQ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 58 OEM part numbers across 65 numbered positions.

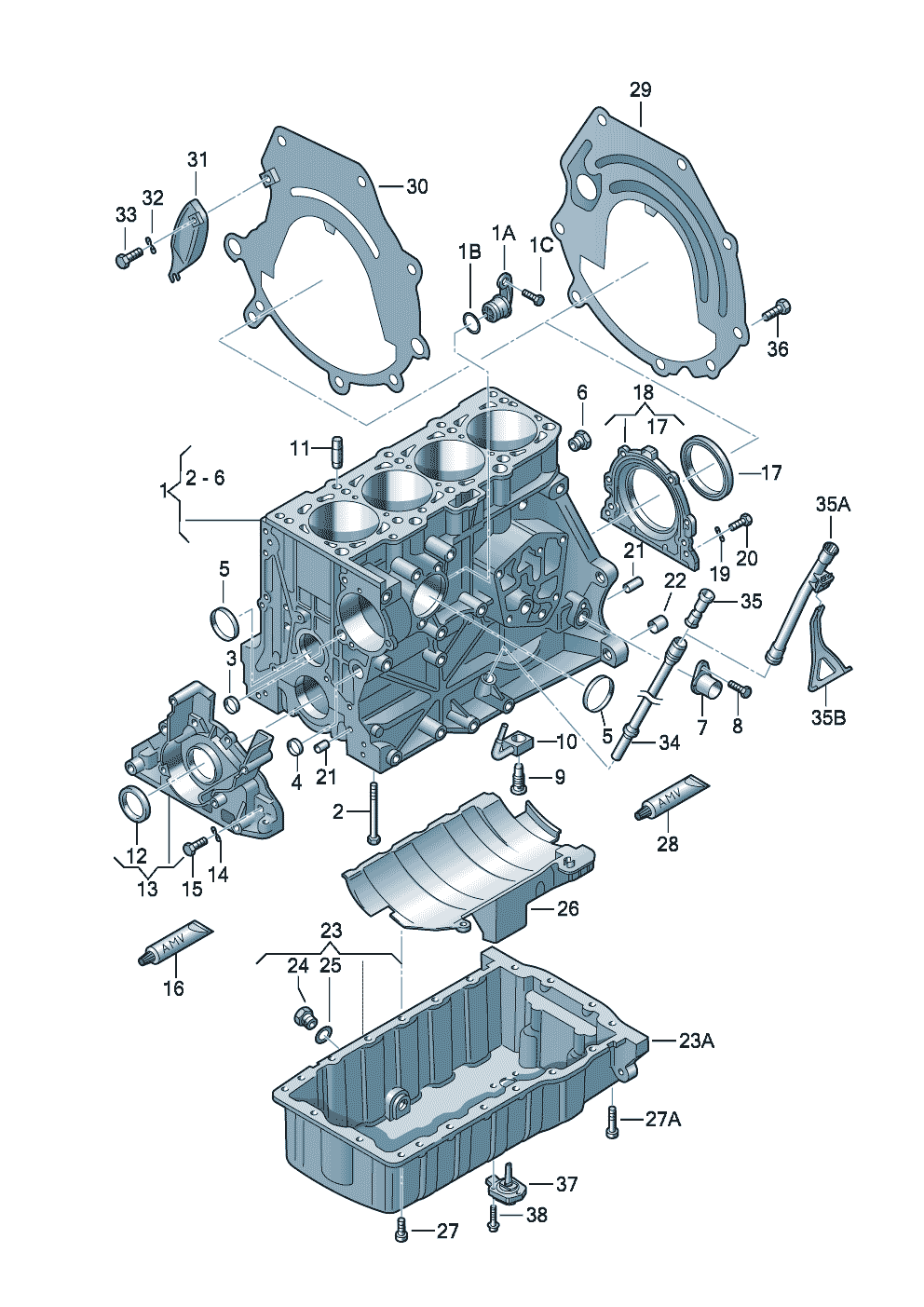

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
cylinder block with pistonsoil sump 1.6 ltr. AEH,AKL,BFQ
1.6 ltr.
AEHAKLBFQ
—
cylinder block with pistonsoil sump 4-cylinder
 —
-
cover for oil sump "ZA."+AEH,AKL
AEHAKL
06A 103 660 D
(1)
cylinder block with pistons BFQ
BFQ
06B 103 101 E
(10)
oil spray jet BFQ
BFQ
06B 103 154
(10)
oil spray jet F 1 J-4 D 130 001>>*F 1 J-4 U 011 001>>*F 1 J-4 W 155 001>>* AEH,AKL
AEHAKL
06B 103 154
(20)
grub screw F 1 J-3-450 001>>* only to be used for: M 7 X 1406 B 103 171 E 06 B 103 171 J
M 7 X 1406 B 103 171 E 06 B 103 171 J
 N 911 485 01
(20)
grub screw F 1 J-3-450 001>>* only to be used for: M 7 X 1406 B 103 171 E
M 7 X 1406 B 103 171 E
 06B 103 109 A
(21)
Cylinder pin F 1 J-3-450 001>>* 8 X 14
8 X 14
 N 043 207 2
(21)
Cylinder pin F 1 J-3-450 001>>* 8 X 14
8 X 14
 N 043 207 2
(34)
tube for oil dipstick
 06D 103 634
(35)
guide funnel BFQ
BFQ
06A 103 663 C
(9)
Discont. / replace: 06 B 103 154 BFQ
06 B 103 154
BFQ
—
1
cylinder block with pistons AEH,AKL
AEHAKL
06A 103 101 G
10
oil spray jet F >> 1 J-4 D 130 000*F >> 1 J-4 U 011 000*F >> 1 J-4 W 155 000* AEH,AKL
AEHAKL
053 103 157 A
11
Cylinder pin 6 X 20
6 X 20
 026 103 139
12
Shaft oil seal 35 X 48 X 10
35 X 48 X 10
 038 103 085 E
13
Sealing flange
 038 103 151 H
15
hexagon socket head bolt withshoulder M 7 X 21,5
M 7 X 21,5
 N 909 450 02
15
hexagon socket head bolt withshoulder M 7 X 21,5
M 7 X 21,5
 N 909 450 01
16
Silicone sealant Sealing flange
 D 176 404 A2
17
seal ring No replacement part
 —
18
Sealing flange also use: N 911 485 01
N 911 485 01
 06B 103 171 J
18
Sealing flange also use: N 106 171 01 N 909 450 02
N 106 171 01 N 909 450 02
 06B 103 171 B
18
Sealing flange also use: N 911 485 01
N 911 485 01
 06B 103 171 E
1A
Bungs BFQ
BFQ
06A 103 035 A
1A
Bungs BFQ
BFQ
06A 103 035
1B
O-ring 20 X 3 BFQ
20 X 3
BFQ
N 903 653 02
1C
Hex collared bolt M 8 X 20 BFQ
M 8 X 20
BFQ
N 100 632 02
1C
Hex collared bolt M 8 X 20 BFQ
M 8 X 20
BFQ
N 100 632 05
2
bolt,hex.hd.with shoul.(combi) M 10 X 87
M 10 X 87
 06B 103 039 A
2
Hex collared bolt M 10 X 87
M 10 X 87
 WHT 000 134
20
hexagon socket head bolt withshoulder F >> 1 J-3-450 000* only to be used for: M 7 X 21,506 B 103 171 B 06 B 103 171 D
M 7 X 21,506 B 103 171 B 06 B 103 171 D
 N 909 450 02
20
hexagon socket head bolt withshoulder F >> 1 J-3-450 000* only to be used for: M 7 X 21,506 B 103 171 B 06 B 103 171 D
M 7 X 21,506 B 103 171 B 06 B 103 171 D
 N 909 450 01
21
Cylinder pin F >> 1 J-3-450 000* 8 X 14
8 X 14
 N 043 207 2
22
dowel sleeve 16 X 13,5
16 X 13,5
 022 103 139
22
dowel sleeve 16 X 13,5
16 X 13,5
 012 301 153 B
23
Engine oil sump
 038 103 601 NA
23A
Engine oil sump with openingfor oil level sensor
 038 103 603 N
24
Seal bolt with sealingring M 14 X 1,5 X 22
M 14 X 1,5 X 22
 N 908 132 02
24
Oil drain plug withseal M 14 X 1,5 X 22
M 14 X 1,5 X 22
 N 908 132 01
25
Discont. / replace: N 908 132 01
N 908 132 01
 —
26
Surge lock
 06B 103 623 C
26
Surge lock
 06B 103 623 P
27
hexagon socket head bolt withshoulder M 7 X 28
M 7 X 28
 N 907 356 03
27
hexagon socket head bolt withshoulder M 7 X 28
M 7 X 28
 N 907 356 04
28
Silicone sealantoil sump
 D 176 404 A2
29
Cover plate automatic
 038 103 647 A
3
End cap 14
14
 N 011 907 10
30
Cover plate manualgearbox
 06A 103 645
31
cover plate manualgearbox
 038 103 648 H
31
cover plate manualgearbox
 068 103 645 M
32
Spring washer 6 manualgearbox
6
 N 012 226 5
33
Hexagon bolt M 6 X 8 manualgearbox
M 6 X 8
 N 010 208 5
34
tube for oil dipstick
 06A 103 634
34
tube for oil dipstick
 06D 103 634 E
35
guide funnel AEH,AKL
AEHAKL
06A 103 663 B
37
oil level sensor see illustration: 919-040
919-040
 —
4
End cap 22
22
 N 011 909 3
5
End cap 42,1
42,1
 036 103 113
5
End cap 42
42
 06B 103 113
6
sealing plug M 26 X 1,5
M 26 X 1,5
 WHT 001 423
6
sealing plug M 26 X 1,5
M 26 X 1,5
 06A 103 193 A
7
impulse sender see illustration: 906-000
906-000
 —
9
Pressure-relief valve F >> 1 J-4 D 130 000*F >> 1 J-4 U 011 000*F >> 1 J-4 W 155 000* AEH,AKL
AEHAKL
053 103 155 E
