Injection pump — Mk4 Golf Engine (2003 - 2004)
Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Injection pump

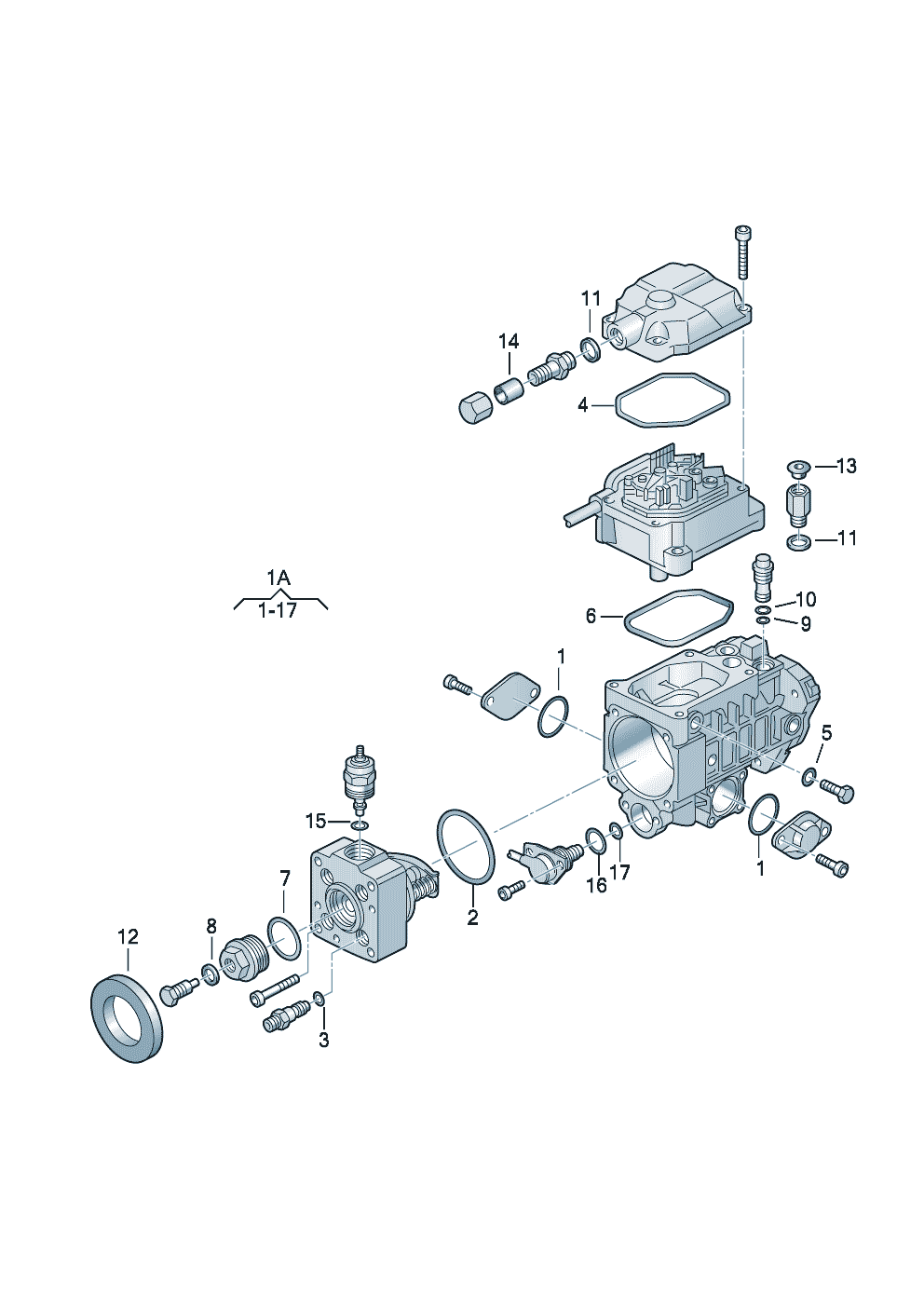

Injection pump for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 130022 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 1 OEM part number across 18 catalogued positions including 038 198 051 D. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 1 OEM part number across 18 numbered positions.
| № | Description | Part number |
|---|---|---|
| 1 | seal ring | — |
| 10 | O-ring | — |
| 11 | seal ring | — |
| 12 | Protective cap | — |
| 13 | Bungs | — |
| 14 | Sleeve | — |
| 15 | O-ring | — |
| 16 | O-ring | — |
| 17 | O-ring | — |
| 1A | Gasket set for injectionpump | 038 198 051 D |
| 2 | seal ring | — |
| 3 | Sealing plate | — |
| 4 | Sealing frame | — |
| 5 | Sealing plate | — |
| 6 | Sealing frame | — |
| 7 | O-ring | — |
| 8 | seal ring | — |
| 9 | O-ring | — |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 2003 - 2004
- Generation region
- MEX, RDW
- Generation code
- 405
- Factory group
- 01 Engine
- Factory subgroup
- 130022
Related factory diagrams
Other published engine plates for the Mk4 Golf in this catalogue.
The complete Mk4 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the injection pump diagram for the Mk4 Golf?
- This diagram lists 1 OEM part number for the Mk4 Golf. The first is 038 198 051 D.
- Which Mk4 Golf years and engines does this diagram cover?
- This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk4 Golf factory parts catalogue?
- The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.
