Which VW part numbers are on the oil pump oil filter oil dipstick diagram for the Mk4 Golf?

This diagram lists 20 OEM part numbers for the Mk4 Golf. The first three are 06A 115 105 B, 06D 103 634 E and 06A 103 663 C.

Which Mk4 Golf years and engines does this diagram cover?

This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The parts on it carry the engine codes AEH, AGU, AKL, APK, AQY, AUM, AUQ and BFQ.

Where is the complete Mk4 Golf factory parts catalogue?

The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.

Oil pump oil filter oil dipstick — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Oil pump. oil filter. Oil dipstick

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 22 Primary OEM: 06A 115 105 B, 06D 103 634 E, 06A 103 663 C

Oil pump oil filter oil dipstick for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 115010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 20 OEM part numbers across 22 catalogued positions including 06A 115 105 B, 06D 103 634 E and 06A 103 663 C. Parts on this plate carry the engine codes AEH, AGU, AKL, APK, AQY, AUM, AUQ and BFQ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 20 OEM part numbers across 22 numbered positions.

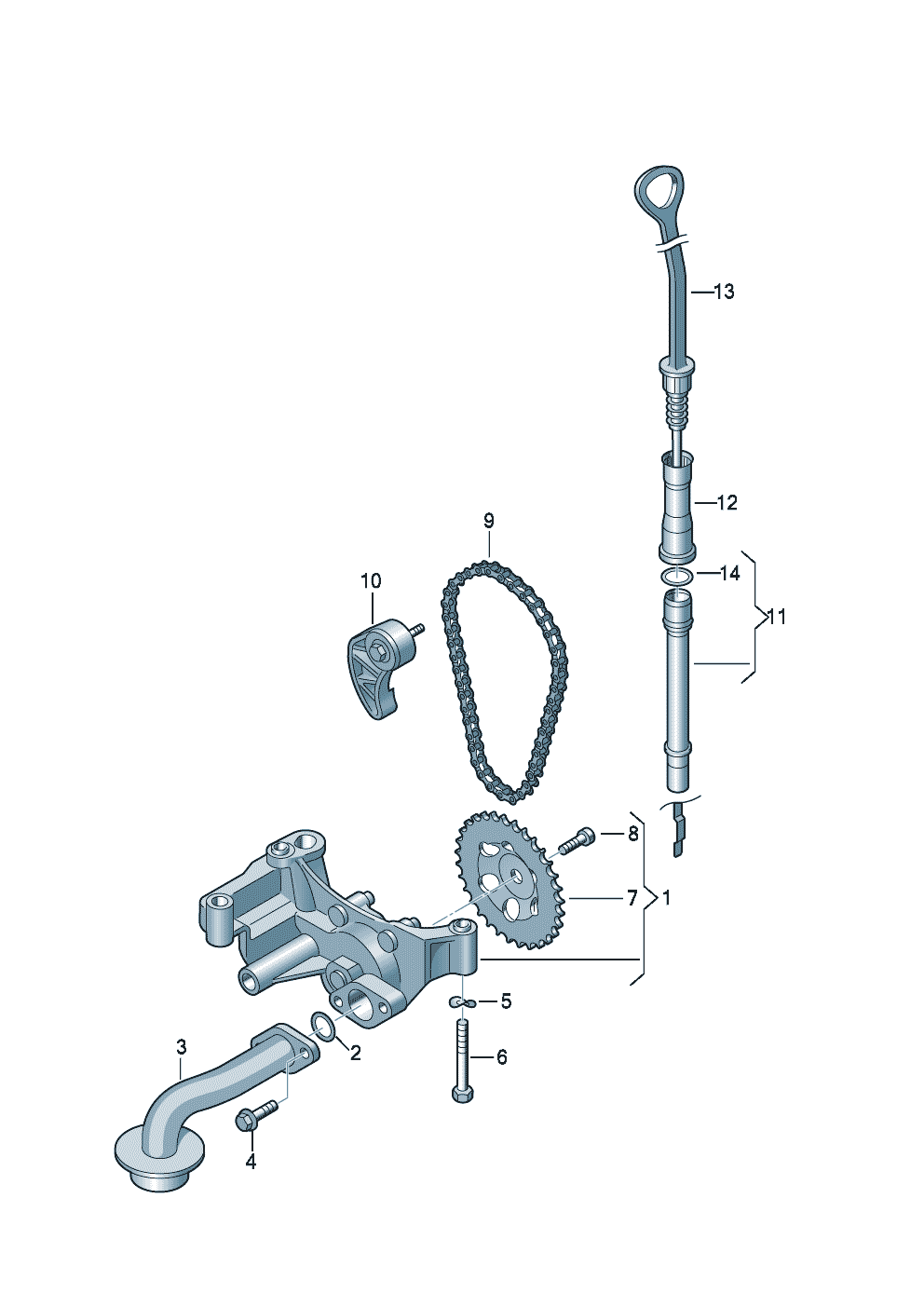

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	oil pump Oil dipstick 1.6/1.8/2.0 ltr AEH,AKL,BFQ,AUM,AGU,AUQ,APK,AQY 1.6/1.8/2.0 ltr AEHAKLBFQAUMAGUAUQAPKAQY	—
	oil pump Oil dipstick 4-cylinder	—
(1)	oil pump	06A 115 105 B
(11)	tube for oil dipstick	06D 103 634 E
(12)	guide funnel BFQ,APK,AQY BFQAPKAQY	06A 103 663 C
(12)	guide funnel AEH,AKL,AUM,AGU,AUQ AEHAKLAUMAGUAUQ	06A 103 663 B
(13)	Oil dipstick AEH,AKL,AUM,BFQ,AGU,AUQ AEHAKLAUMBFQAGUAUQ	06A 115 611 Q
(13)	Oil dipstick APK,AQY APKAQY	06B 115 611 C
(13)	Oil dipstick APK,AQY APKAQY	06B 115 611 R
(13)	Oil dipstick AEH,AKL,AUM,BFQ,AGU,AUQ AEHAKLAUMBFQAGUAUQ	06A 115 611 B
10	chain tensioner	06A 115 130
11	tube for oil dipstick	06A 103 634
2	seal ring 20 X 3,15 20 X 3,15	N 028 222 2
3	suction line	06A 115 251
4	hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5	N 909 450 02
4	hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5	N 909 450 01
5	Spring washer 7 7	N 012 234 5
6	hexagon socket head bolt withshoulder M 7 X 55 M 7 X 55	N 907 040 07
6	hexagon socket head bolt withshoulder M 7 X 55 M 7 X 55	N 907 040 01
7	Chain sprocket	06A 115 121
8	Oval hexagon socket head bolt M 8 X 22 M 8 X 22	N 903 659 01
9	Roller chain	06A 115 125

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Engine codes on this plate: AEH, AGU, AKL, APK, AQY, AUM, AUQ, BFQ
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 115010
