Which VW part numbers are on the oil pump oil filter oil dipstick diagram for the Mk4 Golf?

This diagram lists 18 OEM part numbers for the Mk4 Golf. The first three are 036 115 105 D, 036 115 629 J and 030 115 636 A.

Which Mk4 Golf years and engines does this diagram cover?

This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The parts on it carry the engine codes AHW and BCA.

Where is the complete Mk4 Golf factory parts catalogue?

The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.

Oil pump oil filter oil dipstick — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Oil pump. oil filter. Oil dipstick

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 21 Primary OEM: 036 115 105 D, 036 115 629 J, 030 115 636 A

Oil pump oil filter oil dipstick for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 115005 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 18 OEM part numbers across 21 catalogued positions including 036 115 105 D, 036 115 629 J and 030 115 636 A. Parts on this plate carry the engine codes AHW and BCA. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 18 OEM part numbers across 21 numbered positions.

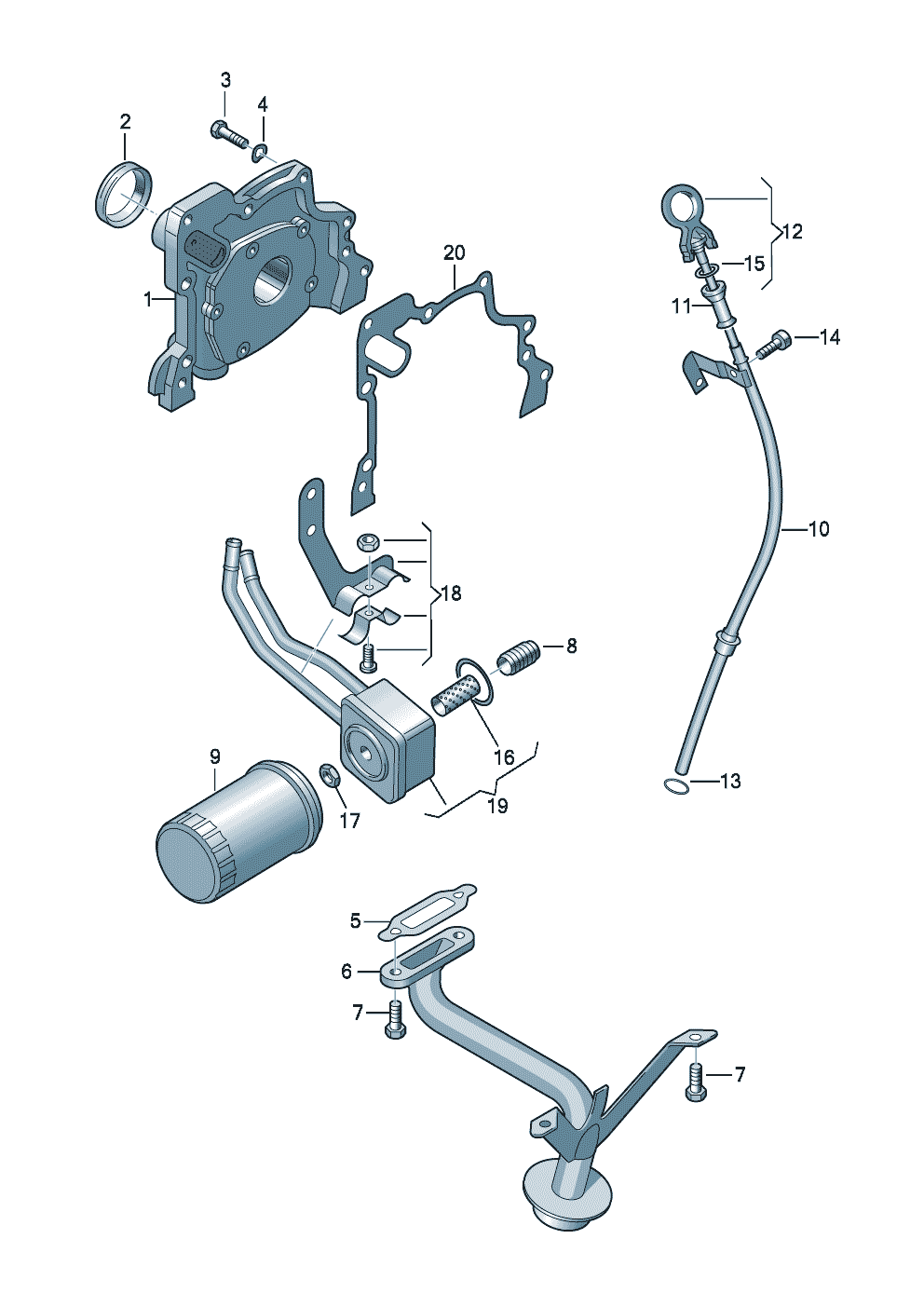

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	oil pumpoil filter Oil dipstick 4-cylinder+16 V	—
	oil pumpoil filter Oil dipstick 1.4 ltr. AHW,BCA 1.4 ltr. AHWBCA	—
1	oil pump	036 115 105 D
10	tube for oil dipstick	036 115 629 J
11	Guide	030 115 636 A
12	Oil dipstick	036 115 611 M
13	O-ring 7,3 X 2,4 7,3 X 2,4	N 900 322 04
13	O-ring 7,3 X 2,4 7,3 X 2,4	N 900 322 03
14	Socket head bolt withhex. socket head, self-locking M 8 X 20 M 8 X 20	N 014 710 15
14	Socket head bolt withhexagon socket head M 8 X 20 M 8 X 20	N 014 710 7
15	O-ring 6,16 X 2,35 6,16 X 2,35	030 115 444
2	Shaft oil seal 42 X 6 42 X 6	036 103 085 H
20	see illustration: 103-000 POS.10 103-000 POS.10	—
3	Hexagon bolt M 6 X 22 M 6 X 22	N 010 222 8
4	Spring washer 6 6	N 012 226 5
5	Seal	036 115 111
6	suction line	036 115 251 J
7	hexagon head bolt (combi) M 6 X 20 M 6 X 20	N 090 261 9
7	hexagon head bolt (combi) M 6 X 20 M 6 X 20	N 090 261 2
8	threaded union	059 115 721
9	oil filter	030 115 561 AB

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Engine codes on this plate: AHW, BCA
Factory group: 01 Engine
Factory subgroup: 115005
