Oil pump oil filter oil dipstick — Mk4 Golf Engine (1998)

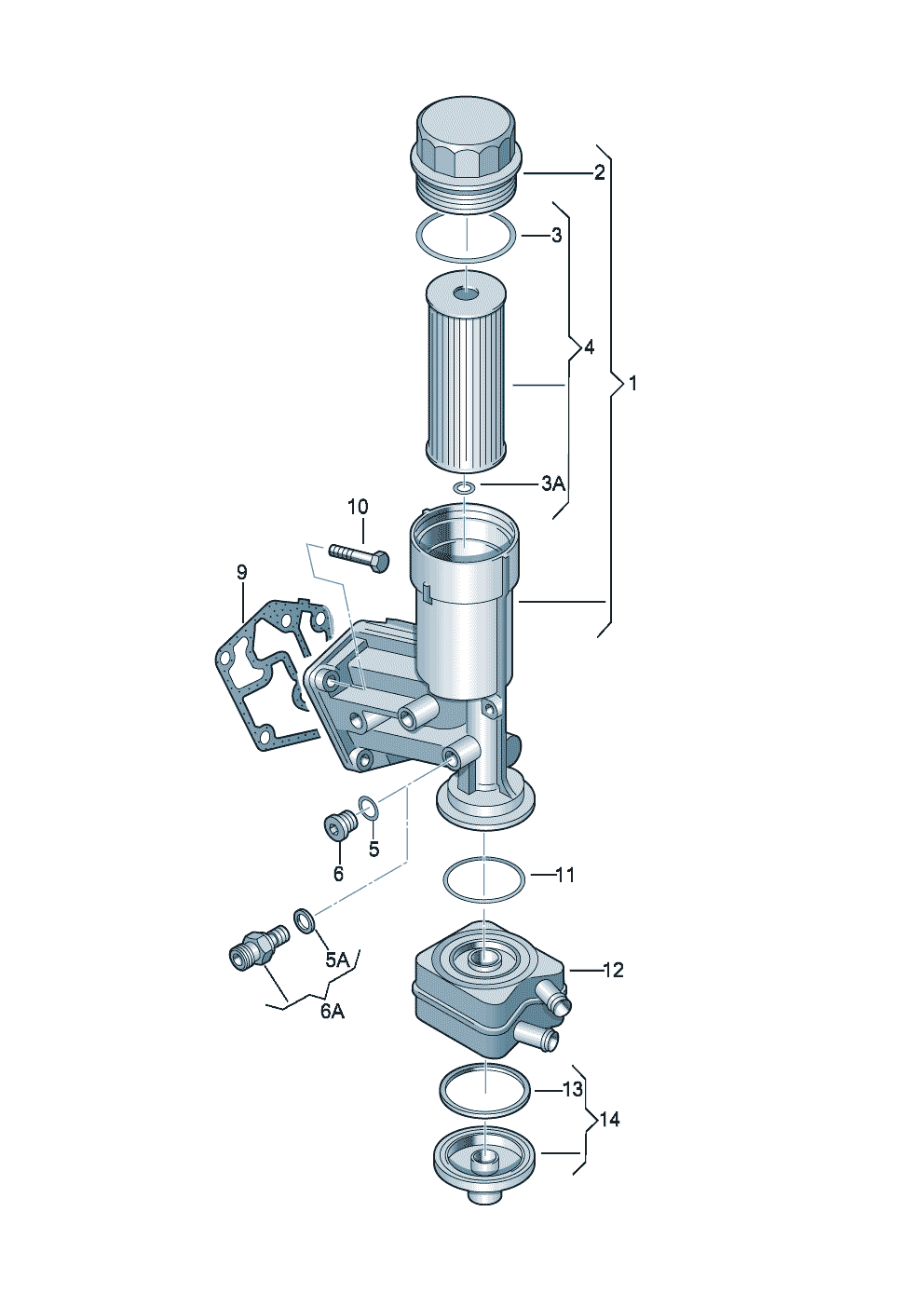

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Oil pump. oil filter. Oil dipstick
Oil pump oil filter oil dipstick for the Volkswagen Golf Mk4 (1998): factory exploded diagram 115060 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 27 OEM part numbers across 28 catalogued positions including 038 115 389 D, 028 117 070 B and 028 117 070. Parts on this plate carry the engine codes AGP, AGR, AHF, AJM, ALH, AQM, ARL and ASV. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 27 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| oil filter Oil filter bracket 1.9 ltr. Diesel eng.+AGR,AGP,AHF,ALH,ATD,AJM,AUY,AQM,ASV,ASZ,ARL 1.9 ltr. AGRAGPAHFALHATDAJMAUYAQMASVASZARL | — | |
| (1) | Oil filter bracket | 038 115 389 D |
| (11) | gasket for oil cooler F 1 J-Y-100 001>>* only to be used for: 73 MM 028 117 021 E AJM,AHF 73 MM 028 117 021 E AJMAHF | 028 117 070 B |
| (11) | seal ring F >> 1 J-Y-100 000* only to be used for: 72,2 X 3,2028 117 021 C AJM,AHF 72,2 X 3,2028 117 021 C AJMAHF | 028 117 070 |
| (11) | gasket for oil cooler only to be used for: 73 MM 028 117 021 E AUY,ASV 73 MM 028 117 021 E AUYASV | 028 117 070 B |
| (11) | Seal 59 X 5 AGP,AQM,AGR,ALH,ASZ,ATD,ARL 59 X 5 AGPAQMAGRALHASZATDARL | 038 117 070 A |
| (12) | Oil cooler ASZ,ARL ASZARL | 038 117 021 A |
| (12) | Oil cooler F >> 1 J-Y-100 000* AJM,AHF AJMAHF | 028 117 021 C |
| (12) | Oil cooler AGP,AQM,AGR,ALH AGPAQMAGRALH | 068 117 021 BX |
| (12) | Oil cooler F 1 J-Y-100 001>>* AUY,ASVAJM,AHF AUYAHF | 028 117 021 E |
| (12) | Oil cooler ATD ATD | 028 117 021 L |
| (12) | Oil cooler ATD ATD | 028 117 021 B |
| (12) | Oil cooler ASZ,ARL ASZARL | 038 117 021 B |
| (13) | Seal 62,8 62,8 | 038 117 070 |
| (14) | Cover AJM,AUY,AHF,ASV,ASZ,ARL AJMAUYAHFASVASZARL | 038 117 061 B |
| (14) | Cover AJM,AUY,AHF,ASV,ASZ,ARL AJMAUYAHFASVASZARL | 038 117 061 |
| (9) | Seal | 038 115 441 A |
| 10 | Hexagon bolt M 7 X 42 M 7 X 42 | N 907 297 01 |
| 10 | 12-point head bolt M 7 X 42 M 7 X 42 | N 908 152 01 |
| 12 | Oil cooler AGP,AQM,AGR,ALH AGPAQMAGRALH | 068 117 021 B |
| 14 | Cover AGR,AGP,ALH,AQM,ATD AGRAGPALHAQMATD | 038 117 061 C |
| 14 | Cover AGR,AGP,ALH,AQM,ATD AGRAGPALHAQMATD | 021 117 061 B |
| 2 | Cover | 038 115 433 |
| 3 | O-ring 71 X 3,5 71 X 3,5 | N 907 823 01 |
| 3A | O-ring 10 X 2 10 X 2 | N 900 432 01 |
| 4 | filter element with gasket | 074 115 562 |
| 5 | seal ring 10 X 13,5 10 X 13,5 | N 013 811 5 |
| 6 | sealing plug M 10 X 1 M 10 X 1 | N 016 024 1 |
