Oil pump oil filter oil dipstick — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Oil pump. oil filter. Oil dipstick

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 32 Primary OEM: 06A 115 405 AH, 06A 115 405 BS, 028 117 021 B

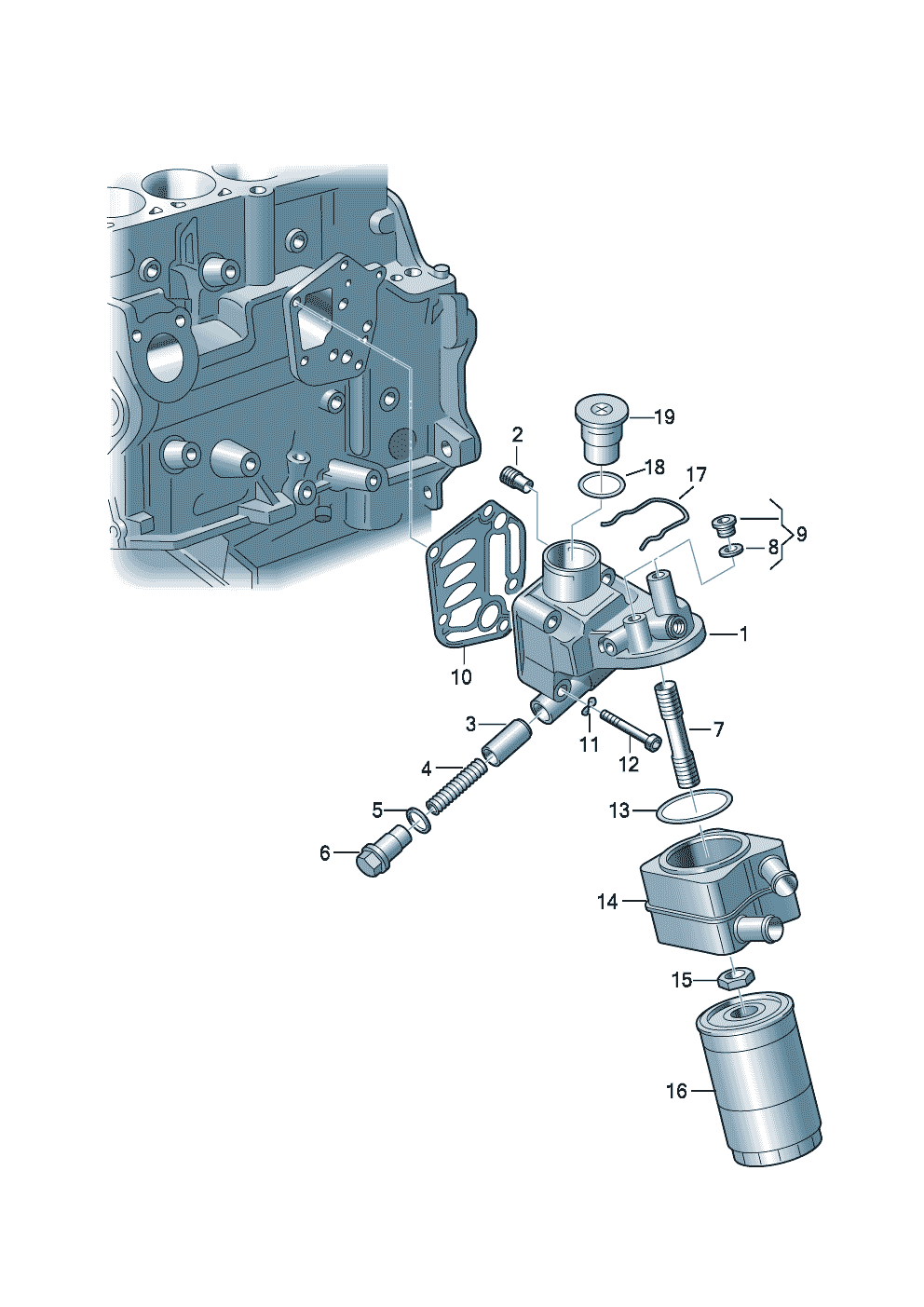

Oil pump oil filter oil dipstick for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 115040 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 27 OEM part numbers across 32 catalogued positions including 06A 115 405 AH, 06A 115 405 BS and 028 117 021 B. Parts on this plate carry the engine codes AEH, AGU, AKL, APK, AQY, AUM, AUQ and AZJ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 27 OEM part numbers across 32 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Oil filter bracketoil filter 4-cylinder	—
	Oil filter bracketoil filter 1.6/1.8/2.0 ltr AEH,AKL,BFQ,AUM,AGU,AUQ,APK,AQY,AZJ,BEH 1.6/1.8/2.0 ltr AEHAKLBFQAUMAGUAUQAPKAQYAZJBEH	—
(1)	Oil filter bracket AUM,AGU,AUQ AUMAGUAUQ	06A 115 405 AH
(1)	Oil filter bracket AUM,AGU,AUQ AUMAGUAUQ	06A 115 405 BS
(1)	Oil filter bracket also use: N 013 812 8 N 016 025 2 AZJ,BEH N 013 812 8 N 016 025 2 AZJBEH	06A 115 405 BS
(1)	Oil filter bracket also use: N 013 812 8 N 016 025 2 AZJ,BEH N 013 812 8 N 016 025 2 AZJBEH	06A 115 405 AH
(14)	Oil cooler AUM,AGU,AUQ,AZJ,BEH AUMAGUAUQAZJBEH	028 117 021 B
(14)	Oil cooler AUM,AGU,AUQ,AZJ,BEH AUMAGUAUQAZJBEH	028 117 021 K
(14)	Oil cooler AUM,AGU,AUQ,AZJ,BEH AUMAGUAUQAZJBEH	028 117 021 L
(16)	oil filter	06A 115 561 B
(8)	seal ring 12 X 15,5 X 1,5 AZJ,BEH 12 X 15,5 X 1,5 AZJBEH	N 013 812 8
(9)	sealing plug M 12 X 1,5 AZJ,BEH M 12 X 1,5 AZJBEH	N 016 025 2
1	Oil filter bracket AEH,AKL,BFQ,APK,AQY AEHAKLBFQAPKAQY	06A 115 405 AE
1	Oil filter bracket AEH,AKL,BFQ,APK,AQY AEHAKLBFQAPKAQY	06A 115 405 BP
10	Seal	06A 115 441 J
12	hexagon socket head bolt withshoulder M 7 X 55 M 7 X 55	N 907 040 01
12	hexagon socket head bolt withshoulder M 7 X 55 M 7 X 55	N 907 040 07
13	Seal 59 X 5 59 X 5	038 117 070 A
14	Oil cooler AEH,AKL,BFQ,APK,AQY AEHAKLBFQAPKAQY	078 117 021 A
15	Hexagon nut	068 115 723
17	retaining spring	037 121 142 A
18	O-ring 34,2 X 3 34,2 X 3	N 904 673 01
19	End cap AEH,AKL,APK,AQY,AZJ,BEH AEHAKLAPKAQYAZJBEH	06A 115 418
3	No replacement part	—
4	No replacement part	—
5	No replacement part	—
6	sealing plug M 20 X 1,5 X 10 M 20 X 1,5 X 10	WHT 000 422 A
6	sealing plug	06A 103 193 B
7	threaded union	028 115 721
8	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
9	sealing plug M 10 X 1 M 10 X 1	N 016 024 3
9	sealing plug M 10 X 1 M 10 X 1	N 016 024 1

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Engine codes on this plate: AEH, AGU, AKL, APK, AQY, AUM, AUQ, AZJ
Variant tags: petrol_8v_gti_or_gl
Factory group: 01 Engine
Factory subgroup: 115040
