Parking aid — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Parking aid

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 17 Primary OEM: 066 906 455 E, 066 906 455 D, 066 906 455 C

Parking aid for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 919050 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 16 OEM part numbers across 17 catalogued positions including 066 906 455 E, 066 906 455 D and 066 906 455 C. Parts on this plate carry the engine codes AQN, BDE, BFH, BHR, BJS and BML. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 16 OEM part numbers across 17 numbered positions.

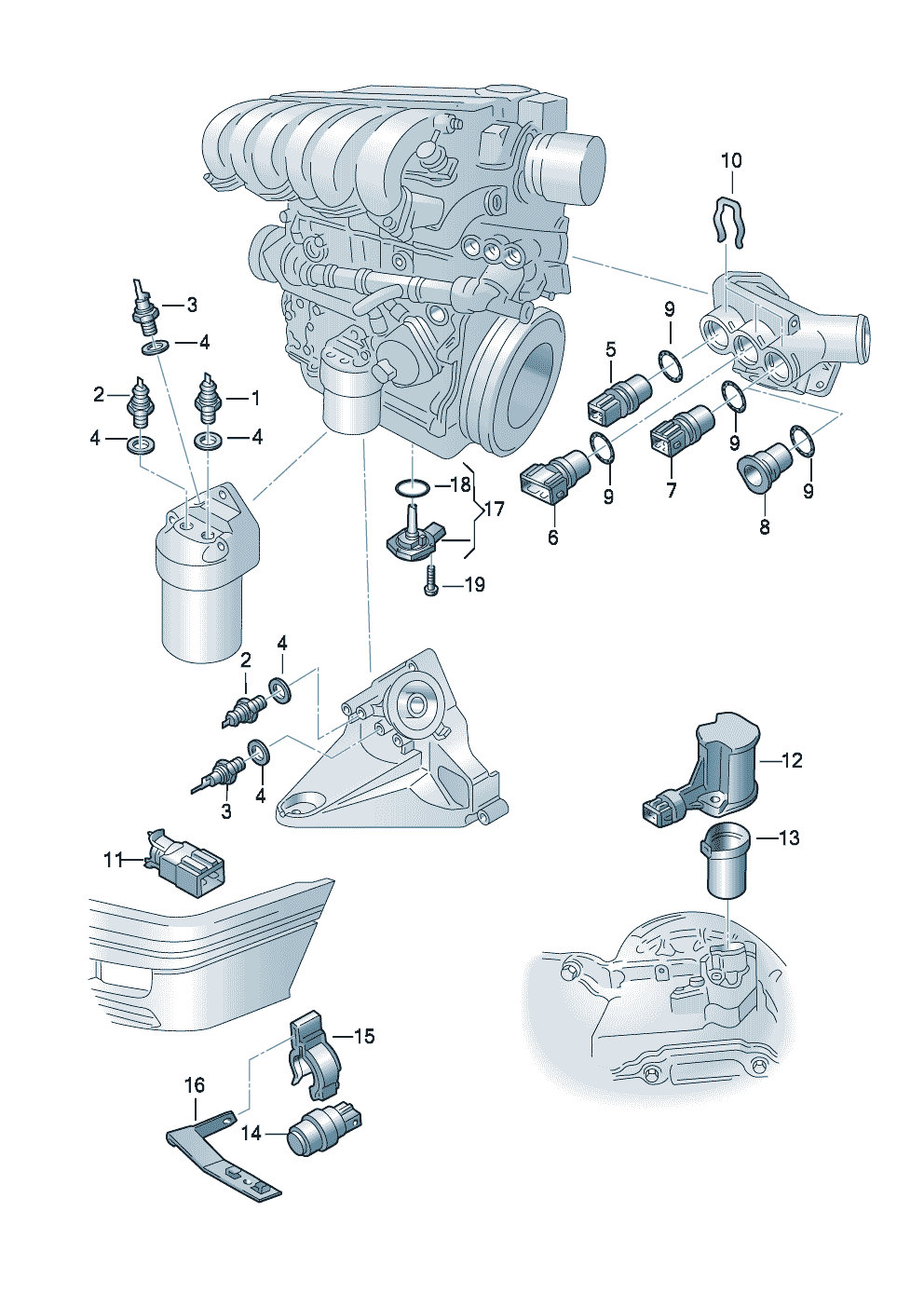

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	switches and senders on engineand gearbox 5-,6-cyl.	—
-	control valve Camshaft BML,BFH,BJS BMLBFHBJS	066 906 455 E
-	control valve	066 906 455 D
-	control valve	066 906 455 C
(2)	Oil pressure switch 1,2-1,6 BARM 10 X 1 AQN 1,2-1,6 BARM 10 X 1 AQN	06A 919 081 D
(2)	Oil pressure switch 0,75-1,05 BAR BFH,BHR,BML 0,75-1,05 BAR BFHBHRBML	038 919 081 M
(2)	Oil pressure switch 1,2-1,6 BARM 10 X 1 AQN,BDE 1,2-1,6 BARM 10 X 1 AQNBDE	06A 919 081 J
(5)	Double temperature sensor	059 919 501 A
1	Oil pressure switch 0,15-0,35 BARM 10 X 1 BDE 0,15-0,35 BARM 10 X 1 BDE	028 919 081 G
10	retaining spring	032 121 142
17	oil level sensor	1J0 907 660 B
18	seal ring	038 103 196
19	Socket head bolt withinner multipoint head M 6 X 28 M 6 X 28	N 104 720 01
19	Socket head collared bolt withinner multipoint head M 6 X 28 M 6 X 28	N 910 652 01
4	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
8	Bungs	357 121 140
9	O-ring 19,6 X 3,65 19,6 X 3,65	N 903 168 01

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Engine codes on this plate: AQN, BDE, BFH, BHR, BJS, BML
Factory group: 01 Engine
Factory subgroup: 919050
