Piston ring piston — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Piston ring. piston

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 125 Primary OEM: 038 107 065 GA0 01, 038 107 065 J 0 03, 038 107 065 FK0 01

Piston ring piston for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 107000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 124 OEM part numbers across 125 catalogued positions including 038 107 065 GA0 01, 038 107 065 J 0 03 and 038 107 065 FK0 01. Parts on this plate carry the engine codes AEH, AGR, AGU, AHF, AHW, AKL, ALH and APK. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 124 OEM part numbers across 125 numbered positions.

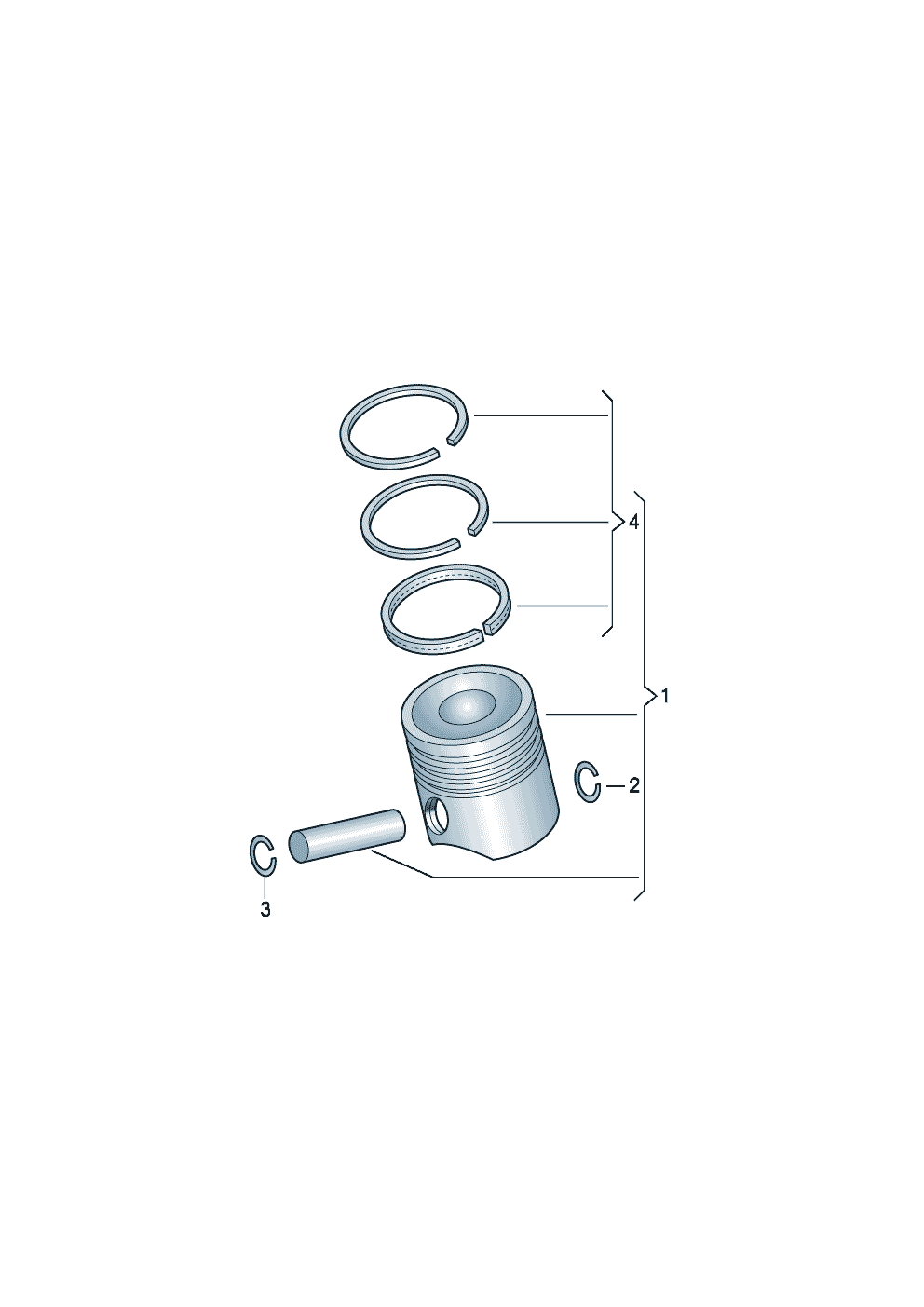

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Dimension group 1 79,46 79,46	038 107 065 GA0 01
	Dimension group 3 79,46 79,46	038 107 065 J 0 03
	Dimension group 1 79,44 79,44	038 107 065 FK0 01
	Dimension group 1 79,46 79,46	038 107 065 L 0 01
	Dimension group 1 79,44 79,44	038 107 065 GC0 01
	pink 79,48 79,48	038 107 065 DD0 03
	blue 79,44 79,44	038 107 065 AA0 01
	Dimension group 1 79,44 79,44	038 107 065 ED0 01
	Dimension group 1 79,44 79,44	038 107 065 EC0 01
	Dimension group 1 79,44 79,44	038 107 065 GM0 01
	Dimension group 1 79,44 79,44	038 107 065 H 0 01
	pink 79,48 79,48	038 107 065 CK0 03
	Dimension group 1 79,44 79,44	038 107 065 EN0 01
	Dimension group 1 79,44 79,44	038 107 065 GN0 01
	Dimension group 1 79,44 79,44	038 107 065 GD0 01
	pink 79,46 79,46	038 107 065 AB0 03
	Dimension group 1 79,46 79,46	038 107 065 GB0 01
	Dimension group 3 79,46 79,46	038 107 065 H 0 03
	blue 79,46 79,46	038 107 065 DC0 01
	Dimension group 1 79,44 79,44	038 107 065 GG0 01
	blue 79,46 79,46	038 107 065 CL0 01
	blue 79,46 79,46	038 107 065 DD0 01
	Dimension group 1 79,44 79,44	038 107 065 EP0 01
	blue 79,44 79,44	038 107 065 AB0 01
	Dimension group 1 79,46 79,46	038 107 065 EM0 01
	Dimension group 1 79,44 79,44	038 107 065 GP0 01
	pink 79,46 79,46	038 107 065 AA0 03
	Dimension group 1 79,46 79,46	038 107 065 FQ0 01
	Dimension group 1 79,46 79,46	038 107 065 FB0 01
	blue 79,46 79,46	038 107 065 CK0 01
	Dimension group 1 79,44 79,44	038 107 065 GH0 01
	pink 79,48 79,48	038 107 065 CL0 03
	Dimension group 1 79,44 79,44	038 107 065 DR0 01
	Dimension group 3 79,48 79,48	038 107 065 L 0 03
	Dimension group 1 79,46 79,46	038 107 065 FR0 01
	Dimension group 1 79,46 79,46	038 107 065 EL0 01
	Dimension group 1 79,44 79,44	038 107 065 FJ0 01
	Dimension group 1 79,46 79,46	038 107 065 FH0 01
	Dimension group 1 79,46 79,46	038 107 065 FA0 01
	Dimension group 1 marked with:or 76,47576,485 76,47576,485	036 107 065 AT0 01
	Dimension group 1 79,44 79,44	038 107 065 DQ0 01
	Dimension group 1 79,44 79,44	038 107 065 J 0 01
	Dimension group 1 79,46 79,46	038 107 065 EB0 01
	pink 79,48 79,48	038 107 065 DC0 03
	Dimension group 3 79,48 79,48	038 107 065 K 0 03
	Dimension group 1 79,46 79,46	038 107 065 K 0 01
	pistonpiston ring 4-cylinder	—
	Dimension group 1 79,44 79,44	038 107 065 GL0 01
	Dimension group 1 79,46 79,46	038 107 065 FG0 01
	Dimension group 3 marked with: 76,495 76,495	036 107 065 AT0 03
	Dimension group 1 79,46 79,46	038 107 065 EA0 01
(1)	piston complete use if required: 81 MAHLE 06 A 107 441 BFQ 81 MAHLE 06 A 107 441 BFQ	06A 107 065 N
(1)	piston complete ALCAN AGR,AHF ALCAN AGRAHF	038 107 065 K
(1)	piston complete ALCAN ASV ALCAN ASV	038 107 065 DC
(1)	piston complete ALCAN ASV ALCAN ASV	038 107 065 DD
(1)	piston complete F >> 1 J-3 B 052 464F >> 1 J-3 D 011 549F >> 1 J-3 P 063 061F >> 1 J-3 U 032 214F >> 1 J-3 W 219 140* ALCAN ATD ALCAN ATD	038 107 065 EA
(1)	piston complete ALCAN AQM ALCAN AQM	038 107 065 CK
(1)	piston complete ALCAN AQM ALCAN AQM	038 107 065 CL
(1)	piston complete MAHLE ALH MAHLE ALH	038 107 065 AA
(1)	piston complete MAHLE ALH MAHLE ALH	038 107 065 AB
(1)	piston complete MAHLE AGR,AHF MAHLE AGRAHF	038 107 065 J
(1)	piston complete ALCAN AGR,AHF ALCAN AGRAHF	038 107 065 L
(1)	piston complete F >> 1 J-3 B 052 464F >> 1 J-3 D 011 549F >> 1 J-3 P 063 061F >> 1 J-3 U 032 214F >> 1 J-3 W 219 140* ALCAN ATD ALCAN ATD	038 107 065 EB
(1)	piston complete F 1 J-3 B 052 465>>F 1 J-3 D 011 550>>F 1 J-3 P 063 062>>F 1 J-3 U 032 215>>F 1 J-3 W 219 141>>* ALCAN ATD ALCAN ATD	038 107 065 FG
(1)	piston complete F 1 J-3 B 052 465>>1 J-3 B 080 990F 1 J-3 D 011 550>>1 J-3 D 016 054F 1 J-3 P 063 062>>1 J-3 P 250 000F 1 J-3 U 032 215>>1 J-3 U 205 196F 1 J-3 W 219 141>>1 J-3 W 355 000 MAHLE ATD MAHLE ATD	038 107 065 FK
(1)	piston complete F 1 J-3 B 052 465>>F 1 J-3 D 011 550>>F 1 J-3 P 063 062>>F 1 J-3 U 032 215>>F 1 J-3 W 219 141>>* ALCAN ATD ALCAN ATD	038 107 065 FH
(1)	piston complete F 1 J-3 B 080 991>>F 1 J-3 D 016 055>>F 1 J-3 P 250 001>>F 1 J-3 U 205 197>>F 1 J-3 W 355 001>>* MAHLE ATD MAHLE ATD	038 107 065 GG
(1)	piston complete F 1 J-3 B 080 991>>F 1 J-3 D 016 055>>F 1 J-3 P 250 001>>F 1 J-3 U 205 197>>F 1 J-3 W 355 001>>* MAHLE ATD MAHLE ATD	038 107 065 GH
(1)	piston complete F 1 J-3 B 052 465>>1 J-3 B 080 990F 1 J-3 D 011 550>>1 J-3 D 016 054F 1 J-3 P 063 062>>1 J-3 P 250 000F 1 J-3 U 032 215>>1 J-3 U 205 196F 1 J-3 W 219 141>>1 J-3 W 355 000 MAHLE ATD MAHLE ATD	038 107 065 FJ
(1)	piston complete F 1 J-3 B 052 465>>1 J-4-200 000 F 1 J-3 D 011 550>>1 J-4-200 000 F 1 J-3 P 063 062>>1 J-4-200 000 F 1 J-3 U 032 215>>1 J-4-200 000 F 1 J-3 W 219 141>>*1 J-4-200 000 MAHLE AXR MAHLE AXR	038 107 065 GC
(1)	piston complete F >> 1 J-3 B 052 464F >> 1 J-3 D 011 549F >> 1 J-3 P 063 062F >> 1 J-3 U 032 214F >> 1 J-3 W 219 140* MAHLE AXR MAHLE AXR	038 107 065 DQ
(1)	piston complete F 1 J-3 B 053 001>>F 1 J-3 D 012 001>>F 1 J-3 P 063 201>>F 1 J-3 U 032 501>>F 1 J-3 W 220 001>>* MAHLE ASZ MAHLE ASZ	038 107 065 GL
(1)	piston complete F >> 1 J-3 B 053 000F >> 1 J-3 D 012 000F >> 1 J-3 P 063 200F >> 1 J-3 U 032 500F >> 1 J-3 W 220 000* MAHLE ASZ MAHLE ASZ	038 107 065 EN
(1)	piston complete F >> 1 J-3 B 053 000F >> 1 J-3 D 012 000F >> 1 J-3 P 063 200F >> 1 J-3 U 032 500F >> 1 J-3 W 220 000* ALCAN ASZ,ARL ALCAN ASZARL	038 107 065 EL
(1)	piston complete F 1 J-3 B 053 001>>F 1 J-3 D 012 001>>F 1 J-3 P 063 201>>F 1 J-3 U 032 501>>F 1 J-3 W 220 001>>* ALCAN ASZ,ARL ALCAN ASZARL	038 107 065 FQ
(1)	piston complete F 1 J-3 B 052 465>>F 1 J-3 D 011 550>>F 1 J-3 P 063 062>>F 1 J-3 U 032 215>>F 1 J-3 W 219 141>>* ALCAN AXR ALCAN AXR	038 107 065 GB
(1)	piston complete F 1 J-3 B 052 465>>1 J-4-200 000 F 1 J-3 D 011 550>>1 J-4-200 000 F 1 J-3 P 063 062>>1 J-4-200 000 F 1 J-3 U 032 215>>1 J-4-200 000 F 1 J-3 W 219 141>>*1 J-4-200 000 MAHLE AXR MAHLE AXR	038 107 065 GD
(1)	piston complete F 1 J-3 B 052 465>>F 1 J-3 D 011 550>>F 1 J-3 P 063 062>>F 1 J-3 U 032 215>>F 1 J-3 W 219 141>>* ALCAN AXR ALCAN AXR	038 107 065 GA
(1)	piston complete F 1 J-5-000 001>> MAHLE AXR MAHLE AXR	038 107 065 GN
(1)	piston complete F >> 1 J-3 B 052 464F >> 1 J-3 D 011 549F >> 1 J-3 P 063 061F >> 1 J-3 U 032 214F >> 1 J-3 W 219 140* MAHLE AXR MAHLE AXR	038 107 065 DR
(1)	piston complete F >> 1 J-3 B 052 464F >> 1 J-3 D 011 549F >> 1 J-3 P 063 061F >> 1 J-3 U 032 214F >> 1 J-3 W 219 140* ALCAN AXR ALCAN AXR	038 107 065 FB
(1)	piston complete F >> 1 J-3 B 052 464F >> 1 J-3 D 011 549F >> 1 J-3 P 063 061F >> 1 J-3 U 032 214F >> 1 J-3 W 219 140* ALCAN AXR ALCAN AXR	038 107 065 FA
(1)	piston complete 81 AEH,AKL 81 AEHAKL	050 107 065 E
(1)	piston complete 81 AGU 81 AGU	058 107 065 F
(1)	piston complete 81 AGU 81 AGU	06A 107 065 J
(1)	piston complete F 1 J-3 B 053 001>>F 1 J-3 D 012 001>>F 1 J-3 P 063 201>>F 1 J-3 U 032 501>>F 1 J-3 W 220 001>>* MAHLE ASZ MAHLE ASZ	038 107 065 GM
(1)	piston complete F >> 1 J-3 B 053 000F >> 1 J-3 D 012 000F >> 1 J-3 P 063 200F >> 1 J-3 U 032 500F >> 1 J-3 W 220 000* MAHLE ASZ MAHLE ASZ	038 107 065 EP
(1)	piston complete F >> 1 J-3-900 000 82,5 AQY,APK 82,5 AQYAPK	06A 107 065 G
(1)	piston complete F 1 J-4-000 001>> 82,5 AQY,APK 82,5 AQYAPK	06A 107 065 BG
(1)	piston complete F 1 J-3 B 053 001>>F 1 J-3 D 012 001>>F 1 J-3 P 063 201>>F 1 J-3 U 032 501>>F 1 J-3 W 220 001>>* ALCAN ASZ,ARL ALCAN ASZARL	038 107 065 FR
(1)	piston complete F >> 1 J-3 B 053 000F >> 1 J-3 D 012 000F >> 1 J-3 P 063 200F >> 1 J-3 U 032 500F >> 1 J-3 W 220 000* ALCAN ASZ,ARL ALCAN ASZARL	038 107 065 EM
(1)	piston complete 76,5 BAD 76,5 BAD	036 107 065 BN
(1)	piston complete F >> 1 J-3 B 052 465F >> 1 J-3 D 011 550F >> 1 J-3 P 063 062F >> 1 J-3 U 032 215F >> 1 J-3 W 219 141* use if required: 82,506 A 107 441 AZJ,BEH 82,506 A 107 441 AZJBEH	06B 107 065 B
(1)	piston complete F >> 1 J-3 B 052 465F >> 1 J-3 D 011 550F >> 1 J-3 P 063 062F >> 1 J-3 U 032 215F >> 1 J-3 W 219 141* 76,5 BCB 76,5 BCB	036 107 065 AP
(1)	piston complete 76,5 BCB 76,5 BCB	036 107 065 BS
(1)	piston complete 81 KOLBENSCHMIDT BFQ 81 KOLBENSCHMIDT BFQ	06A 107 065 BJ
(1)	piston complete 81 AUM,AUQ 81 AUMAUQ	06B 107 065 N
(1)	piston complete use if required: N 904 540 01 AHW,BCA N 904 540 01 AHWBCA	036 107 065 AT
(1)	piston complete F 1 J-3 B 052 466>>F 1 J-3 D 011 551>>F 1 J-3 P 063 063>>F 1 J-3 U 032 216>>F 1 J-3 W 219 142>>* use if required: 82,506 A 107 441 AZJ,BEH 82,506 A 107 441 AZJBEH	06B 107 065 Q
(1)	piston complete F >> 1 J-3 B 052 464F >> 1 J-3 D 011 549F >> 1 J-3 P 063 061F >> 1 J-3 U 032 214F >> 1 J-3 W 219 140* MAHLE ATD MAHLE ATD	038 107 065 EC
(1)	piston complete F >> 1 J-3 B 052 464F >> 1 J-3 D 011 559F >> 1 J-3 P 063 061F >> 1 J-3 U 032 214F >> 1 J-3 W 219 140* MAHLE ATD MAHLE ATD	038 107 065 ED
(1)	piston complete F 1 J-5-000 001>> MAHLE AXR MAHLE AXR	038 107 065 GP
(2)	snap ring 24 X 1,5 AQM 24 X 1,5 AQM	N 012 277 1
(2)	snap ring 17 X 1,5 AHW,BCA,BCB,BAD 17 X 1,5 AHWBCABCBBAD	N 904 540 01
(2)	snap ring 26 X 1,5 AGR,ALH,ATD,AXR,AHF,ASV,ASZ,ARL 26 X 1,5 AGRALHATDAXRAHFASVASZARL	N 101 333 01
(2)	snap ring C 19 X 1,5 BFQ,AZJ,BEH,AUM,AUQ C 19 X 1,5 BFQAZJBEHAUMAUQ	06A 107 441
(3)	snap ring 26 X 1,5 AGR,ALH,ATD,AXR,AHF,ASV,ASZ,ARL 26 X 1,5 AGRALHATDAXRAHFASVASZARL	N 101 333 01
(3)	snap ring 24 X 1,5 AQM 24 X 1,5 AQM	N 012 277 1
(3)	1 set: piston rings 81 AGU 81 AGU	058 198 151 B
(3)	snap ring C 19 X 1,5 BFQ,AZJ,BEH,AUM,AUQ C 19 X 1,5 BFQAZJBEHAUMAUQ	06A 107 441
(3)	snap ring 17 X 1,5 AHW,BCA,BCB,BAD 17 X 1,5 AHWBCABCBBAD	N 904 540 01
(4)	1 set: piston rings F 1 J-4-000 001>> 82,5 APK,AQY 82,5 APKAQY	06A 198 151 D
(4)	1 set: piston rings 76,5 AHW,BCA 76,5 AHWBCA	030 198 151 F
(4)	1 set: piston rings 81 BFQ 81 BFQ	06B 198 151 A
(4)	1 set: piston rings 76,5 BCB 76,5 BCB	036 198 151 E
(4)	1 set: piston rings 76,5 BAD 76,5 BAD	036 198 151 H
(4)	1 set: piston rings F 1 J-3 B 052 466>>F 1 J-3 D 011 551>>F 1 J-3 P 063 063>>F 1 J-3 U 032 216>>F 1 J-3 W 219 142>>* 82,5 AZJ,BEH 82,5 AZJBEH	06A 198 151 D
(4)	1 set: piston rings F >> 1 J-3 B 052 465F >> 1 J-3 D 011 550F >> 1 J-3 P 063 062F >> 1 J-3 U 032 215F >> 1 J-3 W 219 141* 82,5 AZJ,BEH 82,5 AZJBEH	06A 198 151 C
(4)	1 set: piston rings F >> 1 J-3-900 000 82,5 APK,AQY 82,5 APKAQY	06A 198 151 C
(4)	1 set: piston rings 81 AUM,AUQ,AGU 81 AUMAUQAGU	06B 198 151 B
(4)	1 set: piston rings 81 AEH,AKL 81 AEHAKL	06B 198 151
1	piston complete MAHLE AGR,AHF MAHLE AGRAHF	038 107 065 H
2	Securing ring 20 X 1,5 AEH,AKL,AGU,APK,AQY 20 X 1,5 AEHAKLAGUAPKAQY	N 012 273 1
3	Securing ring 20 X 1,5 AEH,AKL,AGU,APK,AQY 20 X 1,5 AEHAKLAGUAPKAQY	N 012 273 1
4	1 set: piston rings 79,5 AQM,AGR,ALH,ATD,AXR,AHF,ASV,ASZ,ARL 79,5 AQMAGRALHATDAXRAHFASVASZARL	038 198 151
