Repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (2002)

Factory title: Volkswagen Golf/Golf R32 (2002) - Repair kit for toothed belt with tensioning roller

Generation: Mk4 2002 (RDW) Group: Engine Rebuild step 1 Parts: 21 Primary OEM: 045 109 145 H, 045 109 107 F, N 100 829 07

Repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (2002): factory exploded diagram 109077 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 18 OEM part numbers across 21 catalogued positions including 045 109 145 H, 045 109 107 F and N 100 829 07. Parts on this plate carry the engine codes ARL, ASZ, ATD and AXR. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 18 OEM part numbers across 21 numbered positions.

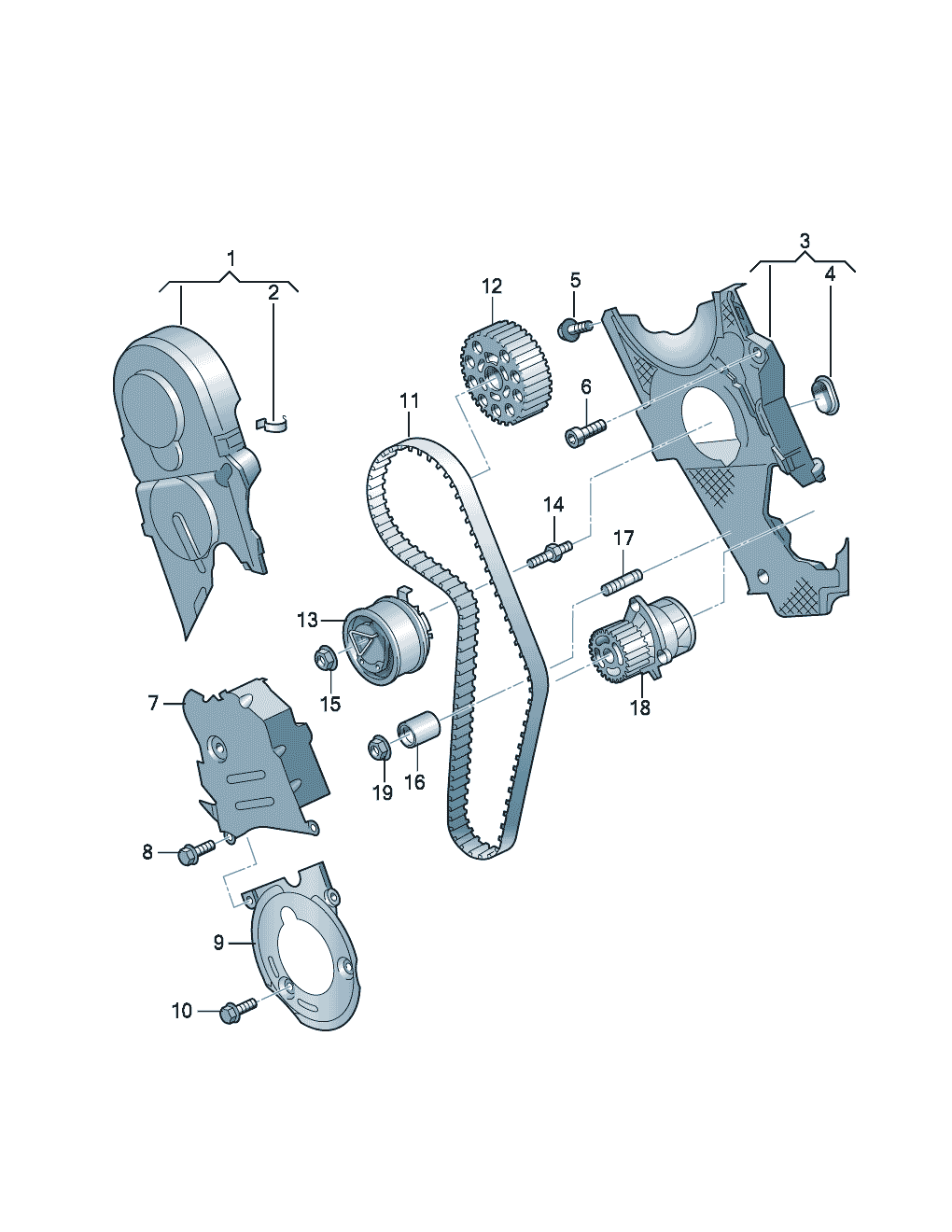

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
toothed belt Toothed belt guard F 1 J-2 W 592 783>>*F 1 J-2 U 403 277>>*F 1 J-2 D 352 774>>*F 1 J-2 B 123 079>>* 1.9 ltr. Diesel eng.+ATD,AXR,ASZ,ARL
1.9 ltr.
ATDAXRASZARL
—
toothed belt Toothed belt guard F 1 J-2 W 592 783>>*F 1 J-2 U 403 277>>*F 1 J-2 D 352 774>>*F 1 J-2 B 123 079>>* Diesel eng.+Unit inject.
 —
(3)
Cover
 045 109 145 H
1
Toothed belt guard
 045 109 107 F
10
hexagon head bolt (combi) M 6 X 16-Z 1
M 6 X 16-Z 1
 N 100 829 07
11
toothed belt Z=120
Z=120
 038 109 119 P
12
toothed belt pulley see illustration: 109-035
109-035
 —
13
Tensioning roller
 038 109 243 M
14
Threaded pin M 10 XM 8 X 73
M 10 XM 8 X 73
 N 909 055 02
15
Hexagon collar nut M 8
M 8
 038 109 454 A
16
idler pulley
 038 109 244 J
17
Threaded pin M 8 X 55
M 8 X 55
 N 104 447 02
19
Hexagon collar nut M 8
M 8
 N 015 083 15
2
Spring clip
 026 109 150 A
3
Cover plate
 045 109 145 B
4
Bungs
 1E0 971 904
5
hexagon head bolt (combi) M 6 X 16-Z 1
M 6 X 16-Z 1
 N 100 829 07
6
Socket head bolt withhexagon socket head M 8 X 20
M 8 X 20
 N 014 779 1
7
Toothed belt guard
 045 109 147 A
8
hexagon head bolt (combi) M 6 X 16-Z 1
M 6 X 16-Z 1
 N 100 829 07
9
Toothed belt guard
 038 109 175

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk4
Model years
2002
Generation region
RDW
Generation code
266
Engine codes on this plate
ARL, ASZ, ATD, AXR
Factory group
01 Engine
Factory subgroup
109077

Related factory diagrams

Other published engine plates for the Mk4 Golf in this catalogue.

The complete Mk4 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the repair kit for toothed belt with tensioning roller diagram for the Mk4 Golf?
This diagram lists 18 OEM part numbers for the Mk4 Golf. The first three are 045 109 145 H, 045 109 107 F and N 100 829 07.
Which Mk4 Golf years and engines does this diagram cover?
This plate is from the Mk4 Golf 2002 generation (RDW). The parts on it carry the engine codes ARL, ASZ, ATD and AXR.
Where is the complete Mk4 Golf factory parts catalogue?
The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.
