Which VW part numbers are on the repair kit for toothed belt with tensioning roller diagram for the Mk4 Golf?

This diagram lists 14 OEM part numbers for the Mk4 Golf. The first three are 06B 109 101 G, 06B 109 101 Q and 058 109 641.

Which Mk4 Golf years and engines does this diagram cover?

This plate is from the Mk4 Golf 2003 - 2004 generation (MEX, RDW). The parts on it carry the engine code BFQ.

Where is the complete Mk4 Golf factory parts catalogue?

The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.

Repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Repair kit for toothed belt with tensioning roller

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 16 Primary OEM: 06B 109 101 G, 06B 109 101 Q, 058 109 641

Repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 109015 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 14 OEM part numbers across 16 catalogued positions including 06B 109 101 G, 06B 109 101 Q and 058 109 641. Parts on this plate carry the engine code BFQ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 14 OEM part numbers across 16 numbered positions.

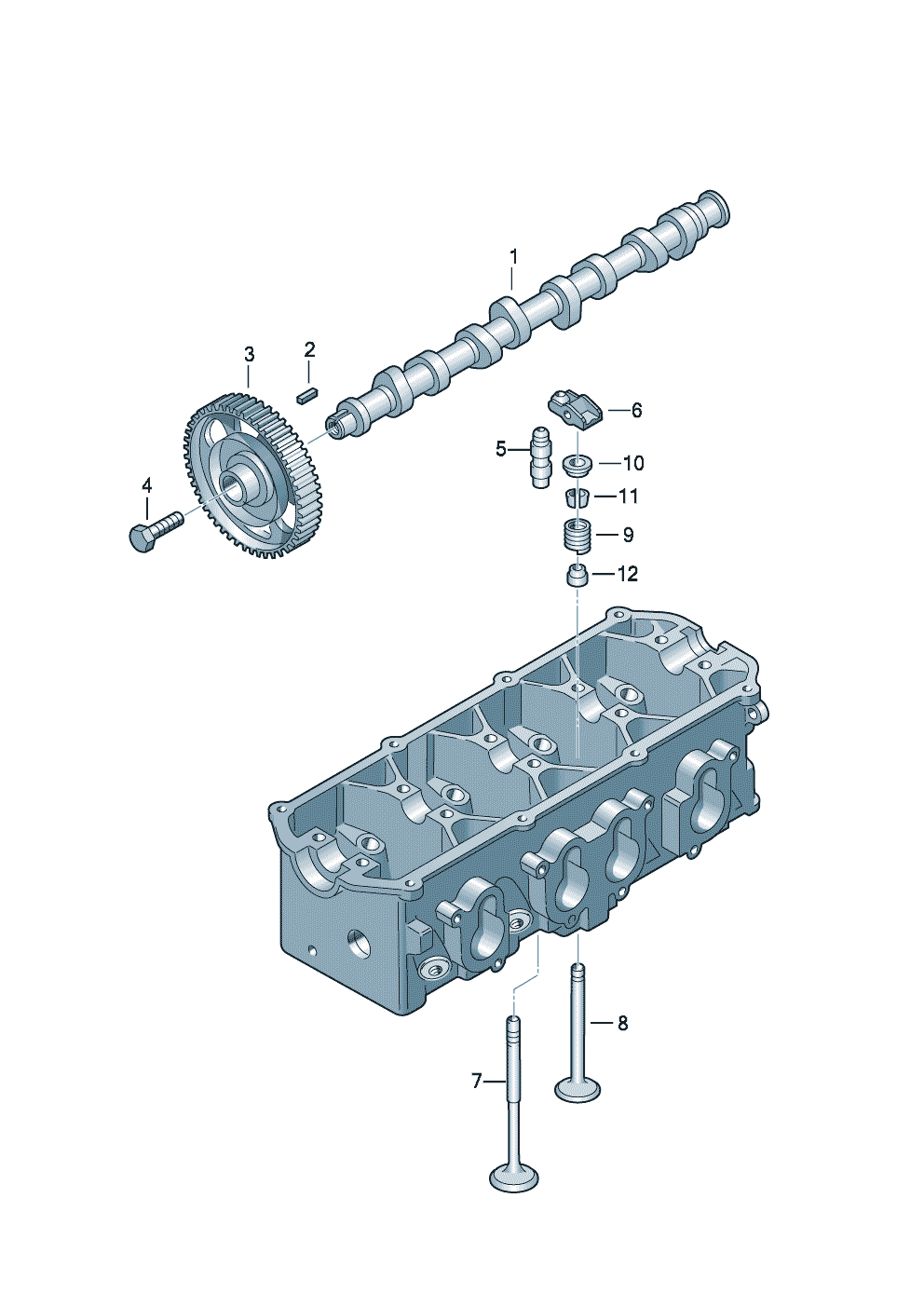

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	camshaft, valves 4-cylinder	—
	camshaft, valves 1.6 ltr. BFQ 1.6 ltr. BFQ	—
1	Camshaft	06B 109 101 G
1	Camshaft	06B 109 101 Q
10	spring disc	058 109 641
11	cotter, split	036 109 651 A
12	Valve stem seal 6 MM 6 MM	036 109 675 A
2	feather key 4 X 4 X 8 4 X 4 X 8	N 014 946 1
3	toothed belt pulley	06A 109 105 C
4	hexagon head bolt (combi) M 12 X 1,5 X 30 M 12 X 1,5 X 30	N 906 340 01
5	equalizing element, hydraulic	022 109 423 A
5	equalizing element, hydraulic	022 109 423 D
6	roller rocker arm	06B 109 417 C
7	Inlet valve	06B 109 601 D
8	exhaust valve	06B 109 611 C
9	Valve spring	06B 109 623

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 2003 - 2004
Generation region: MEX, RDW
Generation code: 405
Engine codes on this plate: BFQ
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 109015
