Repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (2003 - 2004)

Factory title: Volkswagen Golf/Golf R32 (2003 - 2006) - Repair kit for toothed belt with tensioning roller

Generation: Mk4 2003 - 2004 (MEX, RDW) Group: Engine Rebuild step 1 Parts: 14 Primary OEM: 06B 109 477, 06A 109 108 K, N 909 450 02

Repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (2003 - 2004): factory exploded diagram 109065 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 11 OEM part numbers across 14 catalogued positions including 06B 109 477, 06A 109 108 K and N 909 450 02. Parts on this plate carry the engine codes AGU, AUM and AUQ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 11 OEM part numbers across 14 numbered positions.

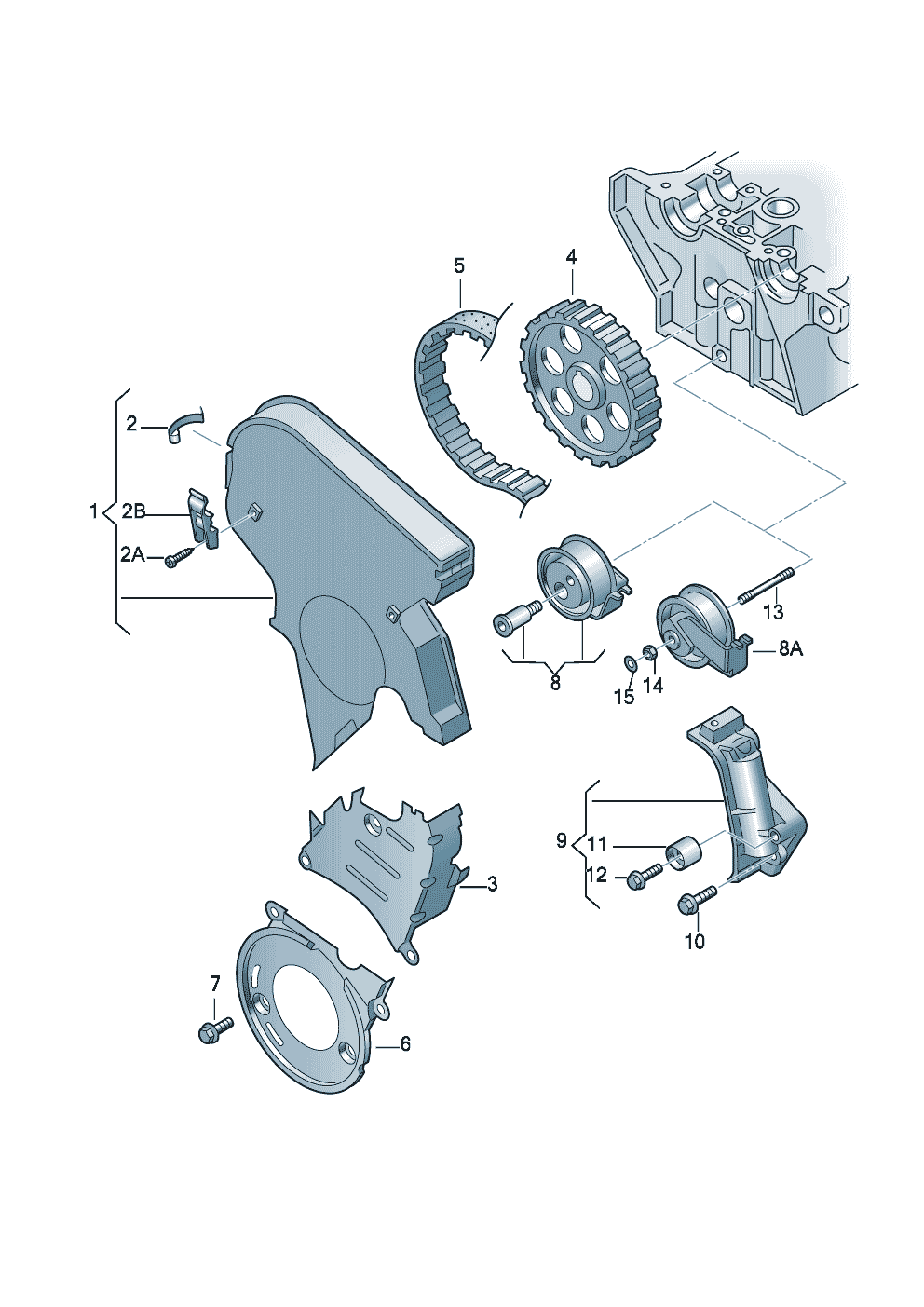

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	toothed belt Toothed belt guard 4-cylinder	—
	toothed belt Toothed belt guard 1.8 ltr. AUM,AGU,AUQ 1.8 ltr. AUMAGUAUQ	—
(9)	Belt tensioner damper	06B 109 477
1	Toothed belt guard	06A 109 108 K
10	hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5	N 909 450 02
11	idler pulley	06B 109 244
2	Spring clip	048 109 150
3	Toothed belt guard	06A 109 147 F
4	toothed belt pulley see illustration: 109-020 109-020	—
5	toothed belt Z=150 Z=150	06B 109 119 A
6	Toothed belt guard	06A 109 175 B
7	Hex collared bolt M 6 X 12 M 6 X 12	N 101 563 07
8	Tensioning roller	06B 109 243 D
8	Tensioning roller	06B 109 243 F
