Steering gear track rod — Mk1 Golf Steering (1979 - 1980)

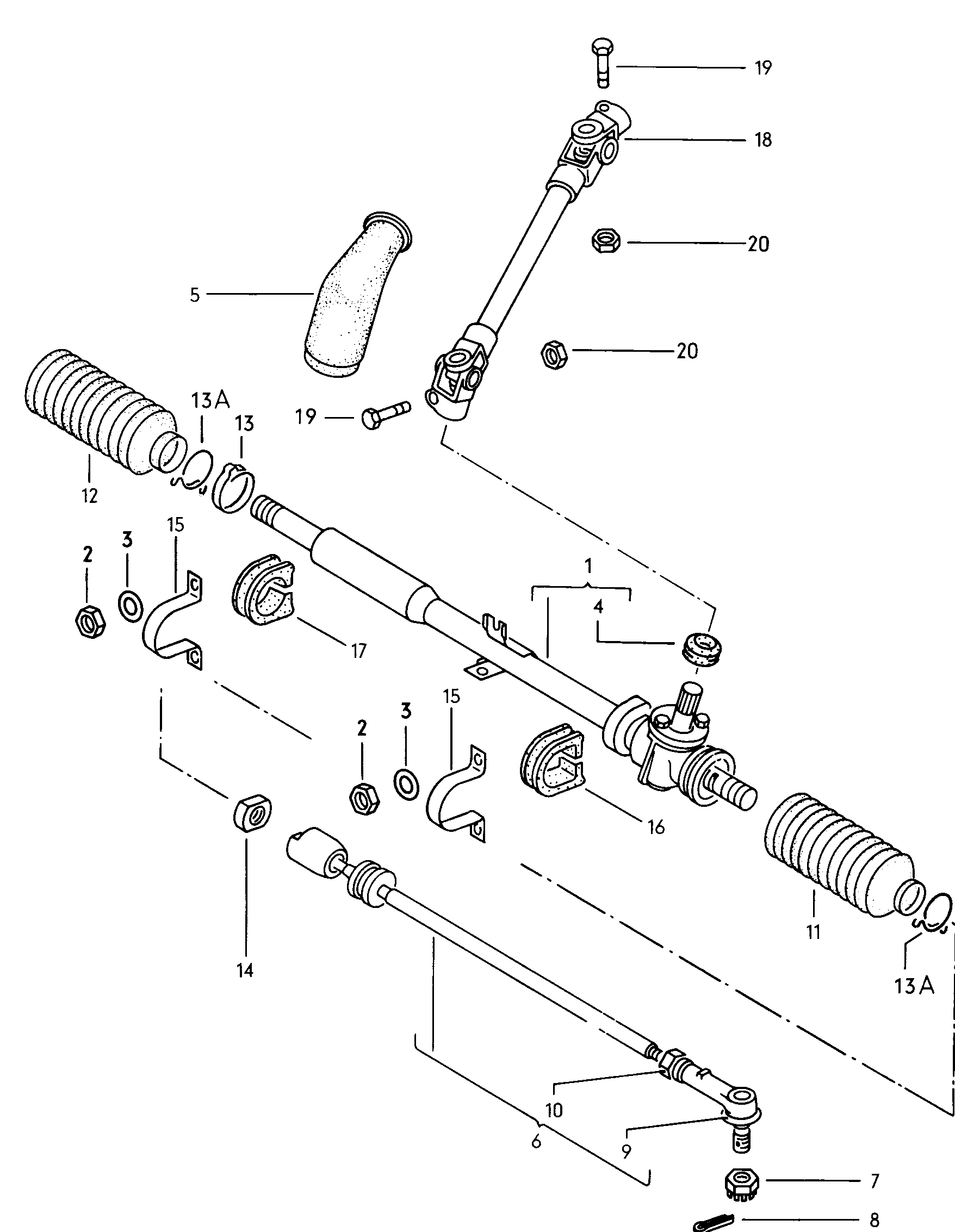

Factory title: Volkswagen Golf (1979 - 1980) - Track rod. Steering gear
Steering gear track rod for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 66000 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 32 OEM part numbers including 171 419 547 A, G 052 168 A1 and N 903 550 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 32 OEM part numbers across 32 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | gasket for steering column | 171 419 547 A |
| - | Steering gear grease 10 G 10 G | G 052 168 A1 |
| - | clamp 61,5 X 5 X 0,8 61,5 X 5 X 0,8 | N 903 550 01 |
| (1) | Steering gear | 172 419 063 |
| (18) | Drive shaft SCIROCCO | 531 419 951 B |
| (18) | Drive shaft SCIROCCO | 532 419 951 B |
| (18) | Drive shaft GOLF,JETTA | 172 419 951 B |
| (5) | Prot. sleeve for drive shaft | 172 419 523 |
| 1 | Steering gear | 171 419 063 |
| 10 | Hexagon nut M 14 X 1,5 M 14 X 1,5 | N 011 163 3 |
| 10 | Hexagon nut M 14 X 1,5 M 14 X 1,5 | N 011 113 5 |
| 11 | Prot. housing for steer. gear | 191 419 831 |
| 12 | Prot. housing for steer. gear | 171 419 832 C |
| 13 | clip for protective sleeve 47,5 47,5 | 823 419 843 |
| 13A | Clamping ring F 159 2800 001>>F 16 A 0000 001>>F 179 3258 136>>F 539 2027 001>> | 171 419 838 |
| 14 | Lock nut M 22 X 1,5 M 22 X 1,5 | 171 419 855 |
| 15 | Clamp | 171 419 875 |
| 16 | Rubber bush | 171 419 883 |
| 17 | Rubber bush | 171 419 884 |
| 18 | Drive shaft GOLF,JETTA | 171 419 951 C |
| 19 | Hexagon bolt M 8 X 38 M 8 X 38 | N 010 359 4 |
| 2 | hexagon nut, self-locking M 8 M 8 | N 022 146 4 |
| 20 | hexagon nut, self-locking M 8 M 8 | N 022 146 4 |
| 3 | Washer 8,4 8,4 | N 011 525 13 |
| 3 | Washer 8,4 8,4 | N 011 525 20 |
| 4 | seal ring | 171 419 329 A |
| 5 | Prot. sleeve for drive shaft | 171 419 523 |
| 6 | tie rod (adjustable) | 171 419 804 |
| 7 | Castle nut M 12 X 1,5 M 12 X 1,5 | N 011 212 2 |
| 8 | split pin 3,2 X 25 3,2 X 25 | N 012 532 1 |
| 8 | split pin 3,2 X 28 3,2 X 28 | N 012 533 1 |
| 9 | tie rod end | 171 419 812 |
