Steering wheelsteering tube — Mk1 Golf Steering (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Track rod. Steering gear

Generation: Mk1 1982 - 1983 (RDW) Group: Steering Parts: 88 Primary OEM: 171 419 669 N 0 1C, 171 419 669 N 9 0V, 171 419 669 H 9 0V

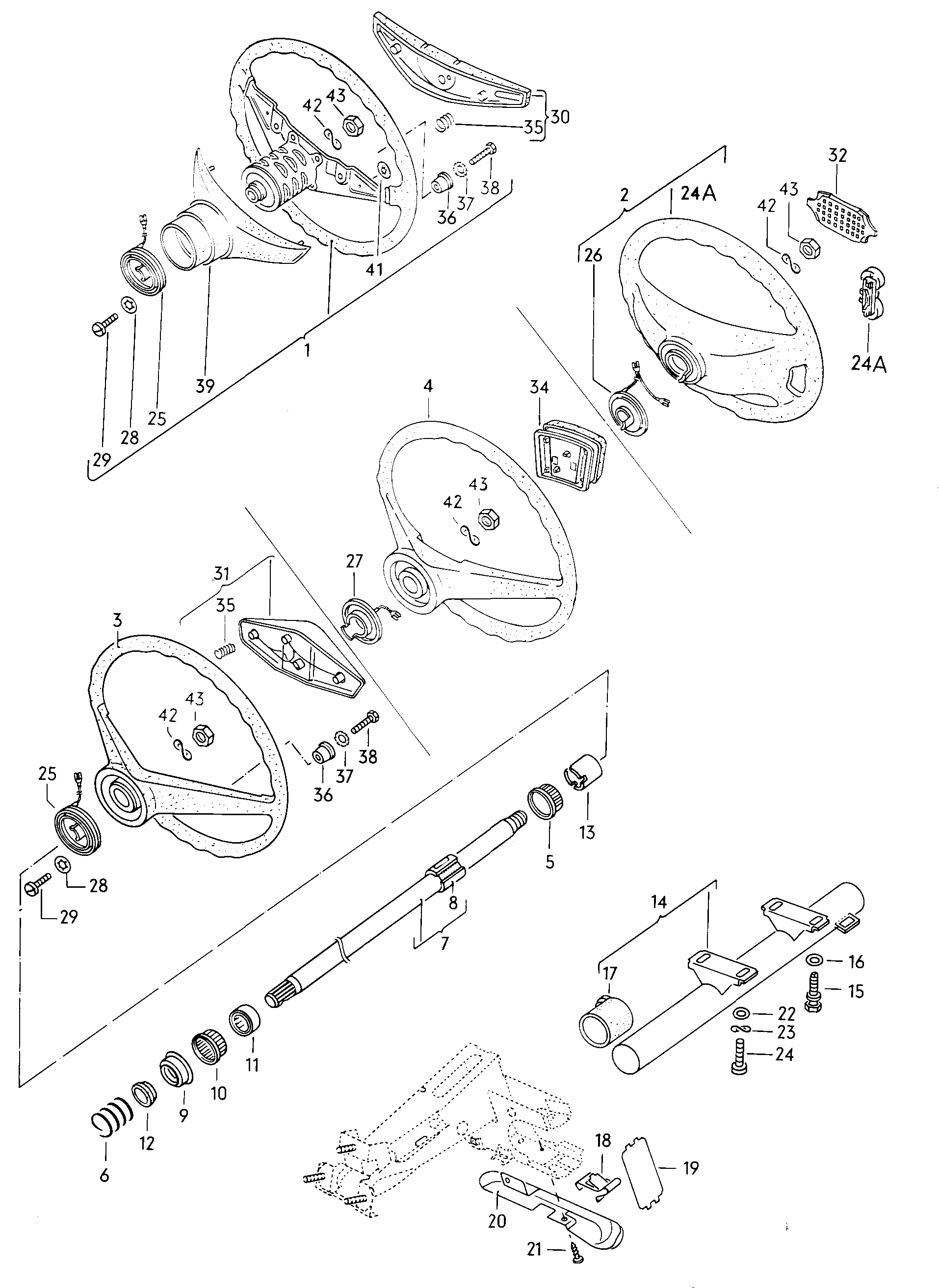

Steering wheelsteering tube for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 104000 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 88 OEM part numbers including 171 419 669 N 0 1C, 171 419 669 N 9 0V and 171 419 669 H 9 0V. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 88 OEM part numbers across 88 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black
 171 419 669 N 0 1C
saddle brown
 171 419 669 N 9 0V
saddle brown
 171 419 669 H 9 0V
Satin black
 171 419 669 H 0 1C
saddle brown
 171 419 669 K 9 0V
Satin black
 171 419 669 K 0 1C
Satin black
 171 419 091 C 0 1C
Satin black
 171 419 669 P 0 1C
Satin black
 171 419 091 D 0 1C
saddle brown
 171 419 091 D 9 0V
saddle brown
 171 419 669 J 9 0V
saddle brown
 171 419 091 J 9 0V
Satin black RABBIT GTI
 171 419 669 L 0 1C
Satin black
 191 419 091 B 0 1C
Satin black
 171 419 669 J 0 1C
Black
 191 419 091 E 1 BX
Satin black S 707,S 712
 191 419 669 B 0 1C
Satin black
 171 419 655 A 0 1C
saddle brown replacement: 171 419 655 A(01 C)
171 419 655 A(01 C)
 171 419 655 A 9 0V
saddle brown
 171 419 791 A 9 0V
Satin black
 171 419 791 A 0 1C
Satin black
 861 419 669 0 1C
Satin black
 171 419 669 M 0 1C
saddle brown
 171 419 669 M 9 0V
Satin black
 171 419 657 0 1C
Satin black
 171 419 669 R 0 1C
(1)
steering wheel withdeformation element F >> 15-C-024 000*F >> 16-C-770 000*F >> 17-C-770 000*F >> 53-C-058 000*
 171 419 091 D
(2)
sports steering wheel(leather)
 191 419 091 E
(2)
sports steering wheel
 191 419 091 B
(31)
Cover cap for steering wheelfor models with passiverestraint system GOLF
 171 419 669 J
(32)
Cover cap for sports steer. wh 'TUBO-DIESEL' GOLF GTD
'TUBO-DIESEL'
 171 419 669 P
(32)
Cover cap for sports steer. wh GOLF GTI:
 191 419 669 B
(32)
Cover cap for sports steer. wh 'GTI' GOLF GTI
'GTI'
 171 419 669 L
(32)
Cover cap for sports steer. wh 'SCIROCCO' SCIR.
'SCIROCCO'
 171 419 669 M
(32)
Cover cap for sports steer. wh 'LX' GOLF LX
'LX'
 171 419 669 R
(41)
Clamping washer 3,7
3,7
 2TA 853 582
(43)
Hexagon nut M 16
M 16
 N 011 164 15
(6)
Pressure spring
 481 419 343 B
(7)
steering tube automatic
 171 419 503 A
(7)
steering tubefor models with powersteering
 171 419 503 A
1
steering wheel withdeformation element F >> 16-C-770 000*F >> 17-C-770 000*
 171 419 091 C
10
needle bearing -for models with powersteering
 171 419 517
10
needle bearing - automatic
 171 419 517
11
needle bearing race automatic
 171 419 518 A
11
needle bearing racefor models with powersteering
 171 419 518 A
12
Thrust ring
 171 419 539
13
Clamping sleeve
 171 419 549
14
steering column tube
 171 419 563 C
15
sheer bolt
 411 417 549
16
Washer 8,4
8,4
 111 129 720
17
bearing ring
 171 419 587 B
18
Clip
 171 419 589
19
leaf spring
 171 419 591
2
sports steering wheel
 171 419 091 J
20
Protective cap
 171 419 597
21
oval head panel screw 4,2 X 9,5
4,2 X 9,5
 N 013 965 5
22
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
22
Washer A 8,4
A 8,4
 N 011 525 13
23
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
23
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
24
Socket head bolt withhexagon socket head M 8 X 22
M 8 X 22
 N 014 709 1
24A
horn button for steering wheel: 171 419 091 J
171 419 091 J
 171 419 657
25
return ring with slipring for steering wheel: 171 419 091 C 171 419 091 D 171 419 655 A
171 419 091 C 171 419 091 D 171 419 655 A
 113 415 660 A
26
return ring with slipring for steering wheel: 171 419 091 J 191 419 091 B 191 419 091 E
171 419 091 J 191 419 091 B 191 419 091 E
 321 419 660
27
return ring with slipring for steering wheel: 165 MM 865 419 655 B GOLF C,CI;JETTA C,CI
165 MM 865 419 655 B
 321 419 661 A
29
fillister head bolt (combi.) M 3,5 X 10 Z 5
M 3,5 X 10 Z 5
 N 090 221 1
29
fillister head bolt (combi.) M 3,5 X 10 Z 5
M 3,5 X 10 Z 5
 N 090 221 2
3
steering wheel, padded
 171 419 655 A
30
Cover cap for steering wheel for steering wheel:F >> 15-C-024 000*F >> 16-C-770 000*F >> 17-C-770 000*F >> 53-C-058 000* 171 419 091 D 171 419 091 C
171 419 091 D 171 419 091 C
 171 419 669 H
31
Cover cap for steering wheel
 171 419 669 K
32
Cover cap for sports steer. wh
 171 419 669 N
34
Cover cap for steering wheel GOLF C,CT;JETTA C,CI
 861 419 669
35
Pressure spring for steering wheel: 171 419 091 C 171 419 091 D 171 419 655 A
171 419 091 C 171 419 091 D 171 419 655 A
 171 419 697
36
Insulating bush
 321 419 779 A
37
Toothed washer 4,3
4,3
 N 012 121 2
38
Hexagon bolt M 4 X 20
M 4 X 20
 N 010 262 2
39
Steering wheel trim for steering wheel:F >> 15-C-024 000*F >> 16-C-770 000*F >> 17-C-770 000*F >> 53-C-058 000* 171 419 091 C 171 419 091 D
171 419 091 C 171 419 091 D
 171 419 791 A
4
steering wheel, padded GOLF C,CI;JETTA C,CI
 865 419 655 B
41
Clamping washer 3,7
3,7
 T00 853 582
41
Clamping washer 4
4
 N 012 854 3
42
Spring washer 16
16
 N 012 238 5
43
Hexagon nut M 16
M 16
 N 011 164 17
43
Hexagon nut M 16
M 16
 N 011 164 2
5
Thrust ring
 171 419 341
6
Pressure spring
 171 419 343 A
7
steering tube
 171 419 505 B
8
locking shell
 111 415 521 D
9
ball bearing
 171 419 517 B

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1982 - 1983
Generation region
RDW
Generation code
007
Factory group
30 Steering
Factory subgroup
104000

Related factory diagrams

Other published steering plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the steering wheelsteering tube diagram for the Mk1 Golf?
This diagram lists 88 OEM part numbers for the Mk1 Golf. The first three are 171 419 669 N 0 1C, 171 419 669 N 9 0V and 171 419 669 H 9 0V.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
