Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Steering gear track rodoil container connection parts hoses — Mk1 Golf Steering (1982 - 1983)

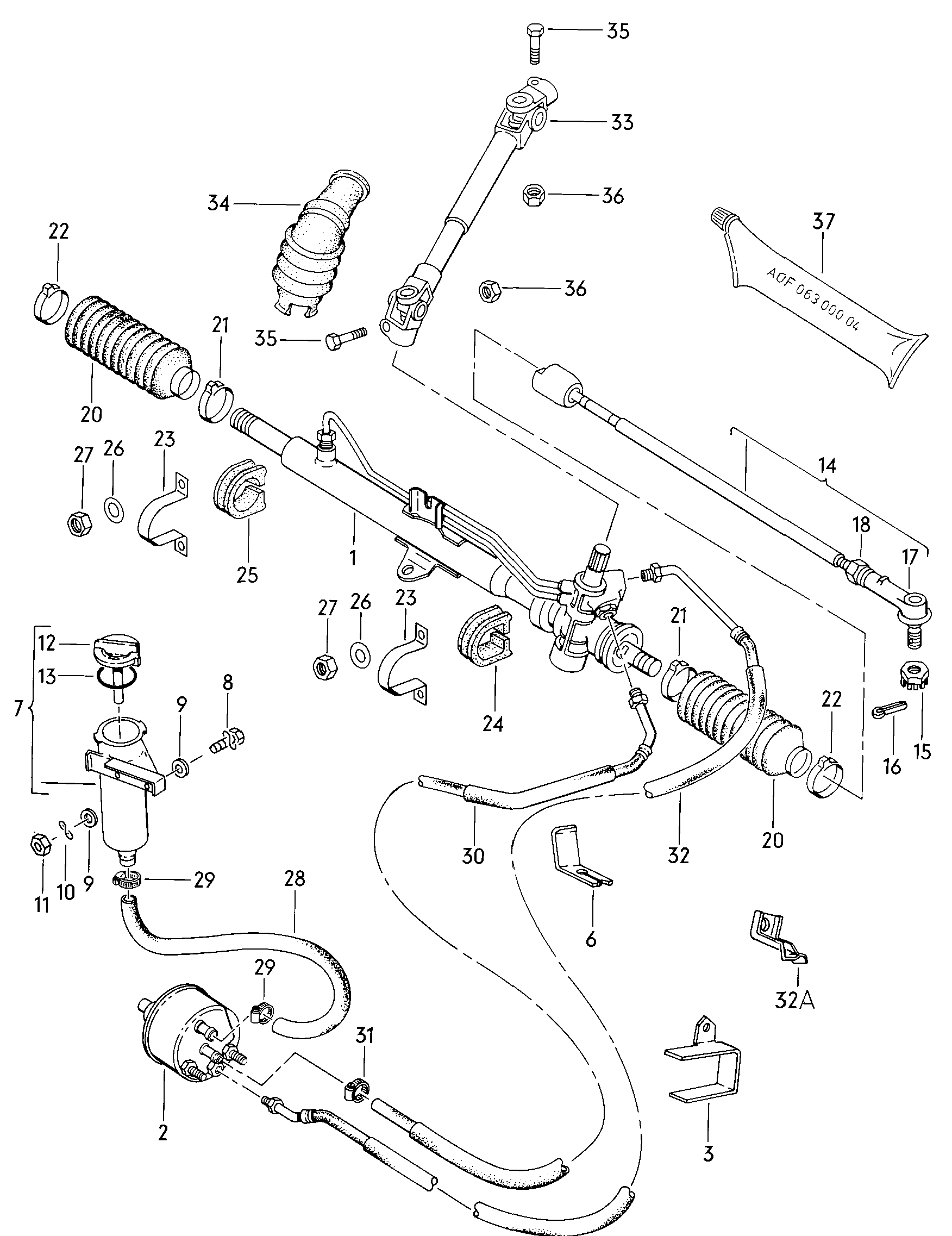

Factory title: Volkswagen Golf (1982 - 1984) - Track rod. oil container and connection parts, hoses. Steering gear

Generation: Mk1 1982 - 1983 (RDW) Group: Steering Parts: 60 Primary OEM: N 013 887 3, G 052 162 A2, 171 419 547 A

Steering gear track rodoil container connection parts hoses for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 105000 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 58 OEM part numbers across 60 catalogued positions including N 013 887 3, G 052 162 A2 and 171 419 547 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 58 OEM part numbers across 60 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Steering gear Track rodoil container and connectionparts, hoses powersteering GOLF:S 704 SCIR.:EW	—
-	hexagon head panel screw 5,5 X 16 5,5 X 16	N 013 887 3
-	atf (automatic transm. fluid)	G 052 162 A2
-	gasket for steering column	171 419 547 A
-	clamp 34,6 X 7 X 0,6 34,6 X 7 X 0,6	N 102 077 01
-	Spring washer 6 6	N 012 226 5
-	Lock nut M 22 M 22	171 419 855
-	Bracket diesel eng.	191 422 845
(1)	Steering gear automatic	175 422 061 A
(1)	Steering gear automatic	175 422 061 AX
(1)	Steering gear manualgearbox	175 422 061 X
(28)	Intake hose diesel eng.	175 422 881 A
(8)	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10
1	Steering gear manualgearbox	175 422 061
10	Spring washer 7 7	N 012 234 5
11	Hexagon nut M 6 M 6	N 011 006 24
11	Hexagon nut M 6 M 6	N 011 006 8
12	End cap	191 422 376 A
13	seal ring	175 422 383
14	Track rod	155 422 803
15	Castle nut M 12 X 1,5 M 12 X 1,5	N 011 212 2
16	split pin 3,2 X 25 3,2 X 25	N 012 532 1
16	split pin 3,2 X 28 3,2 X 28	N 012 533 1
17	tie rod end	171 419 812
18	Hexagon nut M 14 M 14	N 011 113 5
18	Hexagon nut M 14 M 14	N 011 163 3
2	Vane pump see illustration: 054-030 054-030	—
20	boot for tie rod	191 422 831
20	boot for tie rod also use: N 102 077 01 N 102 077 01	1H0 422 831 B
21	Clamp	357 422 837
21	Clamp	357 422 837 A
22	Clamp	1H0 422 839
22	Spring band clamp	357 422 839
23	Clamp	171 419 875
24	Rubber bush	175 422 883
25	Rubber bush	175 422 884
26	Washer 8,4 8,4	N 011 525 20
26	Washer 8,4 8,4	N 011 525 13
27	hexagon nut, self-locking M 8 M 8	N 022 146 4
28	Intake hose	175 422 887
29	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01
29	Clamp 16-27 16-27	N 900 719 01
3	Bracket	175 422 161 B
30	Return hose	175 422 891 D
31	Hose clamp 12-22 12-22	N 024 509 4
31	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
32	Expansion hose	175 422 893 D
32A	bracket for pressure line	175 422 931
33	Drive shaft	175 422 951 A
34	Prot. sleeve for drive shaft	171 419 523 A
35	Hexagon bolt M 8 X 38 M 8 X 38	N 010 359 4
36	hexagon nut, self-locking M 8 M 8	N 022 146 4
37	Steering gear grease 10 G 10 G	G 052 168 A1
37	Steering gear grease 250 G 250 G	AOF 063 000 04
6	Bracket	175 422 167 B
7	oil container also use: 191 422 845 N 013 887 3 diesel eng. 191 422 845 N 013 887 3	191 422 371 D
8	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 9
8	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 23
9	Washer 6,4 6,4	N 011 666 15
9	Washer 6,1 6,1	N 011 666 10

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these steering diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Factory group: 30 Steering
Factory subgroup: 105000
