Steering wheelsteering tube — Mk1 Golf Steering (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Track rod. Steering gear

Generation: Mk1 1979 - 1980 (RDW) Group: Steering Parts: 87 Primary OEM: 171 419 669 A 9 0V, 171 419 791 B 0 1C, 171 419 791 A 9 0V

Steering wheelsteering tube for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 67000 from the Volkswagen ETKA parts catalogue, group 30 Steering, listing 84 OEM part numbers across 87 catalogued positions including 171 419 669 A 9 0V, 171 419 791 B 0 1C and 171 419 791 A 9 0V. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 84 OEM part numbers across 87 numbered positions.

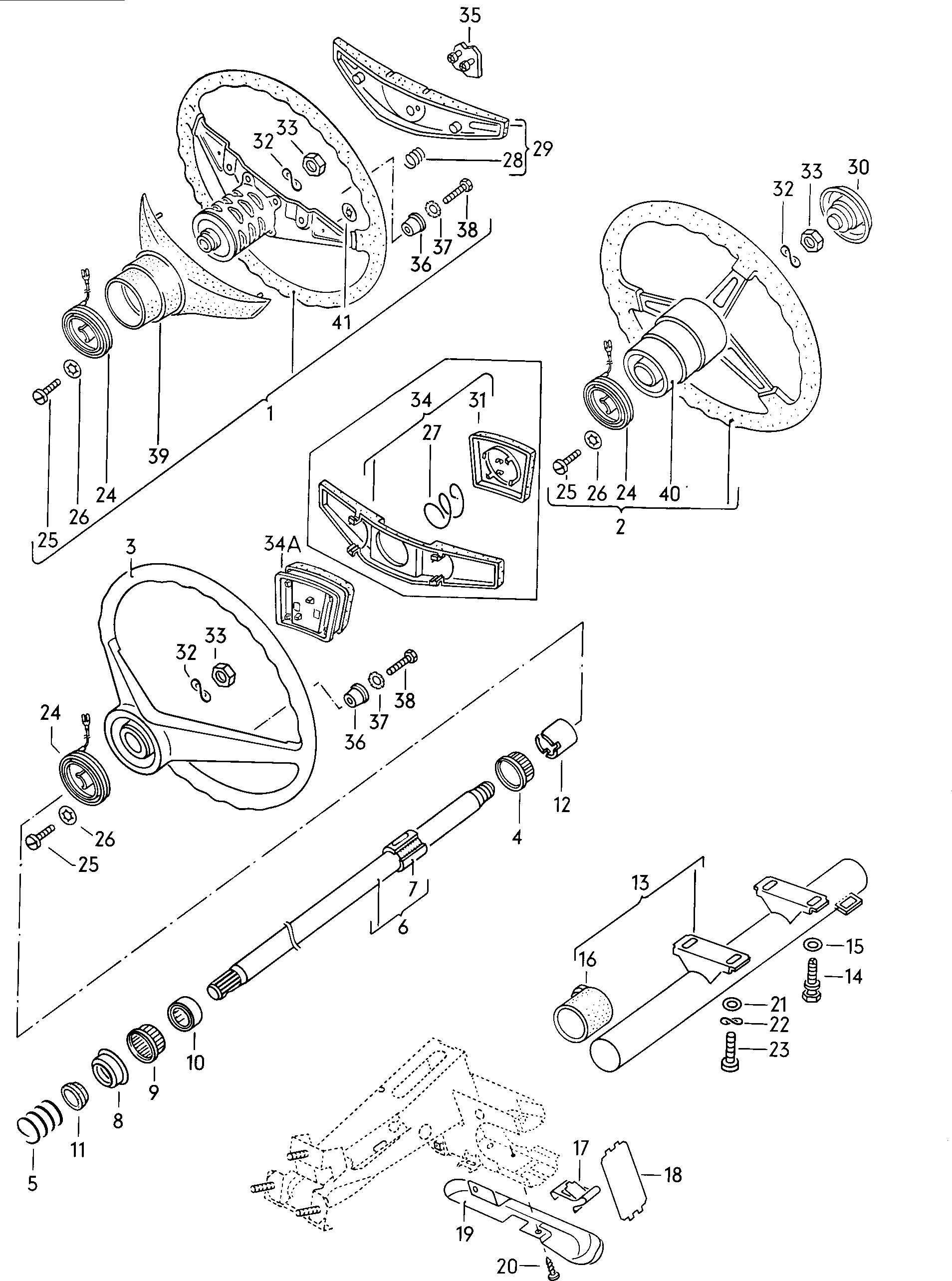

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
saddle brown
 171 419 669 A 9 0V
Satin black
 171 419 791 B 0 1C
saddle brown
 171 419 791 A 9 0V
ivy (green)
 171 419 091 D 6 6W
Satin black
 171 419 791 A 0 1C
Satin black
 171 419 091 F 0 1C
saddle brown
 171 419 091 F 9 0V
Satin black
 171 419 655 A 0 1C
saddle brown replacement: 171 419 655 A(01 C)
171 419 655 A(01 C)
 171 419 655 A 9 0V
ivy (green)
 171 419 655 A 6 6W
Satin black F 16 A 0000 001>>F 17 A 0000 001>> JETTA,S,EGOLF,S,D,E
 861 419 669 0 1C
saddle brown
 171 419 669 J 9 0V
saddle brown
 171 419 669 F 9 0V
Satin black
 171 419 669 F 0 1C
saddle brown
 171 419 669 J 9 0V
Satin black
 171 419 669 J 0 1C
ivy (green)
 171 419 669 E 6 6W
saddle brown
 171 419 669 E 9 0V
Satin black
 171 419 669 E 0 1C
Satin black
 171 419 669 H 0 1C
saddle brown
 171 419 669 H 9 0V
saddle brown
 171 419 669 K 9 0V
Satin black
 171 419 669 K 0 1C
Satin black
 171 419 669 A 0 1C
Satin black
 171 419 091 C 0 1C
Satin black
 171 419 091 D 0 1C
saddle brown
 171 419 091 D 9 0V
(1)
steering wheel withdeformation element GOLF;JETTA
 171 419 091 C
(24)
return ring with slipring F 16 A 0000 001>>F 17 A 0000 001>> 165 MM JETTA,S,EGOLF,S,D,E
165 MM
 321 419 661 A
(29)
Cover cap for steering wheel
 171 419 669 E
(29)
Cover cap for steering wheel
 171 419 669 A
(29)
Cover cap for steering wheel also use: 321 419 779 A
321 419 779 A
 171 419 669 K
(29)
Cover cap for steering wheel
 171 419 669 J
(3)
steering wheel, padded F 16 A 0000 001>>F 17 A 0000 001>> JETTA,S,EGOLF,S,D,E
 865 419 655 B
(3)
steering wheel, padded
 171 419 655 A
(30)
Cover cap for steering wheel
 171 419 669 J
(36)
Insulating bush
 321 419 779 A
(5)
Pressure spring
 481 419 343 B
(6)
steering tube automatic
 171 419 503 A
1
steering wheel withdeformation element
 171 419 091 D
10
needle bearing race automatic
 171 419 518 A
11
Thrust ring
 171 419 539
12
Clamping sleeve
 171 419 549
13
steering column tube
 171 419 563 C
14
sheer bolt
 411 417 549
15
Washer 8,4
8,4
 111 129 720
16
bearing ring
 171 419 587 B
17
Clip
 171 419 589
18
leaf spring
 171 419 591
19
Protective cap F >> 159 2804 755 F 16 A 0000 001>>F 179 2000 001>>F 539 2000 001>>
 171 419 597
2
sports steering wheel SCIR.
 171 419 091 F
20
oval head panel screw 4,2 X 9,5
4,2 X 9,5
 N 013 965 5
21
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
21
Washer A 8,4
A 8,4
 N 011 525 13
22
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
22
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
23
Socket head bolt withhexagon socket head M 8 X 22
M 8 X 22
 N 014 709 1
24
return ring with slipring
 113 415 660 A
25
fillister head bolt (combi.) M 3,5 X 10 Z 5
M 3,5 X 10 Z 5
 N 090 221 1
26
Toothed washer J 3,7
J 3,7
 N 012 131 2
26
No longer available J 3,7
J 3,7
 —
27
Pressure spring F >> 179 3750 000 GOLF,S,D,E
 171 419 668
28
Pressure spring
 171 419 697
29
Cover cap for steering wheel for steering wheel: 171 419 091 D,171 419 091 C
171 419 091 D,171 419 091 C
 171 419 669 H
3
steering wheel F >> 179 3750 000 GOLF,S,D,E
 171 419 655
30
Cover cap for sports steer. wh SCIR.
 171 419 669 F
31
pad for hornoperation F >> 179 3750 000 GOLF,S,D,E
 171 419 671
32
Spring washer 16
16
 N 012 238 5
33
Hexagon nut M 16 X 1,5
M 16 X 1,5
 N 011 164 15
33
Hexagon nut M 16 X 1,5
M 16 X 1,5
 N 011 164 2
34
No longer available F >> 179 3750 000 GOLF,S,D,E
 —
34
Cover cap for steering wheel F >> 179 3750 000 GOLF,S,D,E
 171 419 669
34A
Cover cap for steering wheel
 861 419 669
35
Badge 171 419 669 A 171 419 669 E 171 419 669 F
171 419 669 A 171 419 669 E 171 419 669 F
 171 419 685 A
36
Insulating bush
 321 419 779
37
Toothed washer 4,3
4,3
 N 012 121 2
38
Hexagon bolt M 4 X 20
M 4 X 20
 N 010 262 2
39
No longer available
 —
39
Steering wheel trim
 171 419 791 A
40
Steering wheel trim Sportsversion+SCIR.
 171 419 791 B
41
Clamping washer 4
4
 N 012 854 3
41
Clamping washer 3,7
3,7
 2TA 853 582
5
Pressure spring
 171 419 343 A
6
steering tube
 171 419 505 B
7
locking shell
 111 415 521 D
8
ball bearing
 171 419 517 B
9
needle bearing - automatic
 171 419 517
