Anti locking brake syst abs f 1 e s 021 846 lhd — Mk3 Golf Brake (1994 - 1997)
Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Anti-locking brake syst. -abs

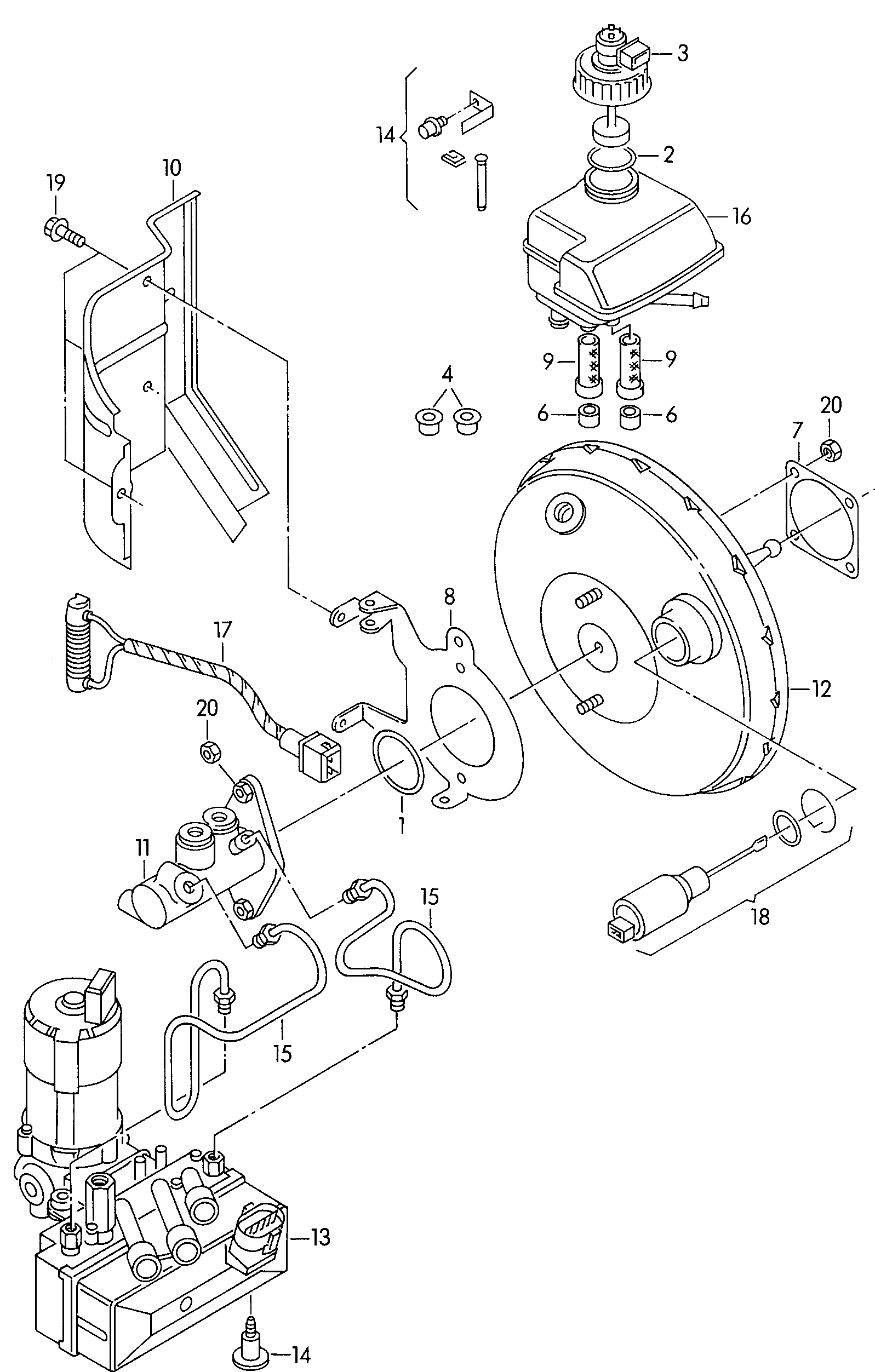

Anti locking brake syst abs f 1 e s 021 846 lhd for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 614030 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 25 OEM part numbers including 1H0 698 311, 1H1 698 019 A and 1H1 698 217 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 25 OEM part numbers across 25 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | 1 set assembly parts | 1H0 698 311 |
| (11) | Brake master cylinder withassembly parts 23,81 MM 23,81 MM | 1H1 698 019 A |
| (13) | Hydraulics control unit withassembly parts ABS+EDS 23,81 MM ABS+EDS 23,81 MM | 1H1 698 217 B |
| (14) | Fasteners ABS+EDS ABS+EDS | 1H1 698 312 A |
| (15) | Brake pipe ABS+EDS ABS+EDS | 1H1 698 705 A |
| (8) | Support platefor vehicles with electronicdifferential lock -edl- | 1H1 614 191 A |
| 1 | gasket betweenbrake servo andbraketandem master cylinder | 1H1 611 243 |
| 10 | Heat shield | 1H1 614 321 B |
| 12 | brake servo with attachmentparts | 1H1 698 107 A |
| 13 | Hydraulics control unit withassembly parts ABS 23,81 MM ABS 23,81 MM | 1H1 698 117 F |
| 14 | Fasteners ABS ABS | 1H1 698 312 |
| 15 | Brake pipe ABS ABS | 1H1 698 705 |
| 16 | reservoir with attachmentparts | 6K1 698 301 |
| 17 | Resistor EDS EDS | 1H1 907 398 A |
| 18 | distance sensor withattachment parts | 357 927 810 |
| 19 | Hexagon bolt M 6 X 8 M 6 X 8 | N 904 832 01 |
| 2 | seal ring | 893 611 347 |
| 20 | Hexagon collar nutself-locking M 8 M 8 | N 902 264 03 |
| 20 | hexagon nut, self-locking BM 8 BM 8 | N 902 891 01 |
| 3 | cap forexpansion tank 45,5 MM 45,5 MM | 6K1 611 349 A |
| 4 | Bungs Adapter | 1H1 611 817 A |
| 6 | Bungs Brake master cylinder | 1H1 611 817 |
| 7 | Seal | 1H0 612 161 |
| 8 | Support plate | 1H1 614 191 |
| 9 | Connecting hose | 1H1 614 193 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1994 - 1997
- Generation region
- RDW
- Generation code
- 146
- Factory group
- 20 Brake
- Factory subgroup
- 614030
