Disc brake front — Mk3 Golf Brake (1995)
Factory title: Volkswagen Golf (1995) - Disc brake

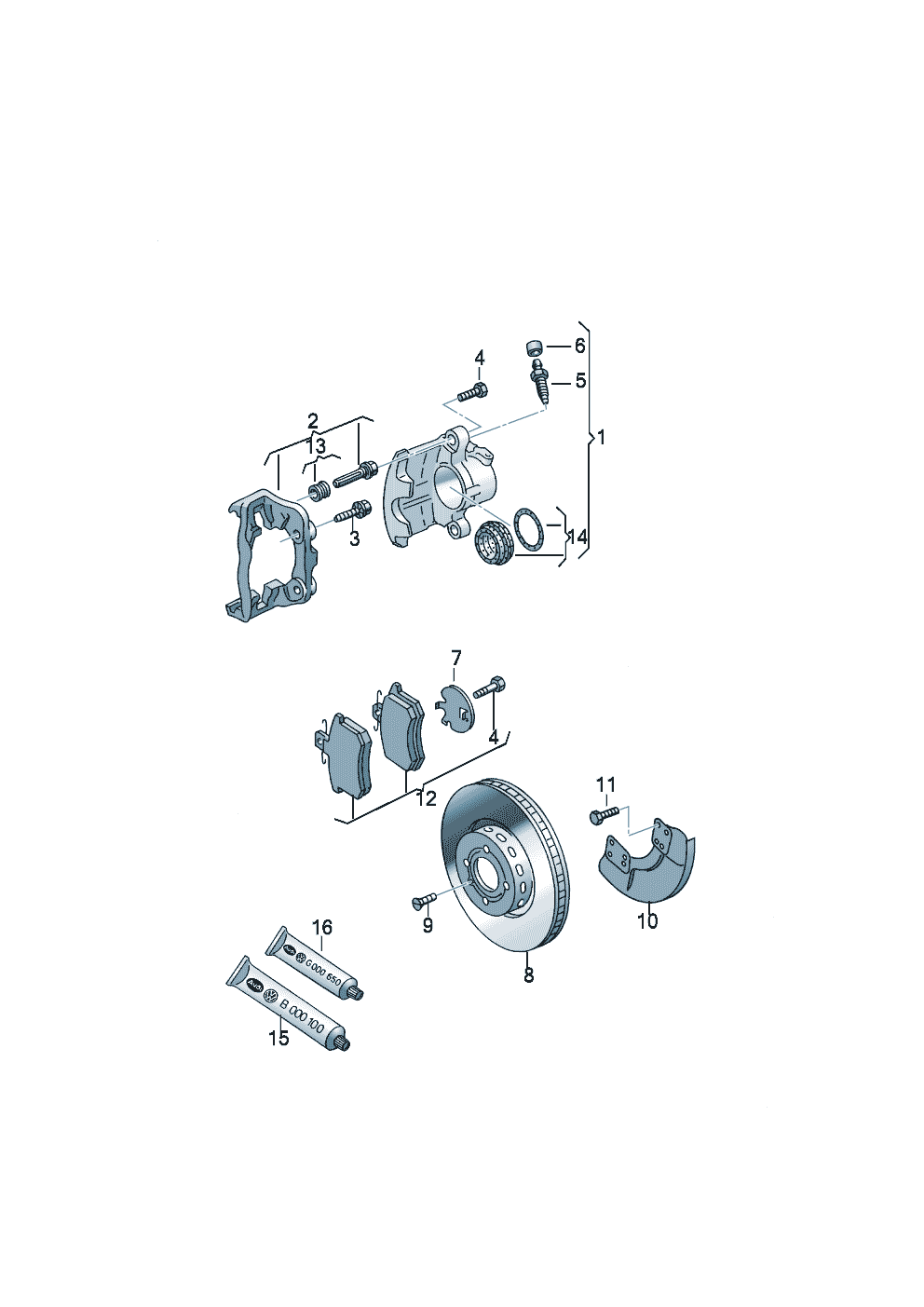

Disc brake front for the Volkswagen Golf Mk3 (1995): factory exploded diagram 615020 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 32 OEM part numbers across 33 catalogued positions including 1H0 698 993, 6E0 615 193 and 6Q0 615 193. Parts on this plate carry the engine code AEK. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 32 OEM part numbers across 33 numbered positions.
| № | Description | Part number |
|---|---|---|
| disc brake with calipermark ii Brake disc D - 01.06.1995>>* front 1 ZCL,GL:AEKADZAutomatic+AAM,ADZCL,GL:AEK front AEK | — | |
| - | adhesive layer forbrake pad | 1H0 698 993 |
| - | Air guide | 6E0 615 193 |
| - | Air guide | 6Q0 615 193 |
| - | Air guide | 1H0 615 194 B |
| - | Air guide | 1H0 615 193 A |
| - | 1 set: brake caliper housing | 1H0 698 480 X |
| - | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| - | Air guide | 6E0 615 194 |
| - | Air guide | 6Q0 615 194 |
| (1) | Brake caliper housing | 1H0 615 124 BX |
| (10) | Cover plate for brake disc | 357 615 311 A |
| (12) | 1 set of brake pads withwear display for discbrakes 'ECO'Economy | JZW 698 151 F |
| (8) | Brake disc 256 X 13 4/100 256 X 13 4/100 | 357 615 301 |
| 1 | Brake caliper housing | 1H0 615 123 BX |
| 1 | Brake caliper housing | 1H0 615 123 B |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 905 293 01 |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 010 210 7 |
| 12 | 1 set of brake pads fordisk brake | 357 698 151 B |
| 13 | 1 set protective sleevesfor guide pins | 443 698 470 |
| 14 | Set of gaskets for brakecaliper housing | 431 698 471 B |
| 15 | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| 16 | Solid lubricant paste 100 G 100 G | G 000 650 |
| 2 | brake carrier withpad retaining pin | 357 615 125 A |
| 3 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 901 740 01 |
| 3 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 907 085 02 |
| 4 | bolt, hexagon headself-locking M 8 X 21 M 8 X 21 | 321 615 141 |
| 5 | Breather valve M 10 X 1 M 10 X 1 | 357 615 273 |
| 6 | dust cap | 211 611 483 |
| 7 | Intermediate plate | 357 615 231 |
| 9 | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
| 9 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 02 |
| 9 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 03 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1995
- Generation region
- RDW
- Generation code
- 159
- Engine codes on this plate
- AEK
- Factory group
- 20 Brake
- Factory subgroup
- 615020
