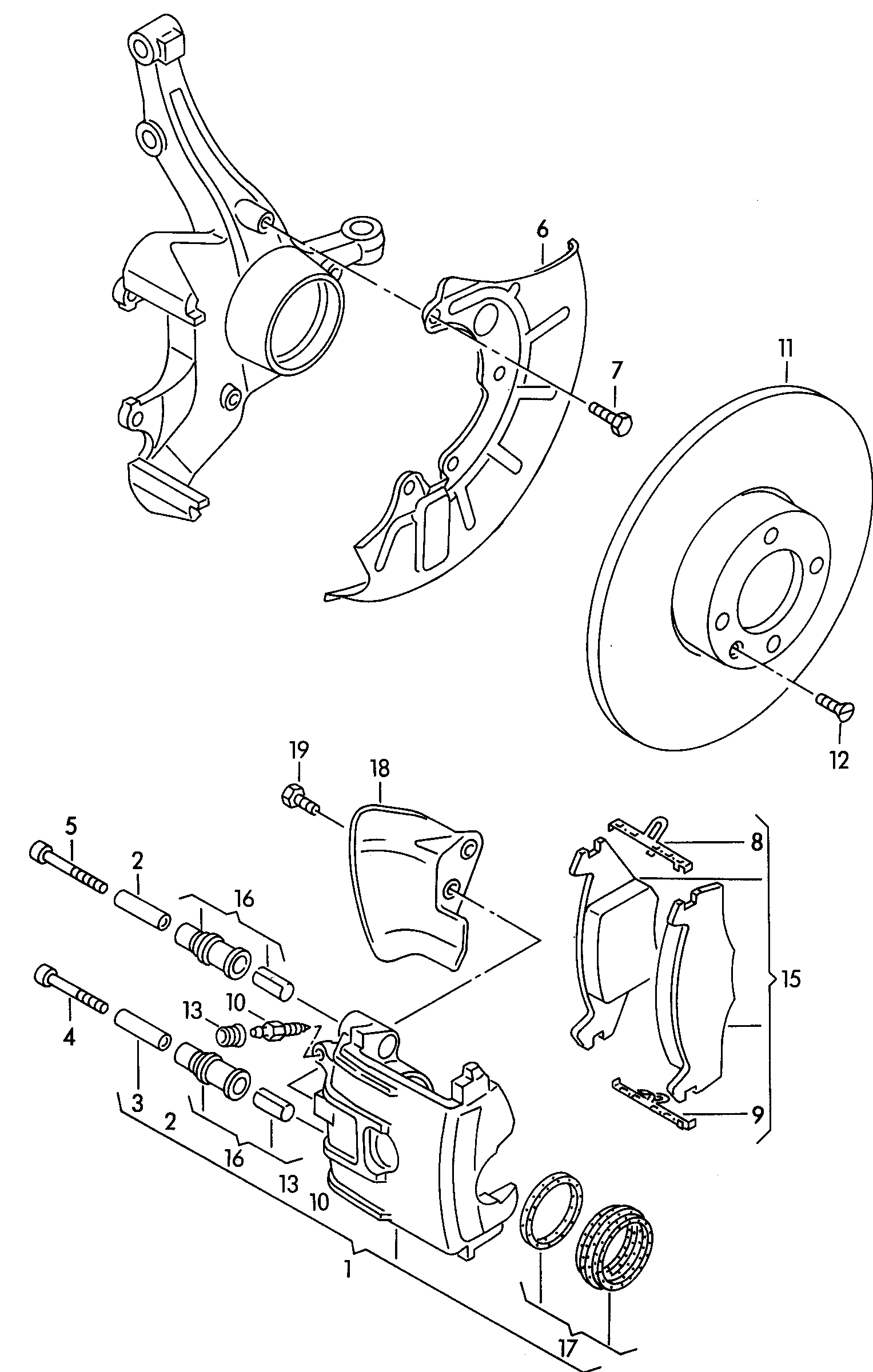

Disc brake front — Mk3 Golf Brake (1995)
Factory title: Volkswagen Golf (1995) - Disc brake
Disc brake front for the Volkswagen Golf Mk3 (1995): factory exploded diagram 615015 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 34 OEM part numbers across 35 catalogued positions including 171 698 993, 1H0 698 461 X and G 000 650. Parts on this plate carry the engine codes AAM, AAZ, ABD, ABU, ADZ, AEA and AEY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 34 OEM part numbers across 35 numbered positions.
| № | Description | Part number |
|---|---|---|
| Floating caliper brake Brake caliper housing D >> - 31.05.1995* front ABD,AAM,ABS 1 Y,AAZ,AEA,AEY,ABU,ADZ,Automatic+AAM,ADZecomatic 1 Y front AAMAAZABDABUADZAEAAEY | — | |
| - | adhesive layer forbrake pad | 171 698 993 |
| - | 1 set: brake caliper withbrake pads (without brakecarrier) | 1H0 698 461 X |
| - | Solid lubricant paste 100 G 100 G | G 000 650 |
| - | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| - | adhesive layer forbrake pad | 1H0 698 993 |
| (1) | Brake caliper housing | 1H0 615 124 A |
| (18) | Air guide | 1H0 615 194 B |
| (18) | Air guide | 6E0 615 194 |
| (18) | Air guide | 6Q0 615 194 |
| (6) | Cover plate for brake disc | 191 615 312 B |
| 1 | Brake caliper housing | 1H0 615 123 A |
| 10 | Breather valve M 10 X 1 M 10 X 1 | 357 615 273 |
| 11 | Brake disc 239 X 12 4/100 239 X 12 4/100 | 321 615 301 |
| 12 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 03 |
| 12 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 02 |
| 12 | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
| 13 | dust cap | 211 611 483 |
| 15 | 1 set of brake pads fordisk brake "J.." | 191 698 151 K |
| 15 | 1 set of brake pads fordisk brake 239 X 12 MM 239 X 12 MM | 1H0 698 151 |
| 16 | 1 set: guide bushes | 171 698 447 A |
| 17 | Set of gaskets for brakecaliper housing | 171 698 471 B |
| 18 | Air guide | 1H0 615 193 A |
| 18 | Air guide | 6E0 615 193 |
| 18 | Air guide | 6Q0 615 193 |
| 19 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| 2 | guide sleeve 45 MM 45 MM | 171 615 221 |
| 3 | guide sleeve 35 MM 35 MM | 171 615 221 A |
| 4 | Socket head bolt withhexagon socket head M 8 X 49 M 8 X 49 | N 903 291 04 |
| 5 | Socket head bolt withhexagon socket head M 8 X 59 M 8 X 59 | N 903 292 05 |
| 6 | Cover plate for brake disc | 191 615 311 A |
| 7 | Hexagon bolt M 6 X 10 M 6 X 10 | N 010 210 7 |
| 7 | Hexagon bolt M 6 X 10 M 6 X 10 | N 905 293 01 |
| 8 | retaining spring | 191 615 269 A |
| 9 | retaining spring | 191 615 270 A |
