Which VW part numbers are on the anti locking brake syst abs lhd diagram for the Mk3 Golf?

This diagram lists 26 OEM part numbers for the Mk3 Golf. The first three are 1H0 698 311 A, 1H1 698 019 B and 3A1 698 019.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Anti locking brake syst abs lhd — Mk3 Golf Brake (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Anti-locking brake syst. -abs

Generation: Mk3 1997 (RDW) Group: Brake Rebuild step 10 Parts: 27 Primary OEM: 1H0 698 311 A, 1H1 698 019 B, 3A1 698 019

Anti locking brake syst abs lhd for the Volkswagen Golf Mk3 (1997): factory exploded diagram 614031 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 26 OEM part numbers across 27 catalogued positions including 1H0 698 311 A, 1H1 698 019 B and 3A1 698 019. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 26 OEM part numbers across 27 numbered positions.

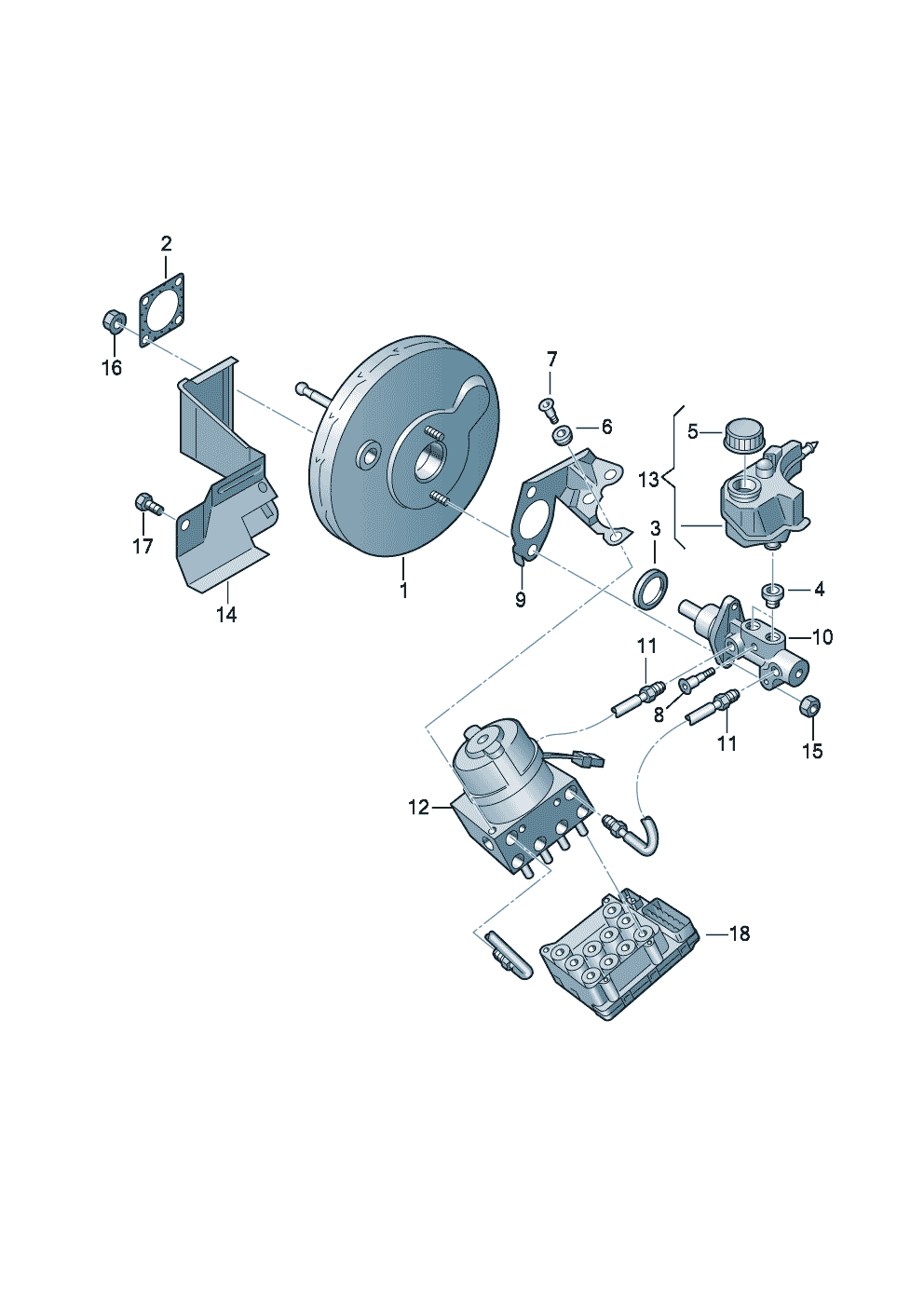

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	1 set assembly parts	1H0 698 311 A
(10)	Brake master cylinder withassembly parts 22,2 MM 22,2 MM	1H1 698 019 B
(10)	Brake master cylinder withassembly parts 23,81 MM 23,81 MM	3A1 698 019
(12)	Hydraulics control unit withassembly parts F 1 H-VW 123 001>>F 1 H-VB 030 001>>F 1 H-VP 103 001>>F 1 H-VD 093 001>> ABS ITT ABS ITT	1J0 698 117 A
(12)	Hydraulics control unit withassembly parts F >> 1 H-VW 123 000F >> 1 H-VB 030 000F >> 1 H-VP 103 000F >> 1 H-VD 093 000 ABS+EDS ITT ABS+EDS ITT	1H1 698 217 D
(12)	Hydraulics control unit withassembly parts F 1 H-VW 123 001>>F 1 H-VB 030 001>>F 1 H-VP 103 001>>F 1 H-VD 093 001>> ABS ITT ABS ITT	1J0 698 117
(12)	Hydraulics control unit withassembly parts F 1 H-VW 123 001>>F 1 H-VB 030 001>>F 1 H-VP 103 001>>F 1 H-VD 093 001>> ABS+EDS ITT ABS+EDS ITT	1J0 698 217 A
(12)	Hydraulics control unit withassembly parts F 1 H-VW 123 001>>F 1 H-VB 030 001>>F 1 H-VP 103 001>>F 1 H-VD 093 001>> ABS+EDS ITT ABS+EDS ITT	1J0 698 217
1	Brake servo	1H1 612 107 D
11	Brake pipe	1H0 698 705
12	Hydraulics control unit withassembly parts F >> 1 H-VW 123 000F >> 1 H-VB 030 000F >> 1 H-VP 103 000F >> 1 H-VD 093 000 ABS ITT ABS ITT	1H1 698 117 D
13	reservoir with attachmentparts	1H1 698 301 A
14	Heat shield	1H1 614 321 C
15	hexagon nut, self-locking M 8 M 8	N 900 744 01
16	Hexagon collar nutself-locking M 8 M 8	N 902 264 03
16	hexagon nut, self-locking BM 8 BM 8	N 902 891 01
17	Hexagon bolt M 6 X 8 M 6 X 8	N 904 832 01
18	see illustration, item: 927-000,1 927-000,1	—
2	Seal	1H0 612 161
29	Support plate	1H0 614 191
3	gasket betweenbrake servo andbraketandem master cylinder	1H1 611 243
4	Bungs 12/22 12/22	357 611 817
5	End cap	1H0 611 346
5	cap forexpansion tank	6N1 611 349 B
6	Damping element	1H1 614 147
7	Locating bolt	1H0 614 159
8	Locating bolt	1H1 614 159

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 20 Brake
Factory subgroup: 614031
