Floating caliper brake front — Mk3 Golf Brake (1995)
Factory title: Volkswagen Golf (1995) - Disc brake

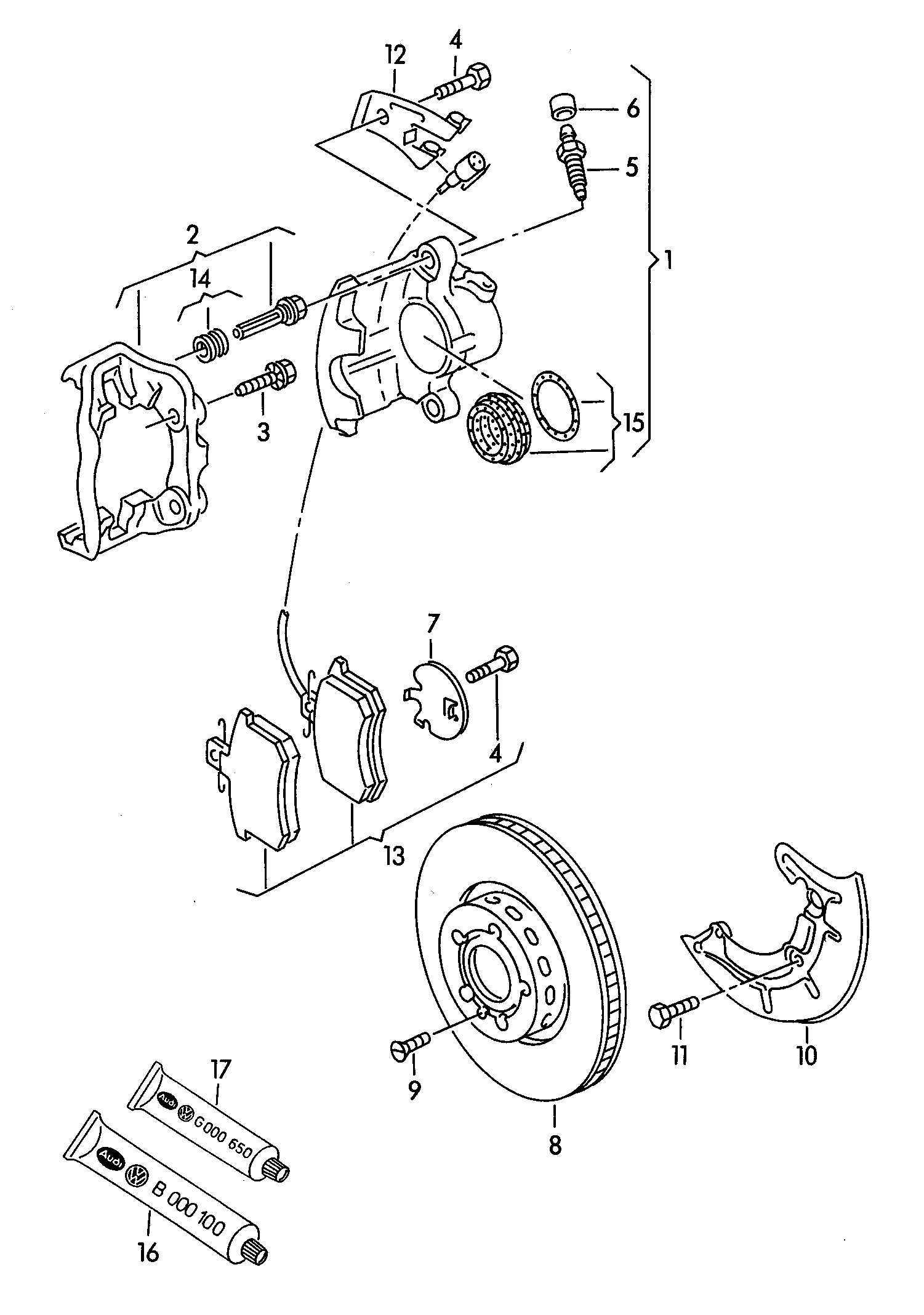

Floating caliper brake front for the Volkswagen Golf Mk3 (1995): factory exploded diagram 615035 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 30 OEM part numbers across 31 catalogued positions including 1H0 698 993, 357 615 124 C and 357 615 124 CX. Parts on this plate carry the engine codes ABF and ADY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 30 OEM part numbers across 31 numbered positions.
| № | Description | Part number |
|---|---|---|
| Floating caliper brake Brake caliper housingbrake carrier withpad retaining pin Brake disc (vented)F >> 1 H-SW 399 999*F >> 1 H-SB 090 146 front ABF,AFAGTI:ADY,2 E"J..":ABFAAA"J..":AAA front ABFADY | — | |
| - | adhesive layer forbrake pad | 1H0 698 993 |
| (1) | Brake caliper housing | 357 615 124 C |
| (1) | Brake caliper housing | 357 615 124 CX |
| (10) | Cover plate for brake disc | 3A0 615 312 |
| (12) | Cable holder | 357 615 134 |
| (13) | 1 set of brake pads withwear display for discbrakes 'ECO'Economy F 1 H-SW 560 001>>*F 1 H-SB 150 001>>* | JZW 698 151 F |
| (13) | 1 set of brake pads fordisk brake F 1 H-SW 560 001>>*F 1 H-SB 150 001>>* | 357 698 151 B |
| (7) | Intermediate plate | 357 615 232 |
| 1 | Brake caliper housing | 357 615 123 CX |
| 1 | Brake caliper housing | 357 615 123 C |
| 10 | Cover plate for brake disc | 3A0 615 311 |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 905 293 01 |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 010 210 7 |
| 12 | Cable holder | 357 615 133 |
| 13 | 1 set: brake pads withwear indicator for discbrake F >> 1 H-SW 560 000*F >> 1 H-SB 150 000* | 357 698 151 C |
| 14 | 1 set protective sleevesfor guide pins | 443 698 470 |
| 15 | Set of gaskets for brakecaliper housing | 431 698 471 B |
| 16 | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| 17 | Solid lubricant paste 100 G 100 G | G 000 650 |
| 2 | brake carrier withpad retaining pin | 357 615 125 C |
| 3 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 907 085 02 |
| 3 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 901 740 01 |
| 4 | bolt, hexagon headself-locking M 8 X 21 M 8 X 21 | 321 615 141 |
| 5 | Breather valve M 10 X 1 M 10 X 1 | 357 615 273 |
| 6 | dust cap | 211 611 483 |
| 7 | Intermediate plate | 357 615 231 A |
| 8 | Brake disc (vented) 280 X 22 5/100 280 X 22 5/100 | 1H0 615 301 A |
| 9 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 03 |
| 9 | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
| 9 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 02 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1995
- Generation region
- RDW
- Generation code
- 159
- Engine codes on this plate
- ABF, ADY
- Factory group
- 20 Brake
- Factory subgroup
- 615035
Related factory diagrams
Other published brake plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the floating caliper brake front diagram for the Mk3 Golf?
- This diagram lists 30 OEM part numbers for the Mk3 Golf. The first three are 1H0 698 993, 357 615 124 C and 357 615 124 CX.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1995 generation (RDW). The parts on it carry the engine codes ABF and ADY.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
