Which VW part numbers are on the anti locking brake syst abs rhd diagram for the Mk3 Golf?

This diagram lists 28 OEM part numbers for the Mk3 Golf. The first three are N 907 263 01, 1H0 698 311 A and 1H2 698 217.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Anti locking brake syst abs rhd — Mk3 Golf Brake (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Anti-locking brake syst. -abs

Generation: Mk3 1997 (RDW) Group: Brake Rebuild step 10 Parts: 29 Primary OEM: N 907 263 01, 1H0 698 311 A, 1H2 698 217

Anti locking brake syst abs rhd for the Volkswagen Golf Mk3 (1997): factory exploded diagram 614036 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 28 OEM part numbers across 29 catalogued positions including N 907 263 01, 1H0 698 311 A and 1H2 698 217. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 28 OEM part numbers across 29 numbered positions.

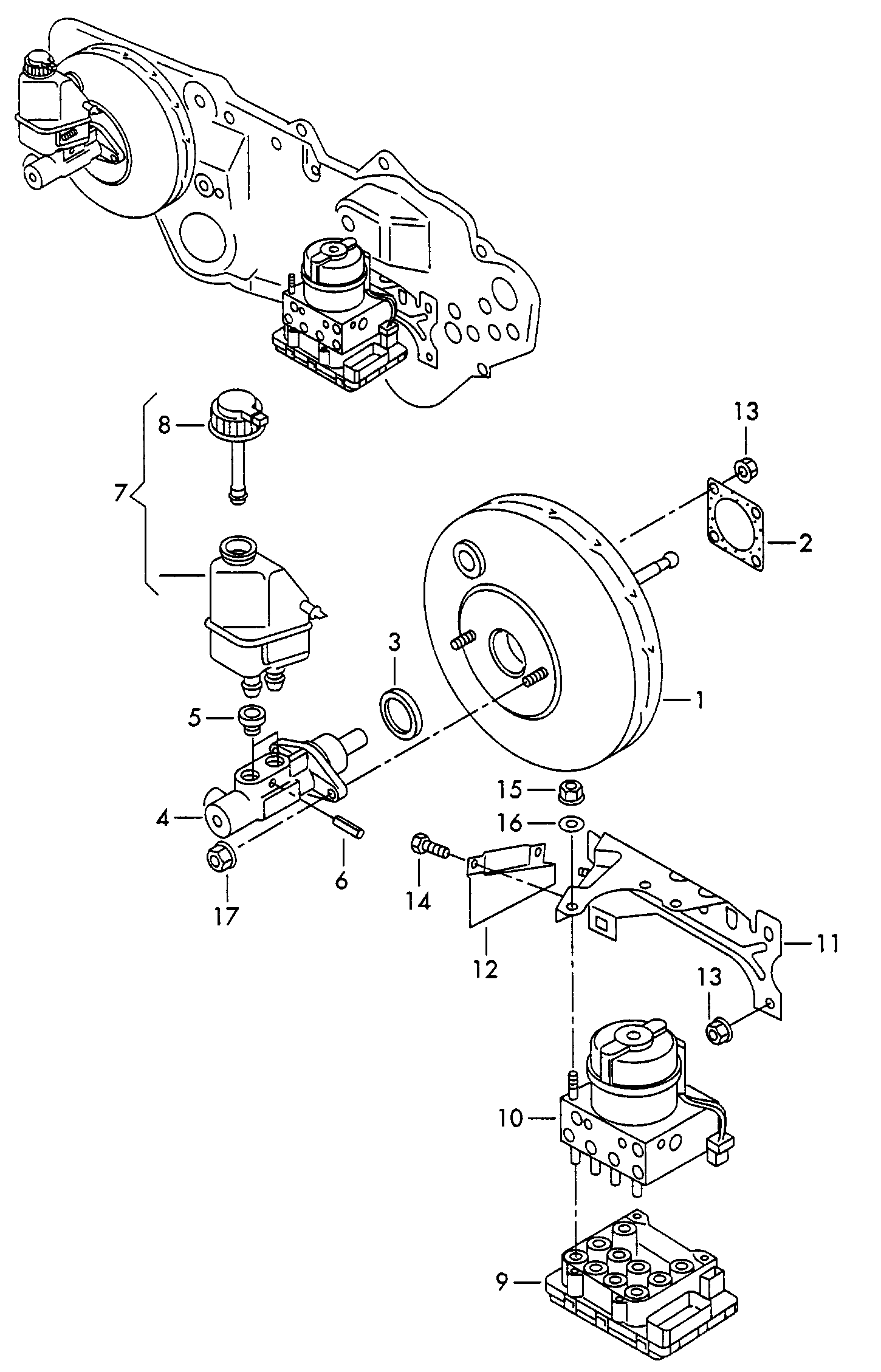

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Locating bolt M 6 X 8,6 X 28 M 6 X 8,6 X 28	N 907 263 01
-	1 set assembly parts	1H0 698 311 A
(10)	Hydraulics control unit withassembly parts F >> 1 H-VW 123 000F >> 1 H-VB 030 000F >> 1 H-VP 103 000F >> 1 H-VD 093 000 -ABS+EDS- -ABS+EDS-	1H2 698 217
(10)	Hydraulics control unit withassembly parts also use:F 1 H-VW 123 001>>F 1 H-VB 030 001>>F 1 H-VP 103 001>>F 1 H-VD 093 001>> ABS ITTN 907 263 01 ABS ITTN 907 263 01	1J0 698 117 A
(10)	Hydraulics control unit withassembly parts also use:F 1 H-VW 123 001>>F 1 H-VB 030 001>>F 1 H-VP 103 001>>F 1 H-VD 093 001>> ABSN 907 263 01 ABSN 907 263 01	1J0 698 117
(10)	Hydraulics control unit withassembly parts also use:F 1 H-VW 123 001>>F 1 H-VB 030 001>>F 1 H-VP 103 001>>F 1 H-VD 093 001>> ABS+EDS ITTN 907 263 01 ABS+EDS ITTN 907 263 01	1J0 698 217 A
(10)	Hydraulics control unit withassembly parts also use:F 1 H-VW 123 001>>F 1 H-VB 030 001>>F 1 H-VP 103 001>>F 1 H-VD 093 001>> ABS+EDSN 907 263 01 ABS+EDSN 907 263 01	1J0 698 217
(4)	Tandem brake master cylinder 23,81 MM PR:1 ZK,1 LY,1 LN 23,81 MM	6N0 614 019 A
(4)	Brake master cylinder withassembly parts 23,81 MM 23,81 MM	3A2 698 019
1	Brake servo	1H2 612 107 E
10	Hydraulics control unit withassembly parts F >> 1 H-VW 123 000F >> 1 H-VB 030 000F >> 1 H-VP 103 000F >> 1 H-VD 093 000 -ABS- -ABS-	1H2 698 117
11	Bracket	1H2 614 235
12	Heat shield	1H2 614 321 B
13	hexagon nut, self-locking BM 8 BM 8	N 902 891 01
13	Hexagon collar nutself-locking M 8 M 8	N 902 264 03
14	Hexagon bolt M 6 X 8 M 6 X 8	N 904 832 01
15	hexagon nut, self-locking M 6 M 6	N 022 148 1
15	hexagon nut, self-locking M 6 M 6	N 022 148 11
16	Washer R 7 X 22 X 2 R 7 X 22 X 2	N 011 612 3
16	Washer 7,4 X 22 X 2 7,4 X 22 X 2	N 011 667 2
17	hexagon nut, self-locking M 8 M 8	N 900 744 01
2	Seal 2,5 MM 2,5 MM	1H2 612 161
3	gasket betweenbrake servo andbraketandem master cylinder 41,5 X 2,5 41,5 X 2,5	357 611 243
4	Tandem brake master cylinder 22,20 MM PR:1 LG 22,20 MM	6N0 614 019
5	Bungs 12/22 12/22	357 611 817
6	spring pin	1H0 611 037
7	reservoir with attachmentparts	1H2 698 301
8	cap forreservoir with fluidlevel sender	6N2 611 349
9	see illustration: 927-000 927-000	—

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 20 Brake
Factory subgroup: 614036
