Anti locking brake syst abs f 1 e s 021 846 rhd — Mk3 Golf Brake (1994 - 1997)
Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Anti-locking brake syst. -abs

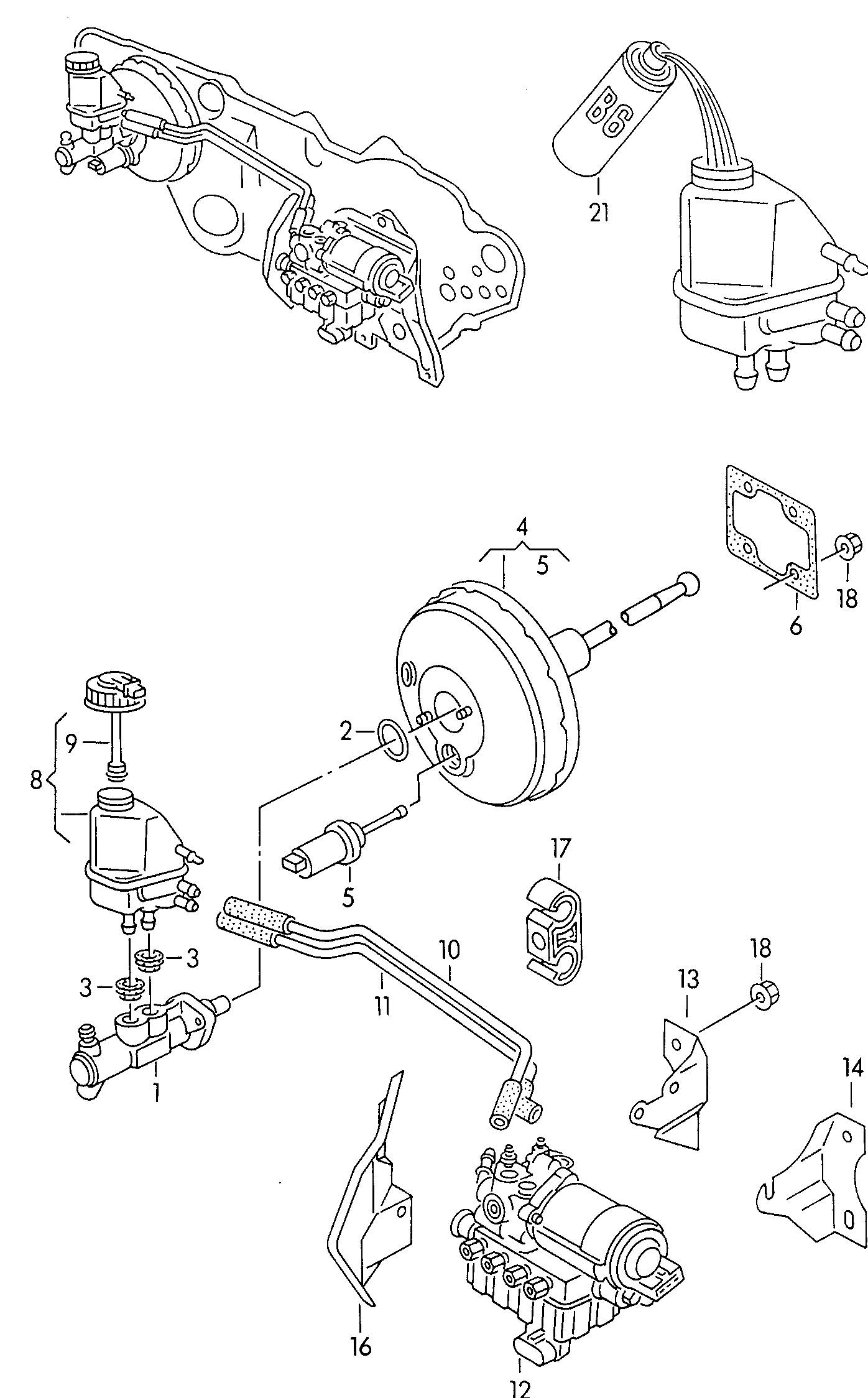

Anti locking brake syst abs f 1 e s 021 846 rhd for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 614035 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 35 OEM part numbers including 1H2 907 398, 1H2 614 736 A and 1H2 614 735 A. Parts on this plate carry the engine codes 2E and ADY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 35 OEM part numbers across 35 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | Resistor EDS EDS | 1H2 907 398 |
| (10) | resupply pipe DK 2 E,ADY DK 2EADY | 1H2 614 736 A |
| (11) | resupply pipe SK 2 E,ADY SK 2EADY | 1H2 614 735 A |
| (12) | Control and regulating unitfor vehicles with electronicdifferential lock -edl- 23,81 ATE 23,81 ATE | 1H2 614 217 A |
| (13) | Bracketfor vehicles with electronicdifferential lock -edl- | 1H2 614 237 |
| (14) | Bracketfor vehicles with electronicdifferential lock -edl- | 1H2 614 238 A |
| (16) | Heat shieldfor vehicles with electronicdifferential lock -edl- | 1H2 614 321 A |
| (21) | brake fluid | B 000 750 M3 |
| (21) | brake fluid | B 000 750 M9 |
| (21) | brake fluid | B 000 750 M7 |
| (21) | brake fluid | B 000 750 M6 |
| (21) | brake fluid | B 000 700 A6 |
| (21) | brake fluid | B 000 700 A3 |
| (8) | Reservoir | 1H2 614 301 |
| (9) | cap forreservoir with fluidlevel sender | 358 611 349 A |
| 1 | Tandem brake master cylinder 23,81 23,81 | 358 611 019 B |
| 1 | Tandem brake master cylinder 23,81 X 17/17 23,81 X 17/17 | 358 611 019 D |
| 10 | resupply pipe DK DK | 1H2 614 736 |
| 11 | resupply pipe SK SK | 1H2 614 735 |
| 12 | Control and regulating unit 23,81 ATE 23,81 ATE | 1H2 614 117 A |
| 12 | Control and regulating unitfor vehicles with electronicdifferential lock -edl- ATE ATE | 358 614 217 |
| 13 | Bracket | 1H2 614 137 |
| 14 | Bracket | 1H2 614 138 A |
| 16 | Heat shield | 1H2 614 321 |
| 17 | Bracket 10 MM 10 MM | 357 611 797 D |
| 18 | hexagon nut, self-locking M 8 M 8 | N 902 891 01 |
| 18 | Hexagon collar nutself-locking M 8 M 8 | N 902 264 03 |
| 2 | gasket betweenbrake servo andbraketandem master cylinder 41,5 X 2,5 41,5 X 2,5 | 357 611 243 |
| 21 | brake fluid | B 000 750 M1 |
| 21 | brake fluid | B 000 700 A1 |
| 3 | Bungs 12/22 12/22 | 357 611 817 |
| 4 | Brake servo 9" ATE 9" ATE | 1H2 612 107 A |
| 4 | Brake servo | 1H2 612 107 C |
| 5 | distance sensor withattachment parts | 357 927 810 |
| 6 | Seal | 1H0 612 161 |
