Brake master cylinder reservoirbrake fluid — Mk3 Golf Brake (1994 - 1997)

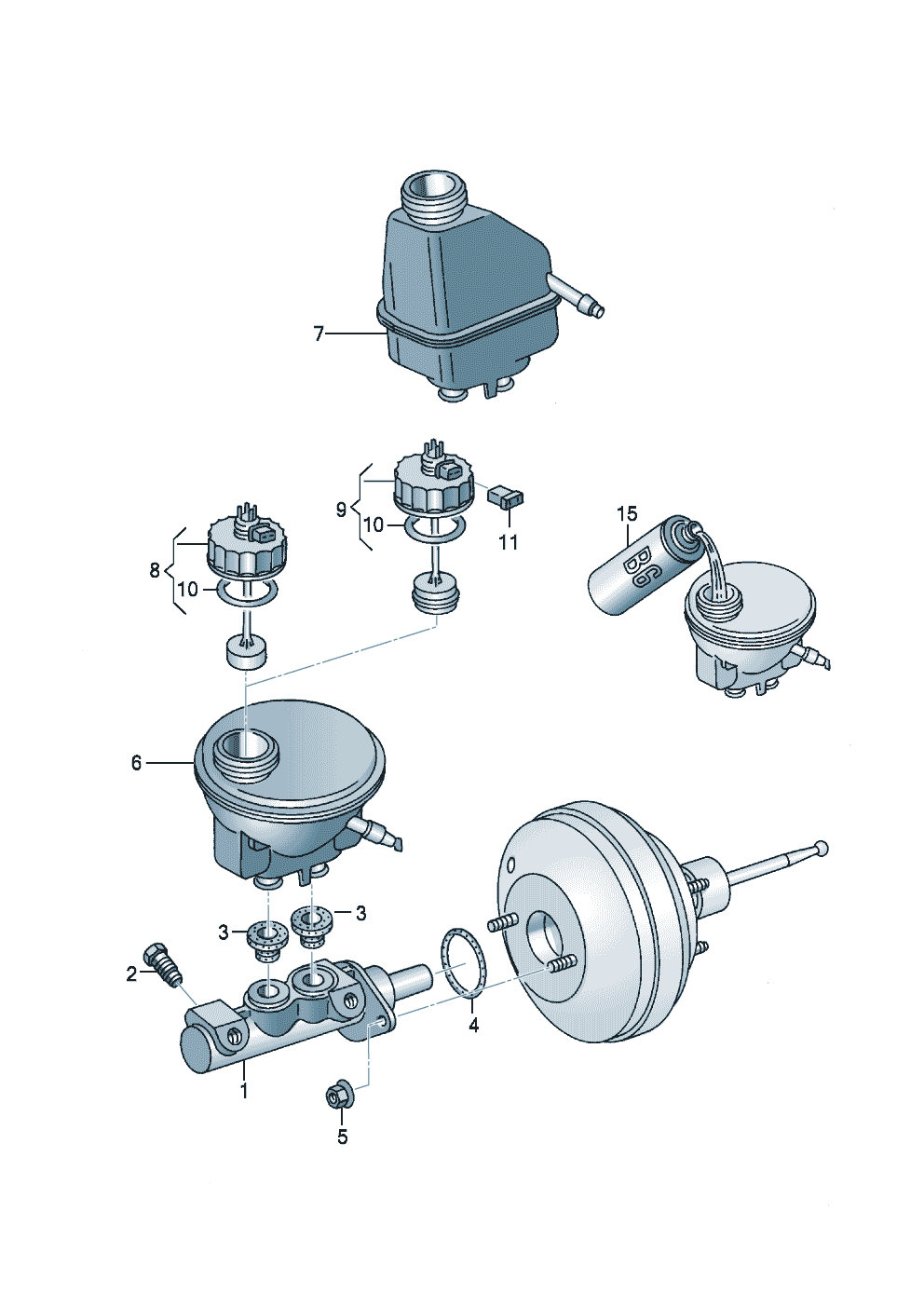

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Reservoir. brake fluid. Brake master cylinder
Brake master cylinder reservoirbrake fluid for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 611010 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 24 OEM part numbers including 1H0 611 037, 357 612 163 and B 000 750 M9. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 24 OEM part numbers across 24 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | spring pin | 1H0 611 037 |
| - | Heat shield | 357 612 163 |
| (15) | brake fluid | B 000 750 M9 |
| (15) | brake fluid | B 000 750 M6 |
| (15) | brake fluid | B 000 750 M3 |
| (15) | brake fluid | B 000 600 A6 |
| (15) | brake fluid | B 000 600 A3 |
| (15) | brake fluid | B 000 750 M7 |
| (7) | Reservoir forbrake fluid For vehicles with hydraulicclutch actuation | 1H2 611 301 A |
| (7) | Reservoir forbrake fluid For vehicles with hydraulicclutch actuation | 1H2 611 301 B |
| 1 | Tandem brake master cylinder also use: 22,2 X 16/18443 611 190 22,2 X 16/18443 611 190 | 357 611 019 B |
| 10 | seal ring | 893 611 347 |
| 11 | Flat contact housing | 443 906 231 |
| 15 | brake fluid | B 000 600 A1 |
| 15 | brake fluid | B 000 750 M1 |
| 2 | sealing plug M 10 X 1 M 10 X 1 | 443 611 190 |
| 3 | Bungs 12/22 12/22 | 357 611 817 |
| 4 | gasket betweenbrake servo andbraketandem master cylinder 41,5 X 2,5 41,5 X 2,5 | 357 611 243 |
| 5 | hexagon nut, self-locking M 8 M 8 | N 900 744 01 |
| 6 | Reservoir forbrake fluid | 1H1 611 301 A |
| 7 | Reservoir forbrake fluid | 1H2 611 301 |
| 8 | End capfor models withbrake warning light 53,5 MM 53,5 MM | 1H1 611 349 |
| 9 | cap forreservoir with fluidlevel senderfor models withbrake warning light 83 MM 83 MM | 358 611 349 |
| 9 | cap forreservoir with fluidlevel senderfor models withbrake warning light 83 MM 83 MM | 6N2 611 349 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1994 - 1997
- Generation region
- RDW
- Generation code
- 146
- Factory group
- 20 Brake
- Factory subgroup
- 611010
