Brake pipe brake hose brake pipe vehicles without anti lock — Mk3 Golf Brake (1997)

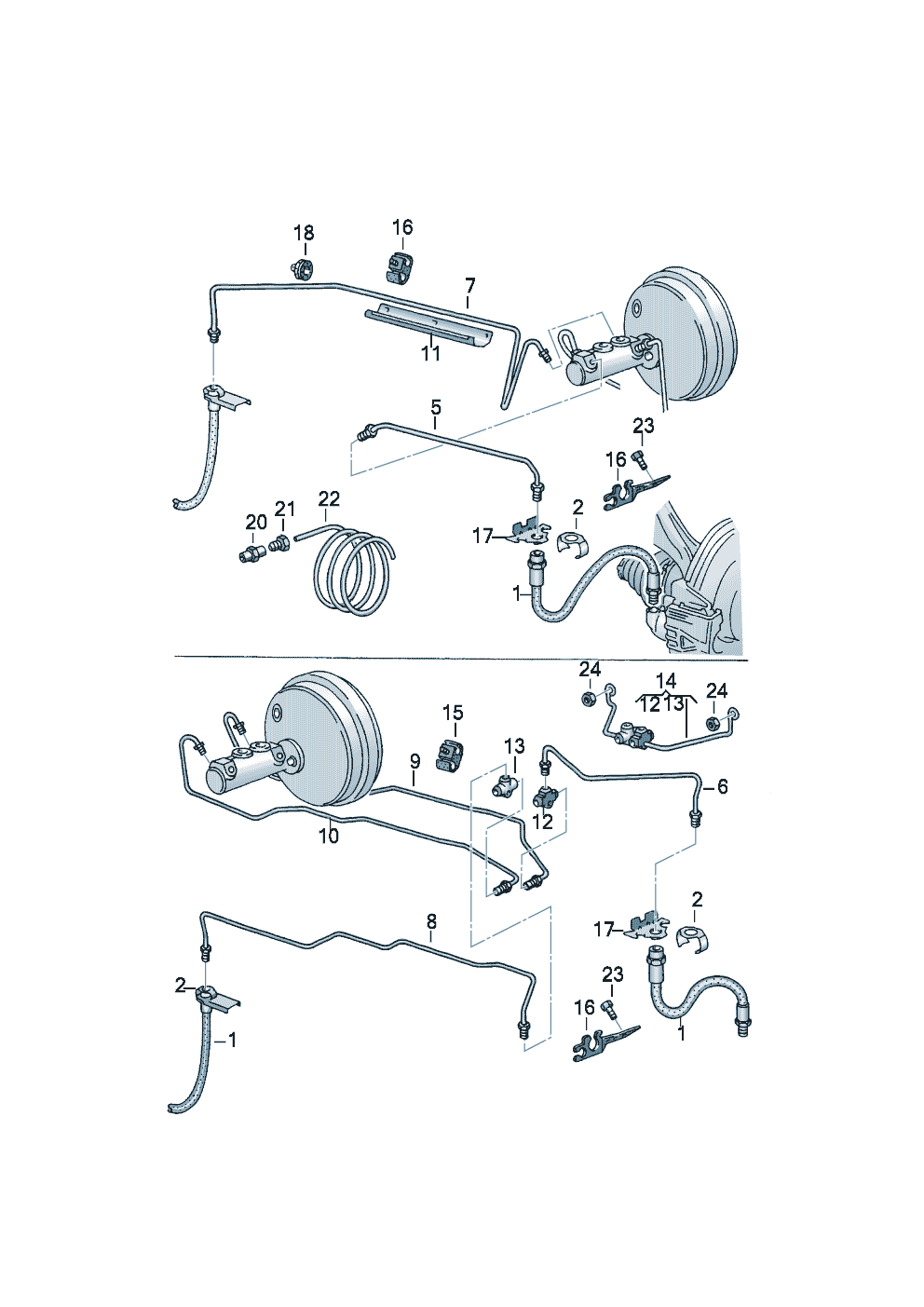

Factory title: Volkswagen Golf (1997 - 1998) - Reservoir. Brake master cylinder. For vehicles without anti- lock braking system
Brake pipe brake hose brake pipe vehicles without anti lock for the Volkswagen Golf Mk3 (1997): factory exploded diagram 611020 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 25 OEM part numbers across 31 catalogued positions including N 903 350 04, N 907 965 02 and 111 611 998. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 25 OEM part numbers across 31 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | Clamping washer 5 X 30 5 X 30 | N 903 350 04 |
| - | Clamping washer 5 X 30 5 X 30 | N 907 965 02 |
| - | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| (1) | Brake hose 465 MM PR:1 LN 465 MM | 1H0 611 701 B |
| (11) | Cover for brake pipes | 1H2 611 732 B |
| (15) | Retainer for brake pipe | 357 611 797 A |
| (16) | Retainer for brake hose | 1H0 611 800 |
| (21) | pipe union nut M 12 X 1/5 SW 11 M 12 X 1/5 SW 11 | 1H0 611 731 A |
| 1 | Brake hose M 10 X 1 X 435 MM M 10 X 1 X 435 MM | 1H0 611 701 |
| 10 | shorten to: 950 MM 950 MM | — |
| 11 | Cover for brake pipes | 1H1 611 732 |
| 12 | distributor for brake line | 1H2 611 755 |
| 13 | distributor for brake line | 803 611 755 |
| 14 | Bracketdistributor for brake line | 1H2 611 838 |
| 15 | Bracket | 811 611 797 |
| 16 | Retainer for brake hose | 1H0 611 799 |
| 17 | Retainer for brake hose | 1H0 611 845 |
| 18 | Grommet 22/3 22/3 | 803 611 751 |
| 2 | retaining spring | 1H0 611 715 |
| 20 | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 21 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 21 | pipe union nut M 10 X 1 M 10 X 1 | 113 611 731 |
| 22 | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| 23 | bolt, hex. hd. with shoulder,self-locking M 6 X 10 M 6 X 10 | N 014 340 1 |
| 24 | Hexagon collar nutself-locking M 8 M 8 | N 902 264 03 |
| 24 | hexagon nut, self-locking BM 8 BM 8 | N 902 891 01 |
| 5 | shorten to: 430 MM 430 MM | — |
| 6 | shorten to: 370 MM 370 MM | — |
| 7 | shorten to: 1345 MM 1345 MM | — |
| 8 | shorten to: 990 MM 990 MM | — |
| 9 | shorten to: 1020 MM 1020 MM | — |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 20 Brake
- Factory subgroup
- 611020
Related factory diagrams
Other published brake plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the brake pipe brake hose brake pipe vehicles without anti lock diagram for the Mk3 Golf?
- This diagram lists 25 OEM part numbers for the Mk3 Golf. The first three are N 903 350 04, N 907 965 02 and 111 611 998.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
