Brake pipe brake hose rear — Mk3 Golf Brake (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Reservoir. Brake master cylinder. For vehicles without anti- lock braking system

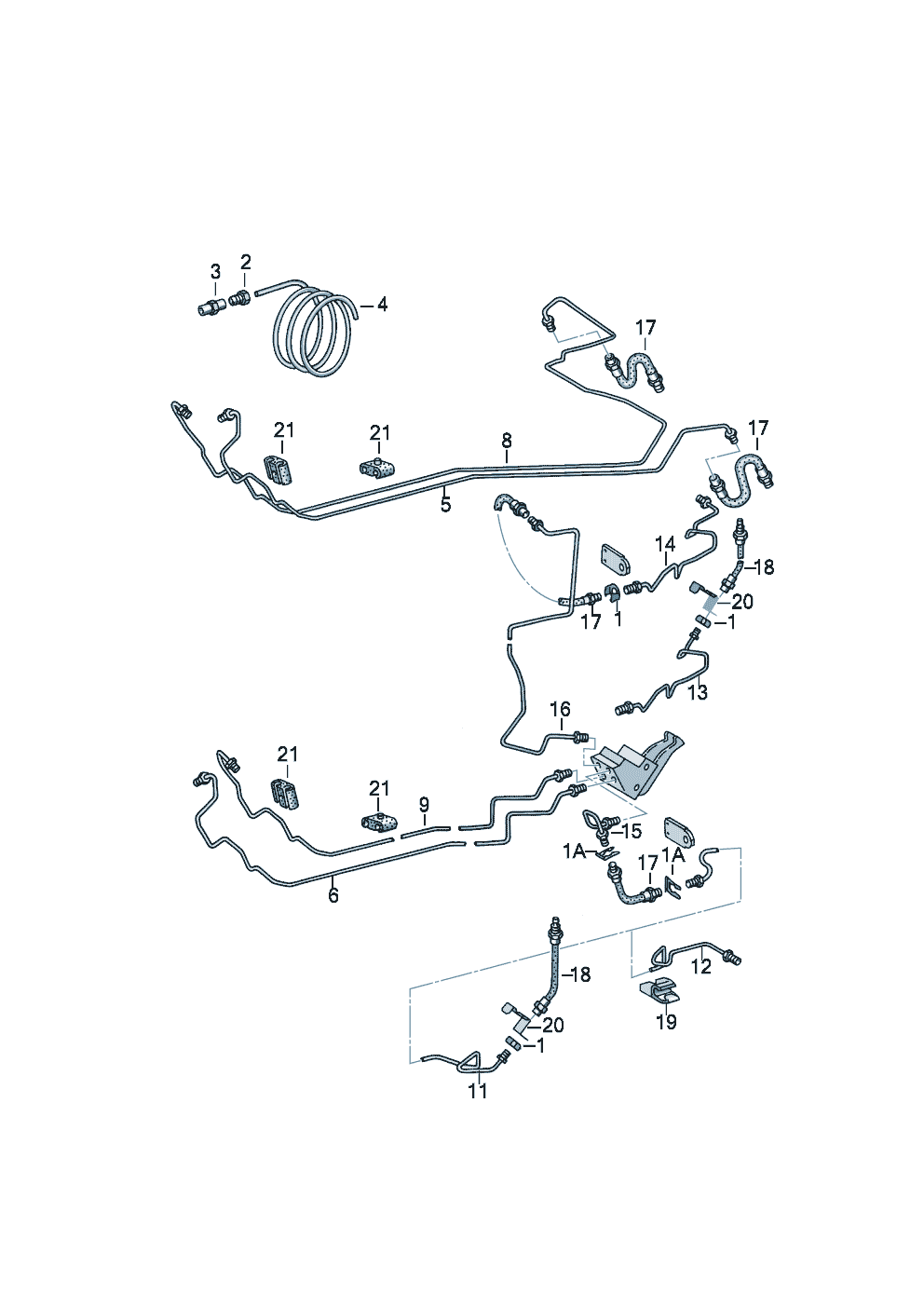

Brake pipe brake hose rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 611030 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 13 OEM part numbers across 27 catalogued positions including 1H0 611 797 C, 1H0 611 731 A and 893 611 797. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 13 OEM part numbers across 27 numbered positions.
| № | Description | Part number |
|---|---|---|
| (19) | Bracket | 1H0 611 797 C |
| (2) | pipe union nut M 12 X 1/5 SW 11 M 12 X 1/5 SW 11 | 1H0 611 731 A |
| (21) | Bracket | 893 611 797 |
| (5) | shorten to: 2550 MM 2550 MM | — |
| (6) | shorten to: 2540 MM 2540 MM | — |
| (8) | shorten to: 3580 MM 3580 MM | — |
| (9) | shorten to: 2510 MM 2510 MM | — |
| 1 | retaining spring | 1H0 611 715 |
| 11 | shorten to:for models with discbrakes 645 MM 645 MM | — |
| 12 | shorten to:for models with drumbrakes 760 MM 760 MM | — |
| 13 | shorten to:for models with discbrakes 770 MM 770 MM | — |
| 14 | shorten to:for models with drumbrakes 890 MM 890 MM | — |
| 15 | shorten to: 170 MM 170 MM | — |
| 16 | shorten to: 1700 MM 1700 MM | — |
| 17 | Brake hose M 10 X 1 X 155 M 10 X 1 X 155 | 1H0 611 775 |
| 18 | Brake hosefor models with discbrakes M 10 X 1 X 160 M 10 X 1 X 160 | 893 611 775 A |
| 1A | Hose bracket | 191 611 715 |
| 2 | pipe union nut M 10 X 1 M 10 X 1 | 113 611 731 |
| 2 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 20 | Retainer for brake hosefor models with discbrakes | 191 611 797 D |
| 21 | Bracket | 811 611 797 |
| 3 | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 4 | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| 5 | shorten to: 2640 MM 2640 MM | — |
| 6 | shorten to: 2650 MM 2650 MM | — |
| 8 | shorten to: 3780 MM 3780 MM | — |
| 9 | shorten to: 2730 MM 2730 MM | — |
