Brake pipe rhd — Mk3 Golf Brake (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Anti-locking brake syst. -abs

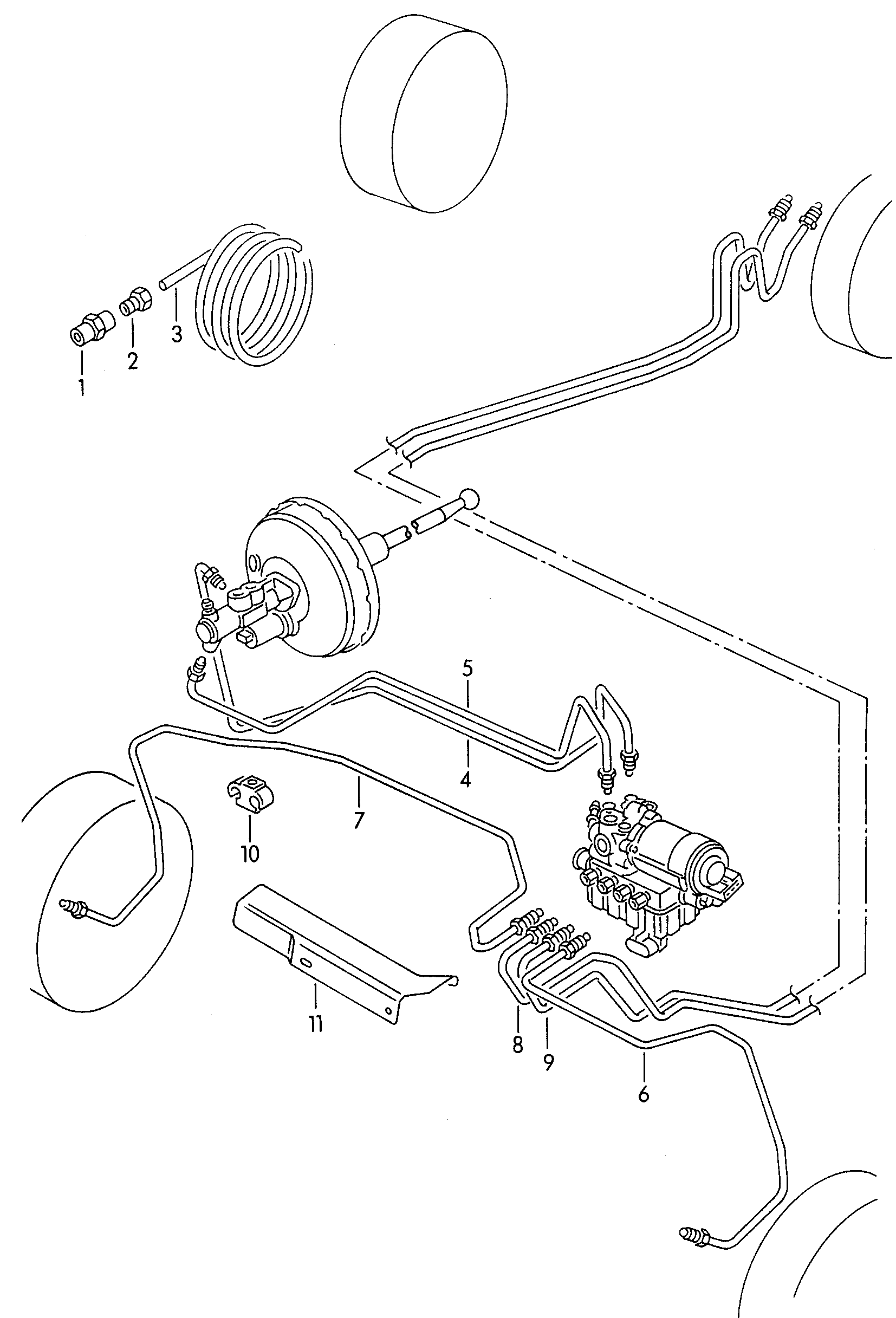

Brake pipe rhd for the Volkswagen Golf Mk3 (1997): factory exploded diagram 614045 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 10 OEM part numbers across 17 catalogued positions including N 903 350 04, N 907 965 02 and 1H2 611 732 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 10 OEM part numbers across 17 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | Clamping washer 5 X 30 5 X 30 | N 903 350 04 |
| - | Clamping washer 5 X 30 5 X 30 | N 907 965 02 |
| (11) | Cover for brake pipes also use: N 907 965 02 N 907 965 02 | 1H2 611 732 B |
| (11) | Cover for brake pipes also use: N 903 350 04 N 903 350 04 | 1H2 611 732 B |
| (2) | pipe union nut M 12 X 1/5 SW 11 M 12 X 1/5 SW 11 | 1H0 611 731 A |
| (7) | shorten to:for vehicles with electronicdifferential lock -edl- 1240 MM 10/10 1240 MM 10/10 | — |
| 1 | pipe union nut M 10 X 1 M 10 X 1 | 113 611 731 |
| 1 | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 10 | Bracket | 4D0 611 797 G |
| 2 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 3 | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| 4 | shorten to: 1120 MM 12/12 1120 MM 12/12 | — |
| 5 | shorten to: 1335 MM 12/12 1335 MM 12/12 | — |
| 6 | shorten to: 515 MM 10/12 515 MM 10/12 | — |
| 7 | shorten to: 1215 MM 10/10 1215 MM 10/10 | — |
| 8 | shorten to: 2515 MM 12/10 2515 MM 12/10 | — |
| 9 | shorten to: 3570 MM 10/10 3570 MM 10/10 | — |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 20 Brake
- Factory subgroup
- 614045
