Brake pipefor models anti lock brake system abs lhd — Mk3 Golf Brake (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Anti-locking brake syst. -abs

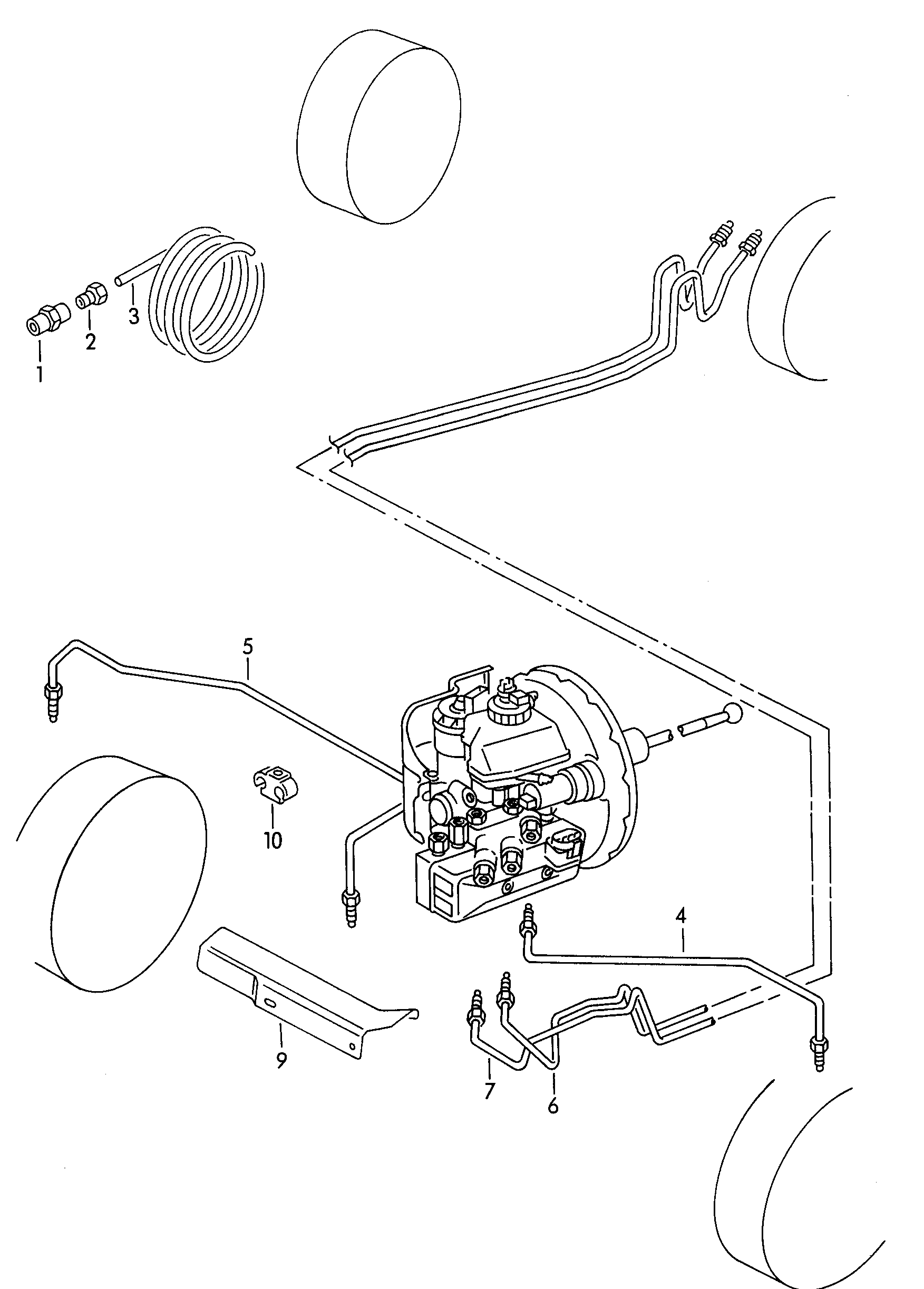

Brake pipefor models anti lock brake system abs lhd for the Volkswagen Golf Mk3 (1997): factory exploded diagram 614040 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 8 OEM part numbers across 12 catalogued positions including 6K0 611 797, 1H0 611 731 A and 411 611 789. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 8 OEM part numbers across 12 numbered positions.
| № | Description | Part number |
|---|---|---|
| (10) | Bracket | 6K0 611 797 |
| (2) | pipe union nut M 12 X 1/5 SW 11 M 12 X 1/5 SW 11 | 1H0 611 731 A |
| 1 | Connecting piece M 10 X 1 M 10 X 1 | 411 611 789 |
| 1 | pipe union nut M 10 X 1 M 10 X 1 | 113 611 731 |
| 10 | Bracket | 893 611 797 |
| 2 | pipe union nut M 10 X 1/5,3 SW 11 M 10 X 1/5,3 SW 11 | 1J0 611 731 |
| 3 | Brake pipe(Bulk stock) 4,75 X 0,7 4,75 X 0,7 | 111 611 998 |
| 4 | shorten to: 500 MM 500 MM | — |
| 5 | shorten to: 1260 MM 1260 MM | — |
| 6 | shorten to: 2680 MM 2680 MM | — |
| 7 | shorten to: 3800 MM 3800 MM | — |
| 9 | Cover for brake pipes | 1H1 611 732 |
