Disc brake front — Mk3 Golf Brake (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Disc brake

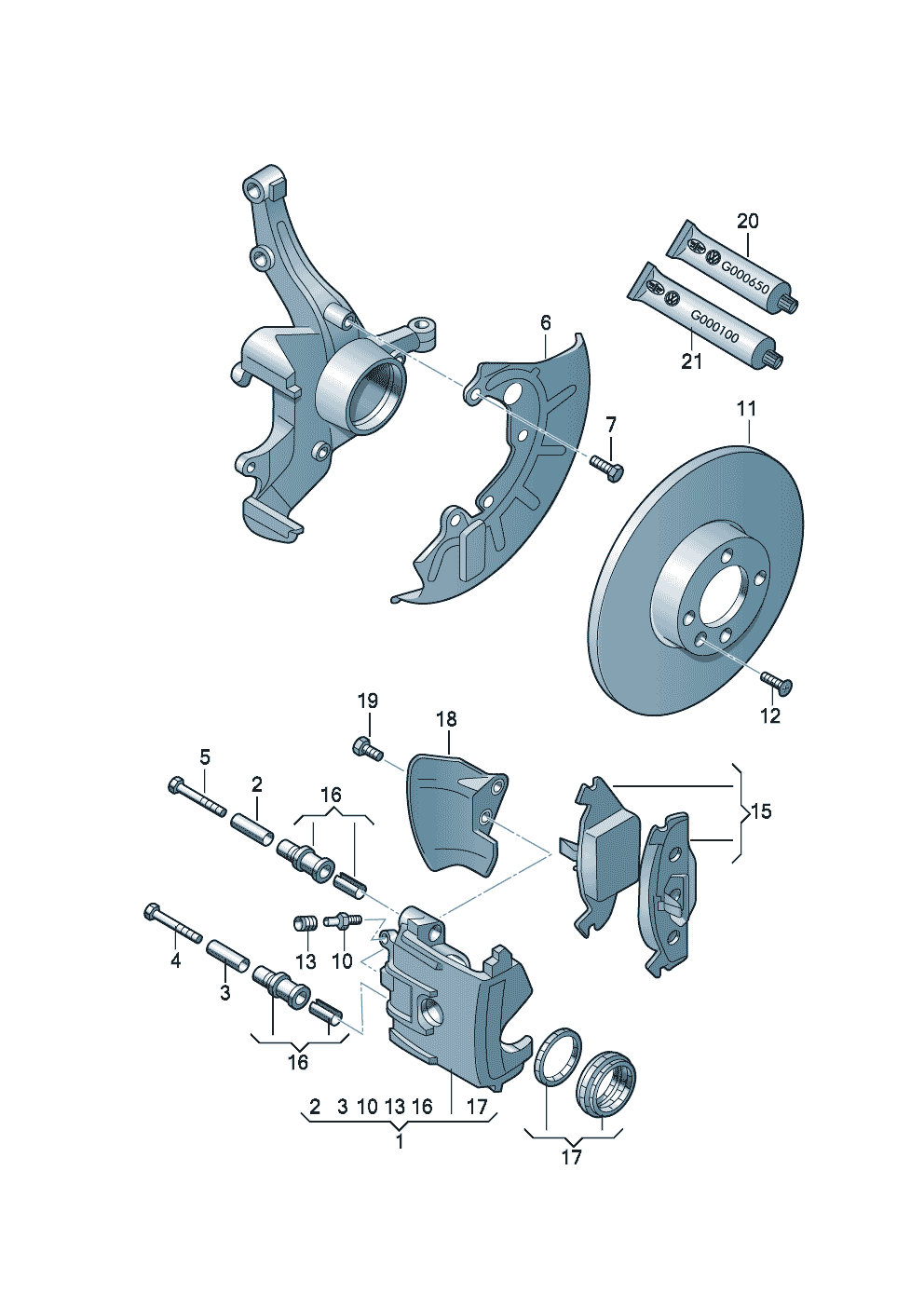

Disc brake front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 615015 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 26 OEM part numbers across 28 catalogued positions including 1H0 615 124 C, 6Q0 615 194 and 1H0 615 194 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 26 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| Floating caliper brake Brake caliper housing Brake disc For vehicles without anti-lock braking system front PR:1 LK,1 LM front | — | |
| Disc brake VW II 239 X 12 MM 13" PR:1 LK,1 LM VW II 239 X 12 MM 13" | — | |
| (1) | Brake caliper housing | 1H0 615 124 C |
| (18) | Air guide | 6Q0 615 194 |
| (18) | Air guide | 1H0 615 194 B |
| (6) | Cover plate for brake disc | 191 615 312 B |
| 1 | Brake caliper housing | 1H0 615 123 C |
| 10 | Breather valve M 10 X 1 M 10 X 1 | 357 615 273 |
| 11 | Brake disc 239 X 12 4/100 239 X 12 4/100 | 321 615 301 |
| 12 | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
| 12 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 03 |
| 13 | dust cap | 211 611 483 |
| 15 | 1 set of brake pads fordisk brake | 1H0 698 151 A |
| 16 | 1 set: guide bushes | 171 698 447 A |
| 17 | Set of gaskets for brakecaliper housing | 171 698 471 B |
| 18 | Air guide | 6Q0 615 193 |
| 18 | Air guide | 1H0 615 193 B |
| 18 | Air guide | 6E0 615 193 |
| 19 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| 2 | guide sleeve 45 MM 45 MM | 171 615 221 |
| 20 | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| 21 | Solid lubricant paste 100 G 100 G | G 000 650 |
| 3 | guide sleeve 35 MM 35 MM | 171 615 221 A |
| 4 | Socket head bolt withhexagon socket head M 8 X 49 M 8 X 49 | N 903 291 04 |
| 5 | Socket head bolt withhexagon socket head M 8 X 59 M 8 X 59 | N 903 292 05 |
| 6 | Cover plate for brake disc | 191 615 311 A |
| 7 | Hexagon bolt M 6 X 10 M 6 X 10 | N 905 293 01 |
| 7 | Hexagon bolt M 6 X 10 M 6 X 10 | N 010 210 7 |
