Disc brake front — Mk3 Golf Brake (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Disc brake

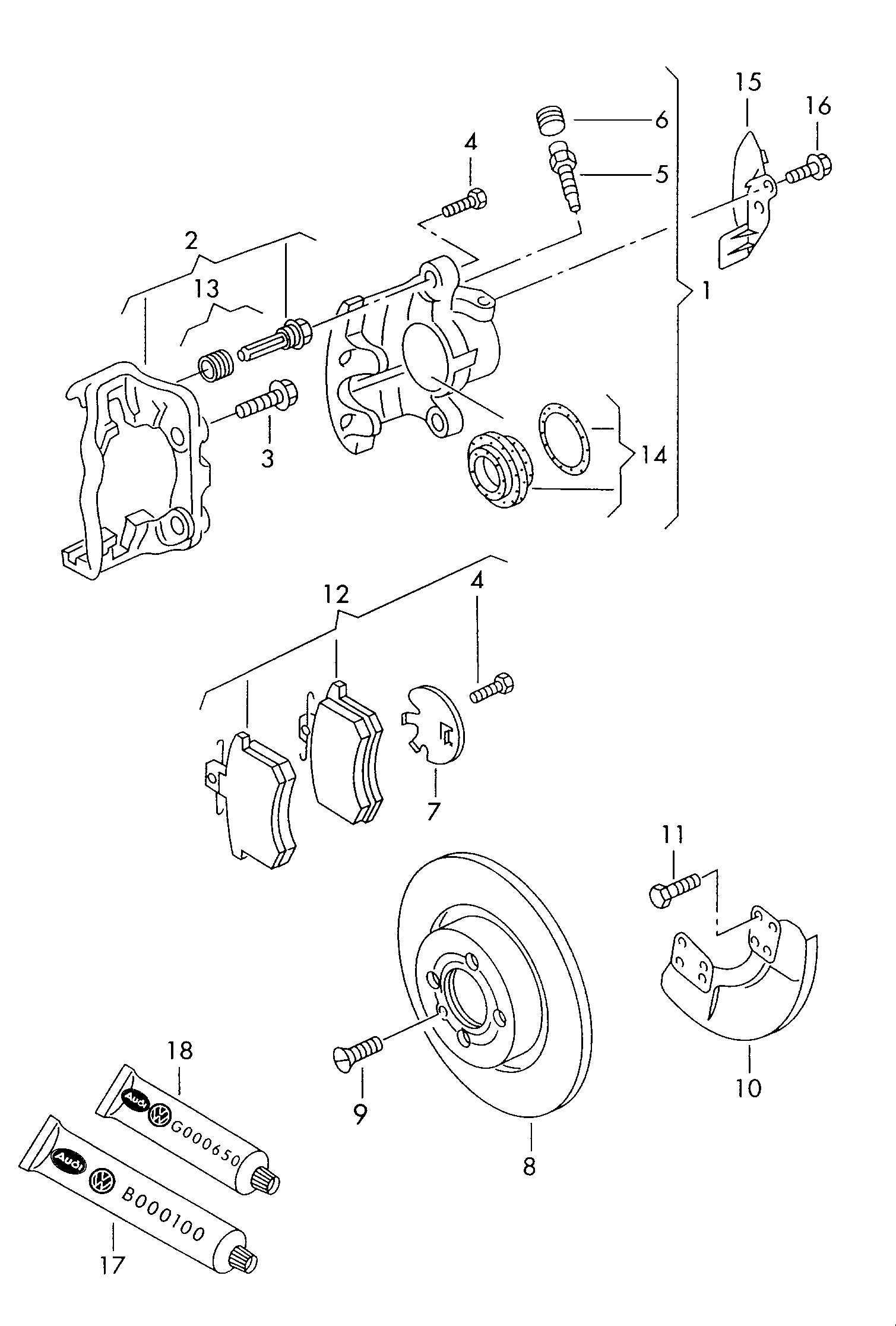

Disc brake front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 615020 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 30 OEM part numbers across 32 catalogued positions including 1H0 698 993, 1H0 698 480 X and 1H0 615 124 BX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 30 OEM part numbers across 32 numbered positions.
| № | Description | Part number |
|---|---|---|
| Disc brake LUCAS 256 X 13 MM 14" PR:1 LL,1 LV LUCAS 256 X 13 MM 14" | — | |
| Floating caliper brake Brake caliper housingbrake carrier withpad retaining pin Brake disc For vehicles without anti-lock braking system front PR:1 LL,1 LV front | — | |
| - | adhesive layer forbrake pad | 1H0 698 993 |
| - | 1 set: brake caliper housing | 1H0 698 480 X |
| (1) | Brake caliper housing | 1H0 615 124 BX |
| (1) | Brake caliper housing | 1H0 615 123 BX |
| (12) | 1 set of brake pads withwear display for discbrakes 'ECO'Economy | JZW 698 151 F |
| (15) | Air guide | 6Q0 615 194 |
| (15) | Air guide | 1H0 615 194 B |
| 1 | Brake caliper housing | 1H0 615 123 B |
| 10 | Cover plate for brake disc | 357 615 311 A |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 010 210 7 |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 905 293 01 |
| 12 | 1 set of brake pads fordisk brake | 357 698 151 B |
| 13 | 1 set protective sleevesfor guide pins | 443 698 470 |
| 14 | Set of gaskets for brakecaliper housing | 431 698 471 B |
| 15 | Air guide | 6Q0 615 193 |
| 15 | Air guide | 1H0 615 193 B |
| 15 | Air guide | 6E0 615 193 |
| 16 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| 17 | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| 18 | Solid lubricant paste 100 G 100 G | G 000 650 |
| 2 | brake carrier withpad retaining pin | 357 615 125 A |
| 3 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 907 085 02 |
| 3 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 901 740 01 |
| 4 | bolt, hexagon headself-locking M 8 X 21 M 8 X 21 | 321 615 141 |
| 5 | Breather valve M 10 X 1 M 10 X 1 | 357 615 273 |
| 6 | dust cap | 211 611 483 |
| 7 | Intermediate plate | 357 615 231 |
| 8 | Brake disc 256 X 13 4/100 256 X 13 4/100 | 357 615 301 |
| 9 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 03 |
| 9 | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
