Disc brake front — Mk3 Golf Brake (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Disc brake

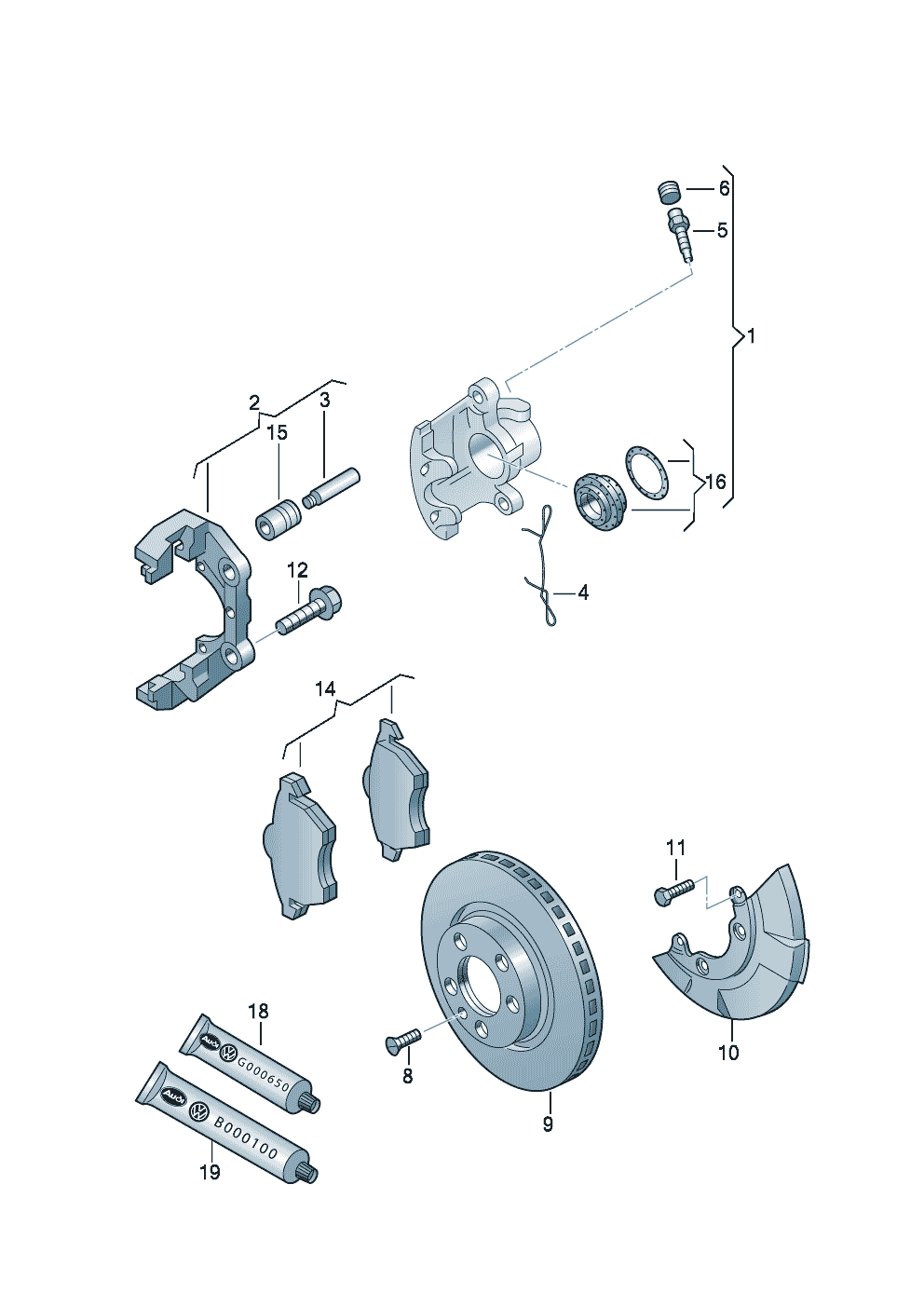

Disc brake front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 615040 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 28 OEM part numbers across 30 catalogued positions including 3A0 615 123 A, 3A0 615 124 and 3A0 615 124 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 28 OEM part numbers across 30 numbered positions.
| № | Description | Part number |
|---|---|---|
| Disc brake ATE 288 X 25 MM 15" PR:1 LN ATE 288 X 25 MM 15" | — | |
| Floating caliper brake Brake caliper housingbrake carrier withpad retaining pin Brake disc (vented) front PR:1 LN front | — | |
| (1) | Brake caliper housing PR:E 2 U,E 4 T | 3A0 615 123 A |
| (1) | Brake caliper housing | 3A0 615 124 |
| (1) | Brake caliper housing PR:E 2 U,E 4 T | 3A0 615 124 A |
| (10) | Cover plate for brake disc | 3A0 615 312 |
| (14) | 1 set of brake pads withwear display for discbrakes 'ECO'Economy | JZW 698 151 C |
| (2) | brake carrier withpad retaining pin PR:E 2 U,E 4 T | 3A0 615 125 A |
| 1 | Brake caliper housing | 3A0 615 123 |
| 10 | Cover plate for brake disc | 3A0 615 311 |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 905 293 01 |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 010 210 7 |
| 12 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 907 085 02 |
| 12 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 901 740 01 |
| 14 | 1 set of brake pads fordisk brake | 3A0 698 151 A |
| 14 | 1 set of brake pads fordisk brake | 1J0 698 151 L |
| 15 | 1 set: guide bushes | 4D0 698 647 |
| 16 | Set of gaskets for brakecaliper housing | 3A0 698 471 |
| 18 | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| 19 | Solid lubricant paste 100 G 100 G | G 000 650 |
| 2 | brake carrier withpad retaining pin ATE ATE | 3B0 615 125 |
| 2 | brake carrier withpad retaining pin | 4A0 615 125 A |
| 3 | guide pin | 251 615 219 |
| 4 | retaining spring | 4A0 615 269 |
| 5 | Breather valve M 10 X 1 X 29 M 10 X 1 X 29 | 1K0 615 273 A |
| 5 | Breather valve | 447 615 273 |
| 6 | dust cap | 211 611 483 |
| 8 | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
| 8 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 03 |
| 9 | Brake disc (vented) 288 X 25 5/100 288 X 25 5/100 | 3A0 615 301 A |
