Disc brake rear — Mk3 Golf Brake (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Disc brake

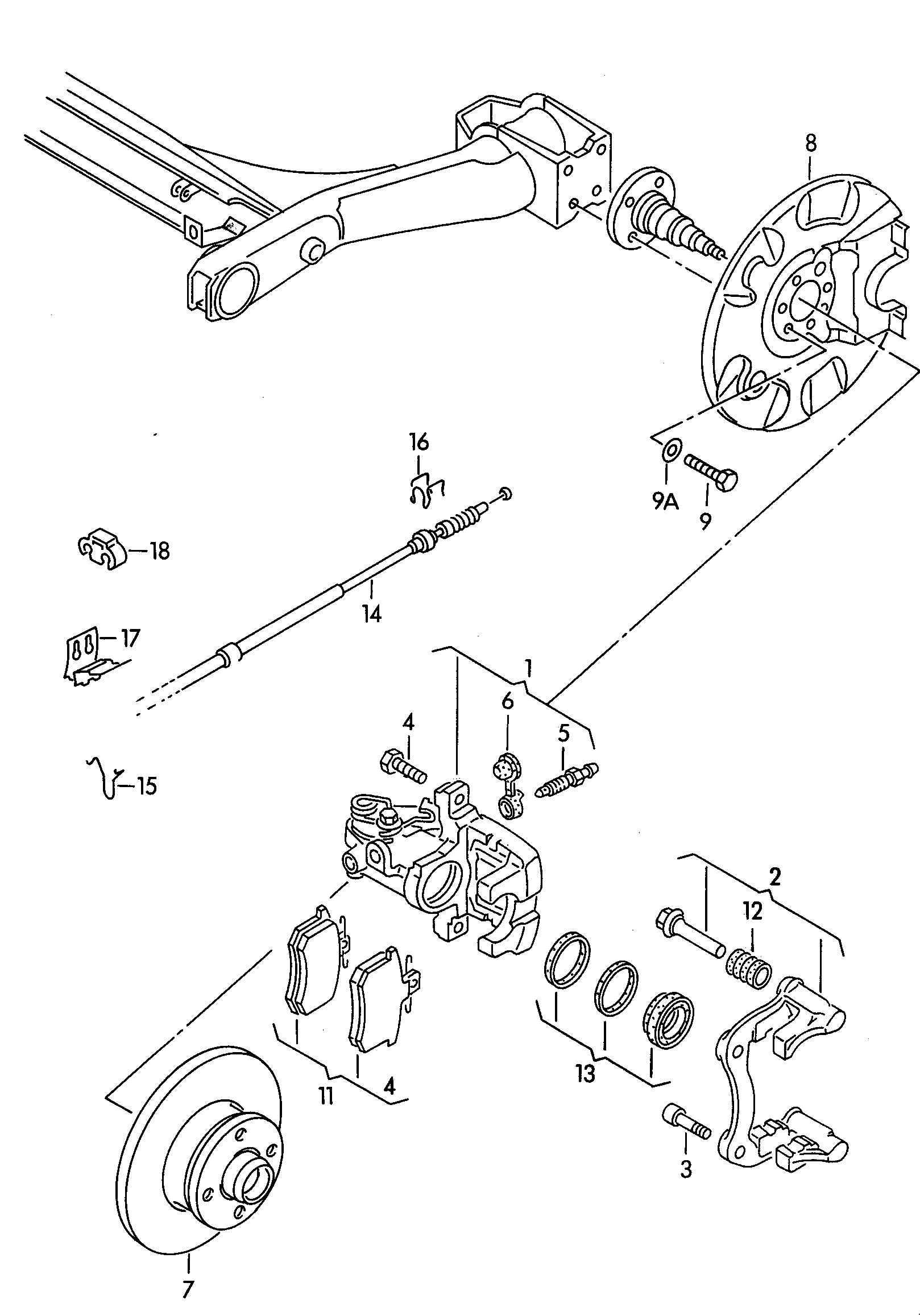

Disc brake rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 615060 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 49 OEM part numbers across 51 catalogued positions including 191 614 149 E OT, G 052 150 A2 and 1H0 698 680 X. Parts on this plate carry the engine codes AAA, ADZ, AEK, AFN and AGG. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 49 OEM part numbers across 51 numbered positions.
| № | Description | Part number |
|---|---|---|
| Disc brake LUCAS PR:1 KD,1 KK LUCAS | — | |
| Floating caliper brake Brake caliper housingbrake carrier withpad retaining pin Brake discbrake cable rear PR:1 KD,1 KK rear | — | |
| impulse rotor | 191 614 149 E OT | |
| - | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| - | 1 set: brake caliper housing PR:1 KD,1 KK | 1H0 698 680 X |
| - | Retrofit kit Balance weight | 1H0 698 998 D |
| - | rotor for speed sensor | 1J0 614 149 |
| - | Intermediate plate | 1H0 615 231 |
| - | rotor for speed sensor | 191 614 149 |
| - | Solid lubricant paste 100 G 100 G | G 000 650 |
| (1) | Brake caliper housing FUER TILGERGEWICHT AFN,AGG,AEPGT:ADZ,AEK,AFT"J..":ADZ ADZAEKAFNAGG | 1H0 615 424 D |
| (1) | Brake caliper housing F >> 1 H-VP 109 388 AFN,AGG,AEPGT:ADZ,AEK,AFT"J..":ADZ ADZAEKAFNAGG | 1H0 615 423 A |
| (1) | Brake caliper housing AFN,AGG,ABF:PR:E 2 U,E 4 T AFNAGG | 1H0 615 423 C |
| (1) | Brake caliper housing PR:1 KD,1 KK | 1H0 615 423 DX |
| (1) | Brake caliper housing AFN,AGG,ABF:PR:E 2 U,E 4 T AFNAGG | 1H0 615 424 C |
| (1) | Brake caliper housing PR:1 KD,1 KK | 1H0 615 424 DX |
| (1) | Brake caliper housing GTI:AGGABF,AAA AAA | 1H0 615 424 B |
| (1) | Brake caliper housing FUER TILGERGEWICHT AFN,AGG,AEPGT:ADZ,AEK,AFT"J..":ADZ ADZAEKAFNAGG | 1H0 615 423 D |
| (1) | Brake caliper housing F >> 1 H-VP 109 388 AFN,AGG,AEPGT:ADZ,AEK,AFT"J..":ADZ ADZAEKAFNAGG | 1H0 615 424 A |
| (11) | 1 set of brake pads fordisk brakefor models with anti-lockbrake system -abs- PR:1 KK | 1H0 698 451 G |
| (11) | 1 set of brake pads fordisk brake 'ECO'for models with anti-lockbrake system -abs-Economy PR:1 KK | JZW 698 451 B |
| (15) | Bracket | 1E0 609 745 |
| (15) | Bracket | 1E0 609 746 |
| (15) | Bracket | 1H0 609 745 A |
| (15) | Bracket | 1H0 609 746 |
| (17) | Clip | 1H0 609 734 C |
| (18) | Distance piece | 1H0 609 657 |
| (2) | brake carrier withpad retaining pin | 1H0 615 426 |
| (2) | brake carrier withpad retaining pin AFN,AGG,ABF:PR:E 2 U,E 4 T AFNAGG | 1H0 615 426 A |
| (2) | brake carrier withpad retaining pin AFN,AGG,ABF:PR:E 2 U,E 4 T AFNAGG | 1H0 615 425 A |
| (7) | Brake disc 226 X 10 5/100 PR:1 KD,1 KK 226 X 10 5/100 | 357 615 601 B |
| (8) | Cover plate for brake disc | 191 615 612 B |
| 1 | Brake caliper housing GTI:AGGABF,AAA AAA | 1H0 615 423 B |
| 11 | 1 set of brake pads fordisk brake For vehicles without anti-lock braking system PR:1 KD | 1H0 698 451 F |
| 12 | 1 set protective sleevesfor guide pins | 443 698 470 |
| 13 | Set of gaskets for brakecaliper housing | 8D0 698 671 |
| 13 | Set of gaskets for brakecaliper housing | 535 698 671 |
| 14 | brake cable 1613 MM 1613 MM | 1H0 609 721 E |
| 16 | Spring clip | 1H0 609 747 |
| 18 | Bracket | 811 611 797 |
| 2 | brake carrier withpad retaining pin | 1H0 615 425 |
| 3 | Socket head bolt withhexagon socket head M 10 X 1,25 X 21 M 10 X 1,25 X 21 | N 907 294 01 |
| 4 | bolt, hexagon headself-locking M 8 X 21 M 8 X 21 | 321 615 141 |
| 5 | Breather valve M 10 X 1 M 10 X 1 | 357 615 273 |
| 6 | dust cap | 211 611 483 |
| 7 | Brake disc 226 X 10 4/100 PR:1 KD,1 KK 226 X 10 4/100 | 357 615 601 |
| 8 | Cover plate for brake disc | 191 615 611 D |
| 9 | Hexagon bolt M 10 X 32 M 10 X 32 | N 905 068 01 |
| 9 | hexagon head bolt (combi) M 10 X 32 M 10 X 32 | N 905 248 01 |
| 9 | hexagon head bolt (combi) M 10 X 32 M 10 X 32 | N 907 589 01 |
| 9A | Belleville spring B 10 B 10 | 321 501 119 A |
