Floating caliper brake brake caliper housingbrake carrier — Mk3 Golf Brake (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Disc brake

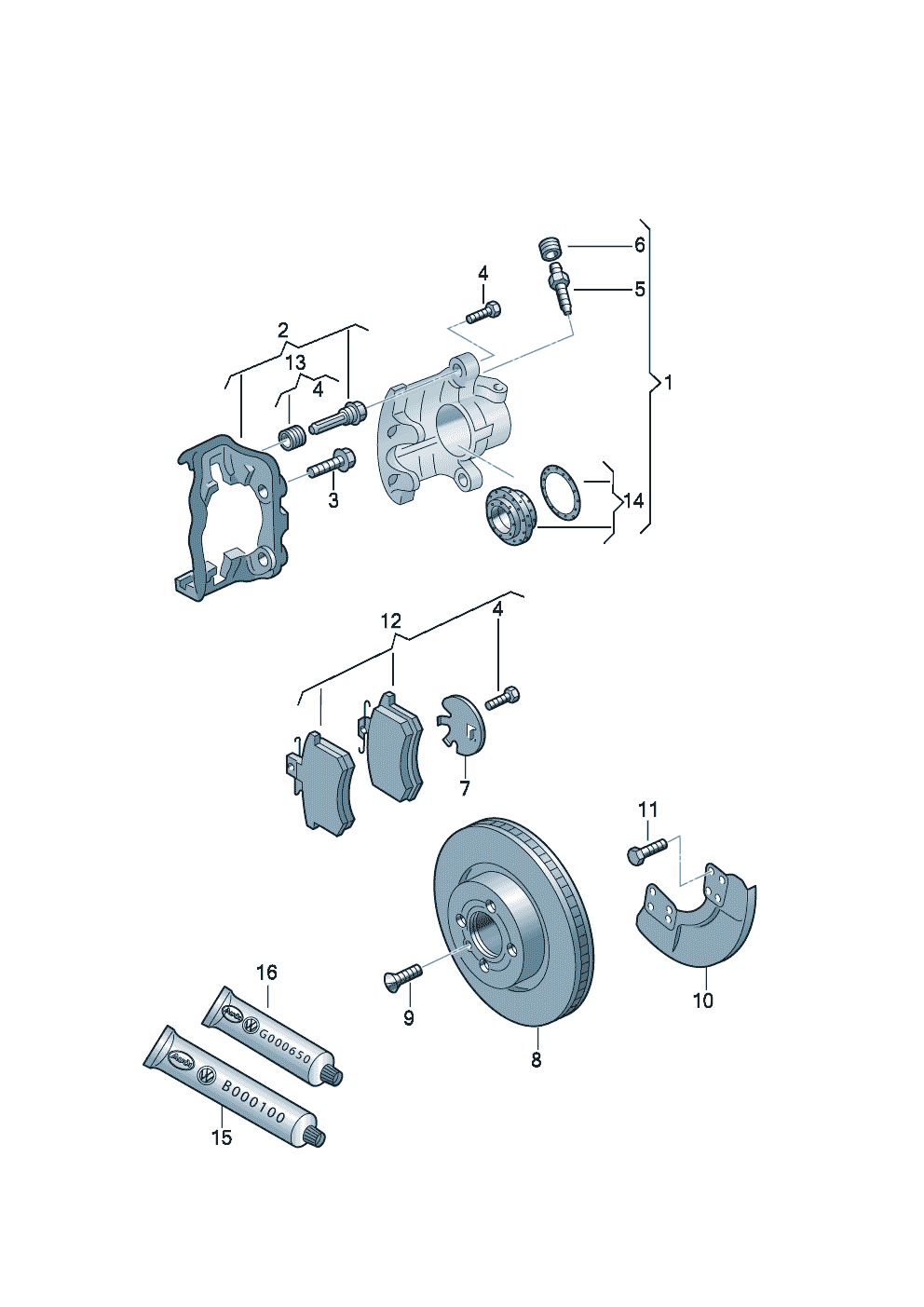

Floating caliper brake brake caliper housingbrake carrier for the Volkswagen Golf Mk3 (1997): factory exploded diagram 615025 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 28 OEM part numbers across 29 catalogued positions including 1H0 698 993, 357 698 480 X and 357 615 124 AX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 28 OEM part numbers across 29 numbered positions.
| № | Description | Part number |
|---|---|---|
| Floating caliper brake Brake caliper housingbrake carrier withpad retaining pin Brake disc (vented) front PR:1 ZK,1 LY front | — | |
| - | adhesive layer forbrake pad | 1H0 698 993 |
| - | 1 set: brake caliper housing | 357 698 480 X |
| (1) | Brake caliper housing | 357 615 124 AX |
| (1) | Brake caliper housing | 357 615 123 AX |
| (1) | Brake caliper housing | 357 615 124 A |
| (10) | Cover plate for brake disc | 357 615 311 A |
| (12) | 1 set of brake pads withwear display for discbrakes 'ECO'Economy 256 X 20 MM 256 X 20 MM | JZW 698 151 F |
| (12) | 1 set of brake pads fordisk brake | 1HM 698 151 |
| 1 | Brake caliper housing | 357 615 123 A |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 905 293 01 |
| 11 | Hexagon bolt M 6 X 10 M 6 X 10 | N 010 210 7 |
| 12 | 1 set of brake pads fordisk brake 256 X 20 MM 256 X 20 MM | 1HM 698 151 A |
| 12 | 1 set of brake pads fordisk brake | 357 698 151 E |
| 13 | 1 set protective sleevesfor guide pins | 443 698 470 |
| 14 | Set of gaskets for brakecaliper housing | 431 698 471 B |
| 15 | Lithium lubricating grease 180 G 180 G | G 052 150 A2 |
| 16 | Solid lubricant paste 100 G 100 G | G 000 650 |
| 2 | brake carrier withpad retaining pin | 357 615 125 B |
| 3 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 907 085 02 |
| 3 | ribbed bolt M 12 X 1,5 X 35 M 12 X 1,5 X 35 | N 901 740 01 |
| 4 | bolt, hexagon headself-locking M 8 X 21 M 8 X 21 | 321 615 141 |
| 5 | Breather valve M 10 X 1 M 10 X 1 | 357 615 273 |
| 6 | dust cap | 211 611 483 |
| 7 | Intermediate plate | 357 615 231 |
| 8 | Brake disc (vented) 256 X 20 4/100 256 X 20 4/100 | 6N0 615 301 D |
| 8 | Brake disc (vented) 256 X 20 4/100 256 X 20 4/100 | 321 615 301 D |
| 9 | countersunk bolt M 6 X 15 M 6 X 15 | N 101 126 03 |
| 9 | Hex socket countersunk bolt M 6 X 16 M 6 X 16 | N 106 483 01 |
