Vacuum hoses brake servo lhd — Mk3 Golf Brake (1997)

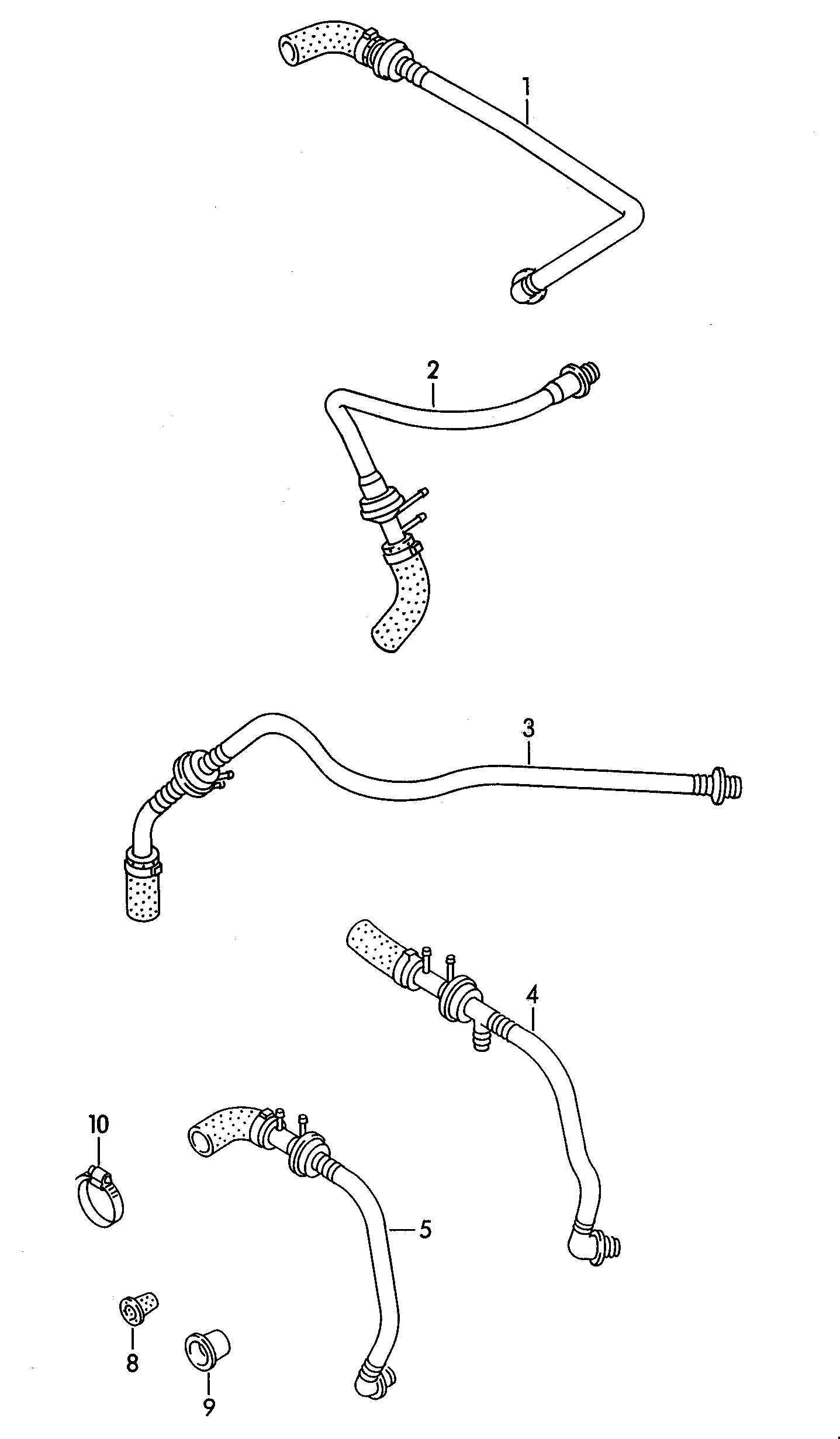

Factory title: Volkswagen Golf (1997 - 1998) - Reservoir. Brake master cylinder. For vehicles without anti- lock braking system
Vacuum hoses brake servo lhd for the Volkswagen Golf Mk3 (1997): factory exploded diagram 611070 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 14 OEM part numbers including 191 611 939 A, 321 611 939 E and 1H1 612 041 N. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ABF, ADY, ADZ and AEE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 14 OEM part numbers across 14 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | Vacuum hose shorten to: 142/50 MM 40 X 40 MM ABF 142/50 MM 40 X 40 MM ABF | 191 611 939 A |
| - | Vacuum hose 22 X 22 MM AEX,ADZ 22 X 22 MM ADZAEX | 321 611 939 E |
| (2) | Vacuum pipe withnon-return valve AFT,AKS AFTAKS | 1H1 612 041 N |
| (2) | Vacuum pipe withnon-return valve AEK AEK | 1H1 612 041 L |
| (3) | Vacuum pipe withnon-return valve 1 Z,AEY,AFN,AHU,ALE 1ZAEYAFNAHUALE | 1H1 612 041 J |
| (5) | Vacuum pipe withnon-return valve ABF ABF | 1H1 614 041 K |
| (9) | Cover cap 9 X 14 9 X 14 | 431 611 817 |
| 1 | Vacuum pipe withnon-return valve AEX,AEE AEEAEX | 1H1 612 041 M |
| 10 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 2 | Vacuum pipe withnon-return valve AAM,ADZ,ACCAAN AAMADZ | 1H1 614 041 B |
| 3 | Vacuum pipe withnon-return valve 1 Y,AAZ 1YAAZ | 1H1 614 041 A |
| 5 | Vacuum pipe withnon-return valve ADY,AGG,AEP ADYAEPAGG | 1H1 612 041 K |
| 8 | Cap closure 4 MM 4 MM | 056 129 777 |
| 9 | Cap closure 7,5 X 13 7,5 X 13 | 056 129 777 A |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Engine codes on this plate
- 1Y, 1Z, AAM, AAZ, ABF, ADY, ADZ, AEE
- Variant tags
- diesel
- Factory group
- 20 Brake
- Factory subgroup
- 611070
