Vacuum hoses brake servo rhd — Mk3 Golf Brake (1997)

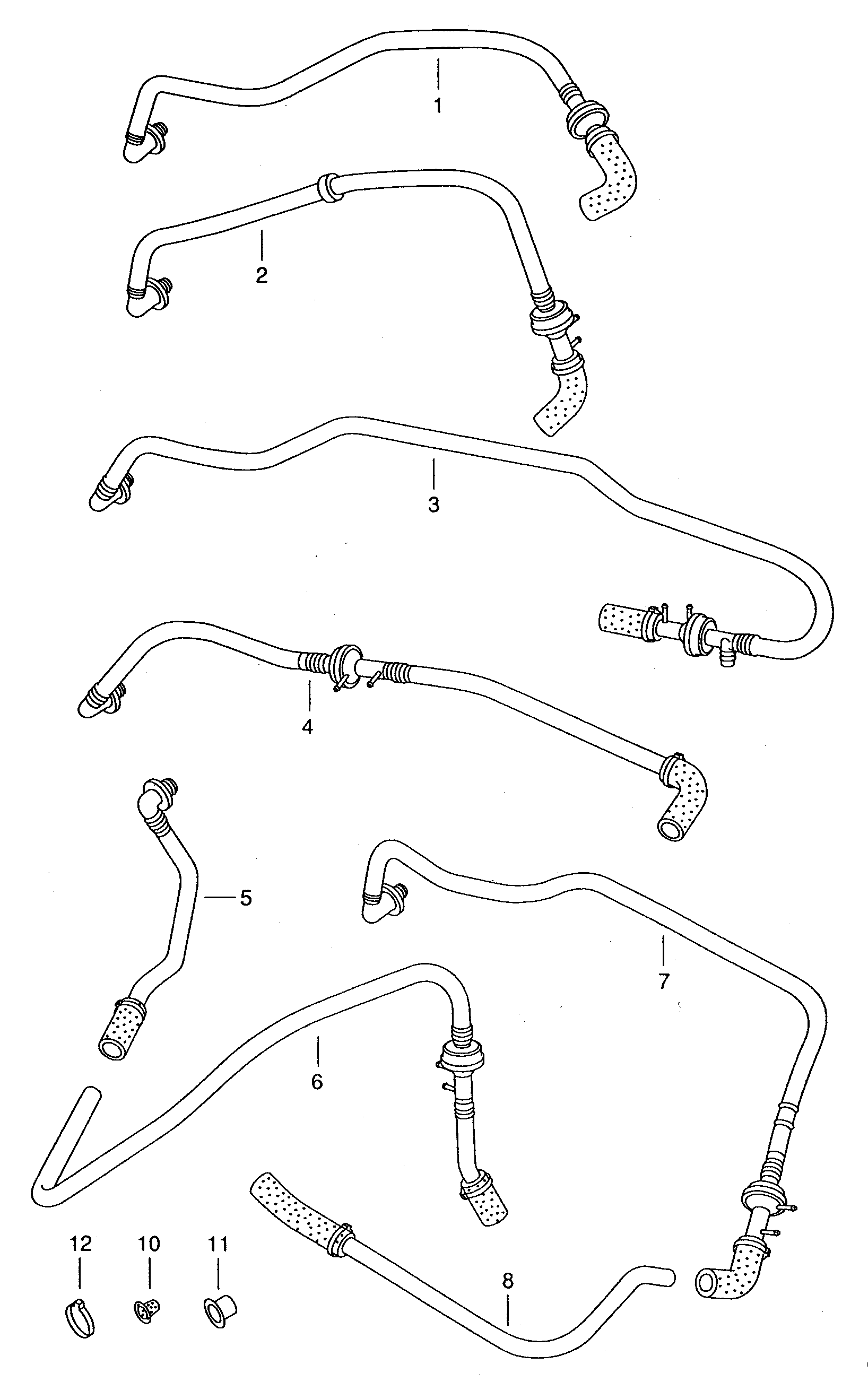

Factory title: Volkswagen Golf (1997 - 1998) - Reservoir. Brake master cylinder. For vehicles without anti- lock braking system
Vacuum hoses brake servo rhd for the Volkswagen Golf Mk3 (1997): factory exploded diagram 611075 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 17 OEM part numbers across 19 catalogued positions including N 020 290 3, 321 611 939 E and 191 611 939 A. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 17 OEM part numbers across 19 numbered positions.
| № | Description | Part number |
|---|---|---|
| hose in coils of 5 m'order unit 5' 12 X 3,5 12 X 3,5 | N 020 290 3 | |
| - | shorten to: 50 MM AEX,ADY,AGG 50 MM ADYAEXAGG | — |
| - | shorten to: 75 MM AAZ,1 Y 75 MM 1YAAZ | — |
| - | Vacuum hose 22 X 22 MM AEX,ADZ,ACC 22 X 22 MM ACCADZAEX | 321 611 939 E |
| - | Vacuum hose 142/50 MM 40 X 40 MM ABF,AAA 142/50 MM 40 X 40 MM AAAABF | 191 611 939 A |
| (1) | Vacuum pipe withnon-return valve AFT,AKS AFTAKS | 1H2 612 041 AJ |
| (11) | Cover cap 9 X 14 9 X 14 | 431 611 817 |
| (6) | Vacuum pipe withnon-return valve 1 Z,AFN 1ZAFN | 1H2 612 041 T |
| 1 | Vacuum pipe withnon-return valve AEX,AEE AEEAEX | 1H2 612 041 AH |
| 10 | Cap closure 4 MM 4 MM | 056 129 777 |
| 11 | Cap closure 7,5 X 13 7,5 X 13 | 056 129 777 A |
| 12 | Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5 | N 905 618 01 |
| 2 | Vacuum pipe withnon-return valve AAM,ADZ,ACC AAMACCADZ | 1H2 612 041 J |
| 3 | Vacuum pipe withnon-return valve ADY,AGG,AEP ADYAEPAGG | 1H2 612 041 AF |
| 4 | Vacuum pipe withnon-return valve ABF ABF | 1H2 612 041 H |
| 5 | Vacuum pipe 1 Z,1 Y,AAZ,AEY,AFN 1Y1ZAAZAEYAFN | 1H2 612 041 S |
| 6 | Vacuum pipe withnon-return valve 1 Y,AAZ,AEY 1YAAZAEY | 1H2 612 041 AB |
| 7 | Vacuum pipe withnon-return valve AAA AAA | 1H2 612 041 N |
| 8 | Vacuum pipe AAA AAA | 1H2 612 041 R |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Engine codes on this plate
- 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC, ADY
- Variant tags
- diesel
- Factory group
- 20 Brake
- Factory subgroup
- 611075
