Which VW part numbers are on the vacuum hosesfor models anti lock brake system abs lhd diagram for the Mk3 Golf?

This diagram lists 13 OEM part numbers for the Mk3 Golf. The first three are N 020 290 3, 321 611 939 E and 1H1 612 041 M.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADY.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Vacuum hosesfor models anti lock brake system abs lhd — Mk3 Golf Brake (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Anti-locking brake syst. -abs

Generation: Mk3 1997 (RDW) Group: Brake Rebuild step 10 Parts: 14 Primary OEM: N 020 290 3, 321 611 939 E, 1H1 612 041 M

Vacuum hosesfor models anti lock brake system abs lhd for the Volkswagen Golf Mk3 (1997): factory exploded diagram 614050 from the Volkswagen ETKA parts catalogue, group 20 Brake, listing 13 OEM part numbers across 14 catalogued positions including N 020 290 3, 321 611 939 E and 1H1 612 041 M. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 13 OEM part numbers across 14 numbered positions.

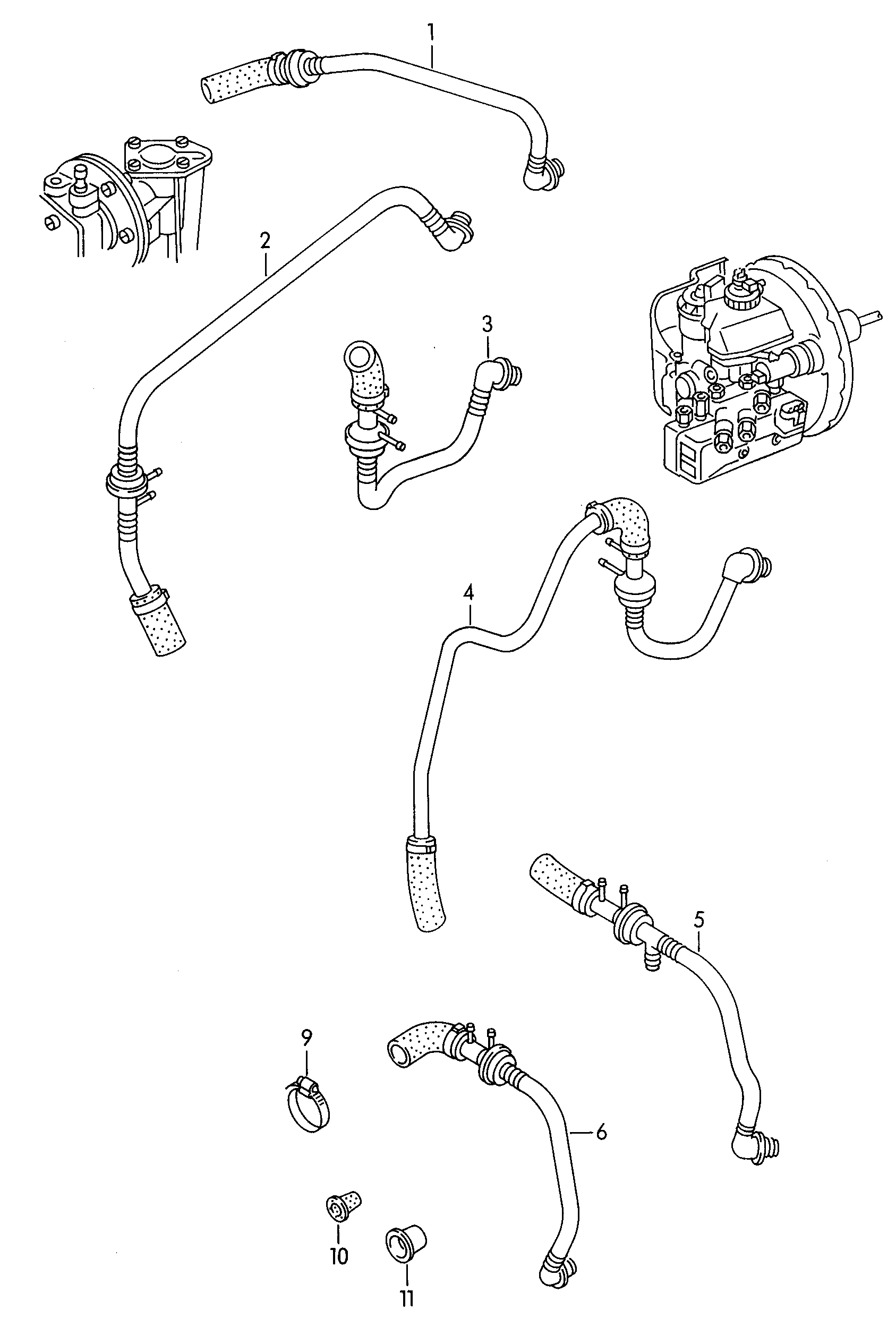

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	hose in coils of 5 m'order unit 5' 12 X 3,5 12 X 3,5	N 020 290 3
-	shorten to: 85 MM ADY,AGG,AAZ,1 Y,AEK,AEP,1 Z,AEY,AFT,AFN 85 MM 1Y1ZAAZADYAEKAEPAEYAFNAFTAGG	—
-	Vacuum hose 22 X 22 MM AEX,AAM,ADZ,AAA,AEE,ADZ,ACC 22 X 22 MM AAAAAMACCADZAEEAEX	321 611 939 E
(1)	Vacuum pipe withnon-return valve AEX,AEE,APQ AEEAEXAPQ	1H1 612 041 M
(2)	Vacuum pipe withnon-return valve AFT,AKS AFTAKS	1H1 612 041 N
(2)	Vacuum pipe withnon-return valve 1 Z,AFN 1ZAFN	1H1 612 041 J
(4)	Vacuum pipe withnon-return valve AAA AAA	1H1 614 041 J
(5)	Vacuum pipe withnon-return valve ADY,AEP,AGG ADYAEPAGG	1H1 612 041 K
10	Cap closure 4 MM 4 MM	056 129 777
11	Cap closure 7,5 X 13 7,5 X 13	056 129 777 A
2	Vacuum pipe withnon-return valve 1 Y,AAZ 1YAAZ	1H1 614 041 A
3	Vacuum pipe withnon-return valve AAM,ADZ,ACC AAMACCADZ	1H1 614 041 B
6	Vacuum pipe withnon-return valve ABF ABF	1H1 614 041 K
9	Clamp 16-28 X 9 X 0,5 16-28 X 9 X 0,5	N 905 618 01

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these brake diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC, ADY
Variant tags: diesel
Factory group: 20 Brake
Factory subgroup: 614050
