Which VW part numbers are on the air guide aaa aam aba acc adc add azz diagram for the Mk3 Golf?

This diagram lists 44 OEM part numbers for the Mk3 Golf. The first three are 1H0 121 290, 321 820 061 D and 1H0 119 113 C.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine codes AAA, AAM, AAZ, ABA, ACC, ADC, ADD and AZZ.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Air guide aaa aam aba acc adc add azz — Mk3 Golf Cooling (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Coolant pump

Generation: Mk3 1993 - 1996 (MEX) Group: Drive cooling Rebuild step 8 Parts: 46 Primary OEM: 1H0 121 290, 321 820 061 D, 1H0 119 113 C

Air guide aaa aam aba acc adc add azz for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 121080 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 44 OEM part numbers across 46 catalogued positions including 1H0 121 290, 321 820 061 D and 1H0 119 113 C. Parts on this plate carry the engine codes AAA, AAM, AAZ, ABA, ACC, ADC, ADD and AZZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 44 OEM part numbers across 46 numbered positions.

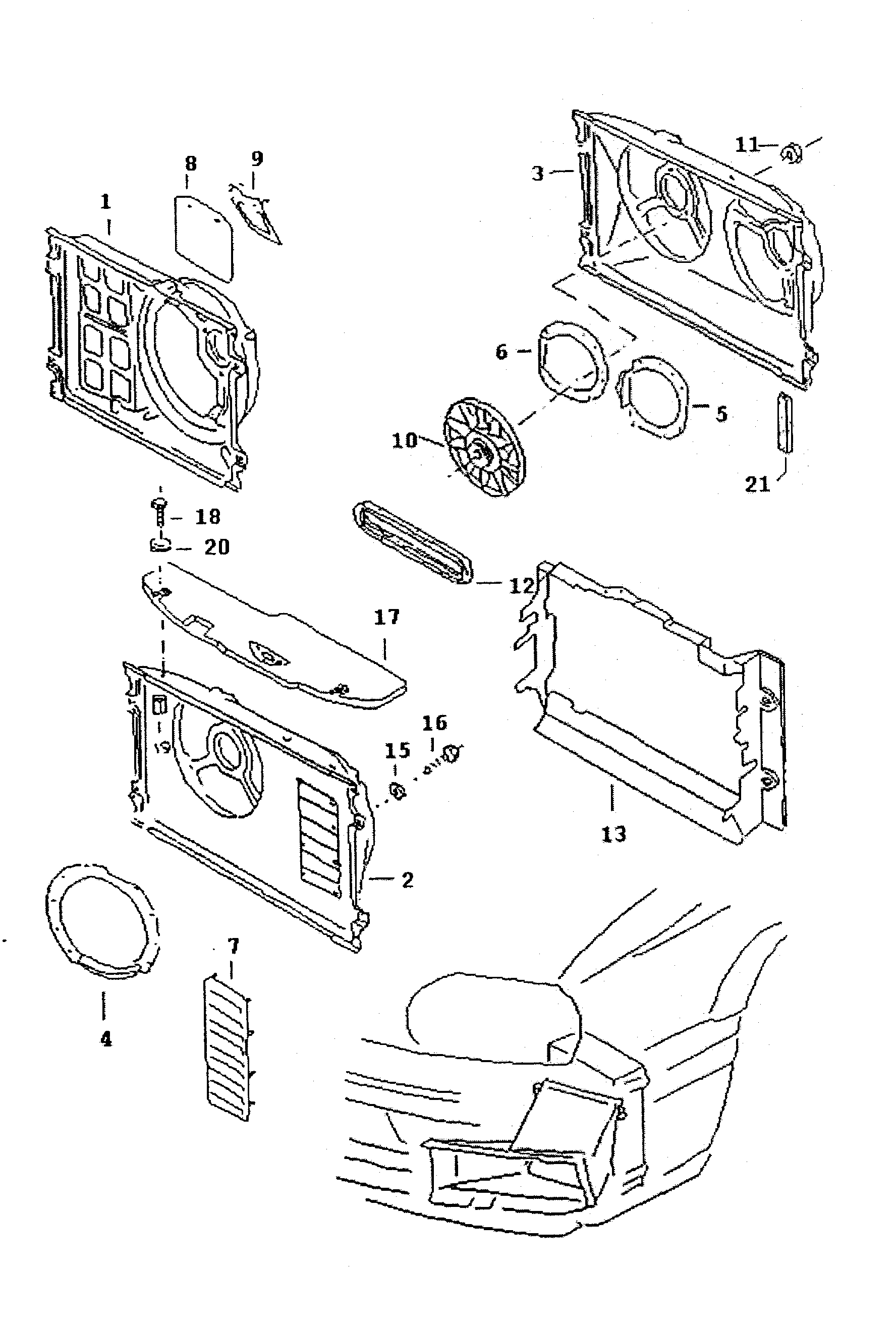

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Air guide AAA,AAM,ABA,ACC,ADC,ADD,AZZ AAAAAMABAACCADCADDAZZ	—
-	Hose bracket Air cond.+AAZ	1H0 121 290
-	Seal 1220 X 12 X 10 1220 X 12 X 10	321 820 061 D
(10)	fan wheel with bearing For vehicles with twinfan F 1 H-P-000 301>>* AAA AAA	1H0 119 113 C
(10)	fan wheel with bearing For vehicles with twinfan F >> 1 H-P-000 300* AAA AAA	1H0 119 113 D
(10)	fan wheel with bearing For vehicles with twinfanfor vehicles with air condit.F >> 1 H-P-000 250* AAZ AAZ	1H0 119 113 D
(10)	fan wheel with bearing For vehicles with twinfanfor vehicles with air condit.F 1 H-P-000 251>>* AAZ AAZ	1H0 119 113 C
(10)	fan wheel with bearing For vehicles with twinfan AAZ AAZ	1H0 119 113
(12)	v-belt 4,68 X 860 MM AAA 4,68 X 860 MM AAA	1H0 119 137 A
(12)	v-belt For vehicles with twinfanfor vehicles with air condit. 4,68 X 800 MM AAM,ABA,ACC,ADC,ADD 4,68 X 800 MM AAMABAACCADCADD	1H0 119 137
(12)	v-belt 4,68 X 800 MM ABA,ACC 4,68 X 800 MM ABAACC	1H0 119 137
(13)	Air guide F 1 H-P-014 215>> AAA AAA	1HM 121 283 D
(13)	Air guide F >> 1 H-P-001 411 F >> 1 H-P-019 676 "MEX"+ABAAutomatic+ACC"USA"+"CDN"+ABAAutomatic+ACC	1HM 121 283 A
(13)	Air guide F 1 H-P-014 215>> Air cond.+AAZ	1HM 121 283 D
(17)	Coverfor coolant regulator AAA AAA	1HM 121 343 A
(18)	oval head panel screw 4,8 X 16 4,8 X 16	N 013 969 21
(2)	Fan ring Automatic+ACC,ADD ADD	1HM 121 207
(2)	Fan ring "BR."+ ADD	1HM 121 207
(3)	Twin fan ring Air cond.+AAM,ABA,ACC,ADC,ADD ABAACCADCADD	1HM 121 207 A
(3)	Twin fan ring AAA,AAZ AAAAAZ	1HM 121 207 A
(4)	guide ring "BR."+ ADD	1HM 121 210
(4)	guide ring Automatic+AAM,ACC,ADD ACCADD	1HM 121 210
(5)	guide ring Air cond.+AAM,ABA,ACC,ADC,ADD ABAACCADCADD	1HM 121 210 B
(6)	guide ring Air cond.+AAM,ABA,ACC,ADC,ADD ABAACCADCADD	1HM 121 210 C
(7)	Radiator louvre Automatic+ACC,ADD ADD	1HM 121 223
(7)	Radiator louvre "BR."+ ADD	1HM 121 223
1	Fan ring AAM,ACC,ADD AAMACCADD	191 121 207 A
10	fan wheel with bearing For vehicles with twinfanfor vehicles with air condit. AAM,ABA,ACC,ADC,ADD AAMABAACCADCADD	1H0 119 113
11	Hexagon collar nut For vehicles with twinfan M 6 M 6	N 901 752 05
11	Hexagon collar nut For vehicles with twinfan M 6 M 6	N 901 752 03
15	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
16	hexagon head panel screw 6,8 X 12,5 6,8 X 12,5	N 903 103 01
17	Coverfor coolant regulator AAM,ABA,ACC,ADC,ADD AAMABAACCADCADD	1HM 121 343
18	oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0	N 013 969 4
18	Hexagon bolt M 5 X 12 M 5 X 12	N 102 021 04
18	hexagon head bolt (combi) M 5 X 12 M 5 X 12	N 102 869 01
19	insert nut	811 807 577 C
2	Fan ring ABA,ADC ABAADC	1HM 121 207
20	Spring washer 5 5	N 012 222 4
21	shorten to: 110 MM 110 MM	—
4	guide ring ABA,ADC ABAADC	1HM 121 210
5	guide ring AAA,AAZ AAAAAZ	1HM 121 210 B
6	guide ring AAA,AAZ AAAAAZ	1HM 121 210 C
7	Radiator louvre ABA,ADC ABAADC	1HM 121 223
8	flap for fan housing AAM,ACC,ADD AAMACCADD	171 121 223
9	Bracket AAM,ACC,ADD AAMACCADD	171 121 227 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: AAA, AAM, AAZ, ABA, ACC, ADC, ADD, AZZ
Factory group: 11 Drive cooling
Factory subgroup: 121080
