Which VW part numbers are on the coolant cooling system diagram for the Mk3 Golf?

This diagram lists 32 OEM part numbers for the Mk3 Golf. The first three are 037 121 120 A, 1HM 121 093 and N 102 480 01.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The parts on it carry the engine codes ABA and ADC.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Coolant cooling system — Mk3 Golf Cooling (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Coolant pump

Generation: Mk3 1993 - 1996 (MEX) Group: Drive cooling Rebuild step 8 Parts: 36 Primary OEM: 037 121 120 A, 1HM 121 093, N 102 480 01

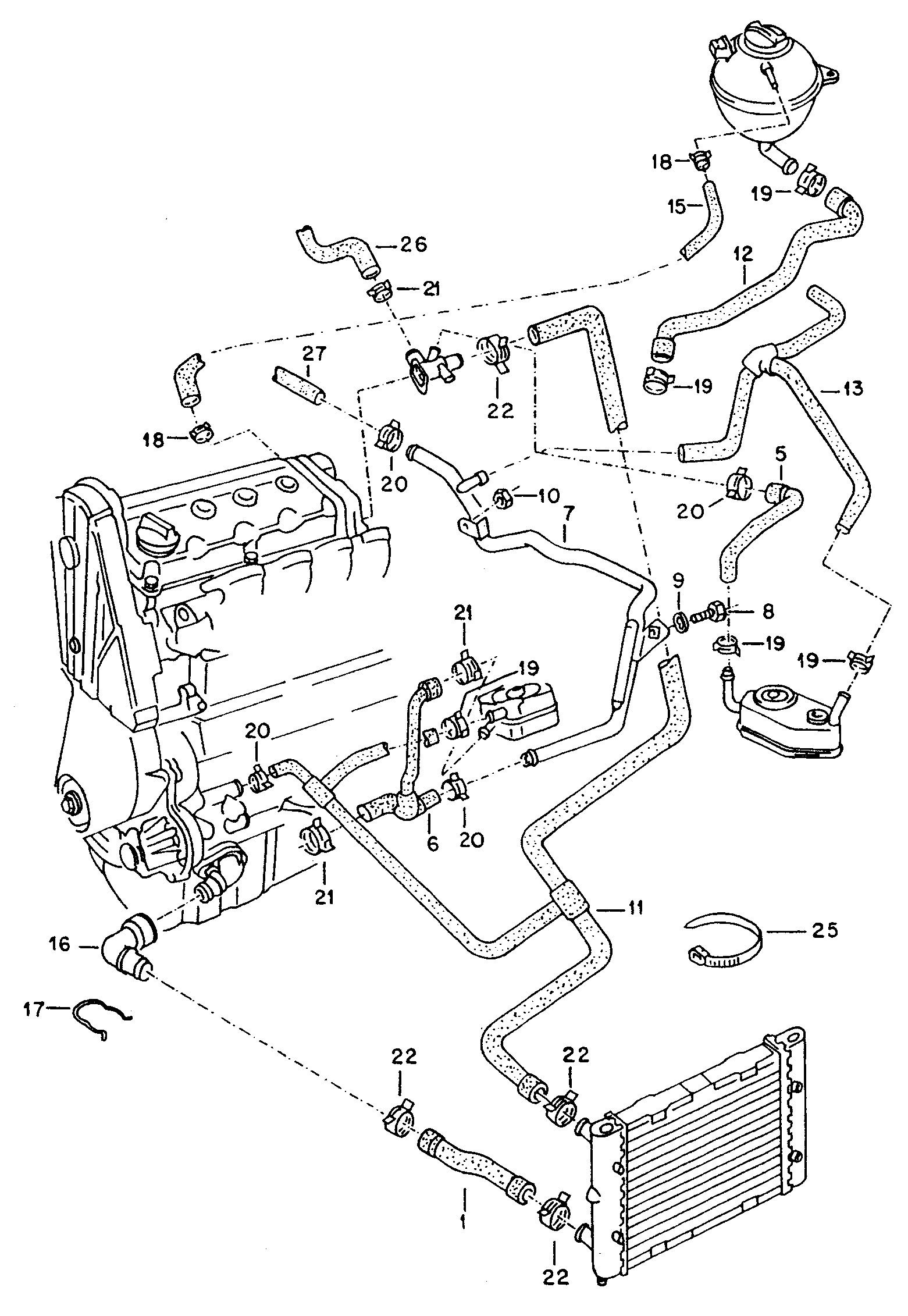

Coolant cooling system for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 121050 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 32 OEM part numbers across 36 catalogued positions including 037 121 120 A, 1HM 121 093 and N 102 480 01. Parts on this plate carry the engine codes ABA and ADC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 32 OEM part numbers across 36 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coolant cooling system 2.0 Ltr. ABA,ADC 2.0 Ltr. ABAADC	—
-	Hose bracket F 1 H-T-003 731>> ADC ADC	037 121 120 A
-	Bracket F 1 H-T-140 500>>* CALIFORNIA+ABA	1HM 121 093
-	Socket head bolt withinner multipoint head F 1 H-T-140 500>> M 6 X 14 CALIFORNIA+ABA M 6 X 14	N 102 480 01
-	Socket head bolt withhexagon socket head M 6 X 15 M 6 X 15	N 014 702 10
-	Socket head bolt withhexagon socket head M 6 X 15 M 6 X 15	N 014 702 13
-	hose in coils of 5 m'order unit 5' 8 X 2,5 8 X 2,5	N 904 855 01
-	Hose bracket F >> 1 H-T-003 730 ABA,ADC ABAADC	037 121 120
-	Hose bracket F >> 1 H-T-084 500 F >> 1 H-T-003 730 ABA,ADC ABAADC	037 121 120 A
(1)	Coolant hose(Coolant radiator/pump)for vehicles with air condit.	1H0 121 051 C
(11)	Coolant hose also use: N 906 867 01 CALIFORNIA+ABA N 906 867 01	1HM 122 101 B
(6)	Coolant hose	037 122 058
1	Coolant hose(Coolant radiator/pump)	1H0 121 051 B
10	Hexagon collar nut M 6 M 6	N 901 752 03
10	Hexagon collar nut M 6 M 6	N 901 752 05
11	Coolant hose use if required: >>1 H-P-006272037 121 144 H 037 121 144 J >>1 H-P-006272037 121 144 H 037 121 144 J	1HM 121 101
11	Coolant hose use if required: >>1 H-P-006272037 121 144 H 037 121 144 J ABAAutomatic+ABA >>1 H-P-006272037 121 144 H 037 121 144 J	1HM 121 101
12	Coolant hose(Expansion tank > coolant pipe)F >> 1 H-T-099 000F >> 1 H-T-004 999 "USA"+"CDN"+ABA"MEX"+ABA,ADC ADC	1H0 121 109 A
12	Coolant hose(Expansion tank > coolant pipe)F 1 H-T-099 001>>F 1 H-T-005 000>> "USA"+"CDN"+ABAADC	1H0 121 109 R
13	Coolant hose(Expansion tank>transmission oil cooler>coolant pipe) automatic	1H0 121 109 B
15	shorten to: 430 MM 430 MM	—
16	Adapter	037 121 619
17	retaining spring	037 121 142 A
18	Spring band clamp 13 X 15 13 X 15	N 100 987 01
19	Spring band clamp 23 X 15 23 X 15 Type 19 makes this →	N 016 402 1
20	Spring band clamp 27 X 15 27 X 15 Type 19 makes this →	N 016 403 1
21	Spring band clamp 32 X 15 32 X 15 Type 19 makes this →	N 016 404 1
22	Spring band clamp 40 X 15 40 X 15 Type 19 makes this →	N 016 410 1
25	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
26	see illustration: 819-050 819-050	—
27	see illustration: 819-050 819-050	—
5	Coolant hose automatic	1HM 121 058
7	Coolant pipe	037 121 065 L
8	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
9	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
9	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 20

Reproduction parts by Type 19 for this diagram

Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.

Mk2 Golf Engine Hose Clamps Factory numbers on this diagram: N 016 402 1, N 016 403 1, N 016 404 1, N 016 410 1

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Engine codes on this plate: ABA, ADC
Variant tags: petrol_8v_gti_or_gl
Factory group: 11 Drive cooling
Factory subgroup: 121050
