Coolant pump aaa — Mk3 Golf Cooling (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Coolant pump

Generation: Mk3 1993 - 1996 (MEX) Group: Drive cooling Rebuild step 8 Parts: 8 Primary OEM: 021 121 004 A, 021 121 004 X, N 904 363 01

Coolant pump aaa for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 121015 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 7 OEM part numbers across 8 catalogued positions including 021 121 004 A, 021 121 004 X and N 904 363 01. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 7 OEM part numbers across 8 numbered positions.

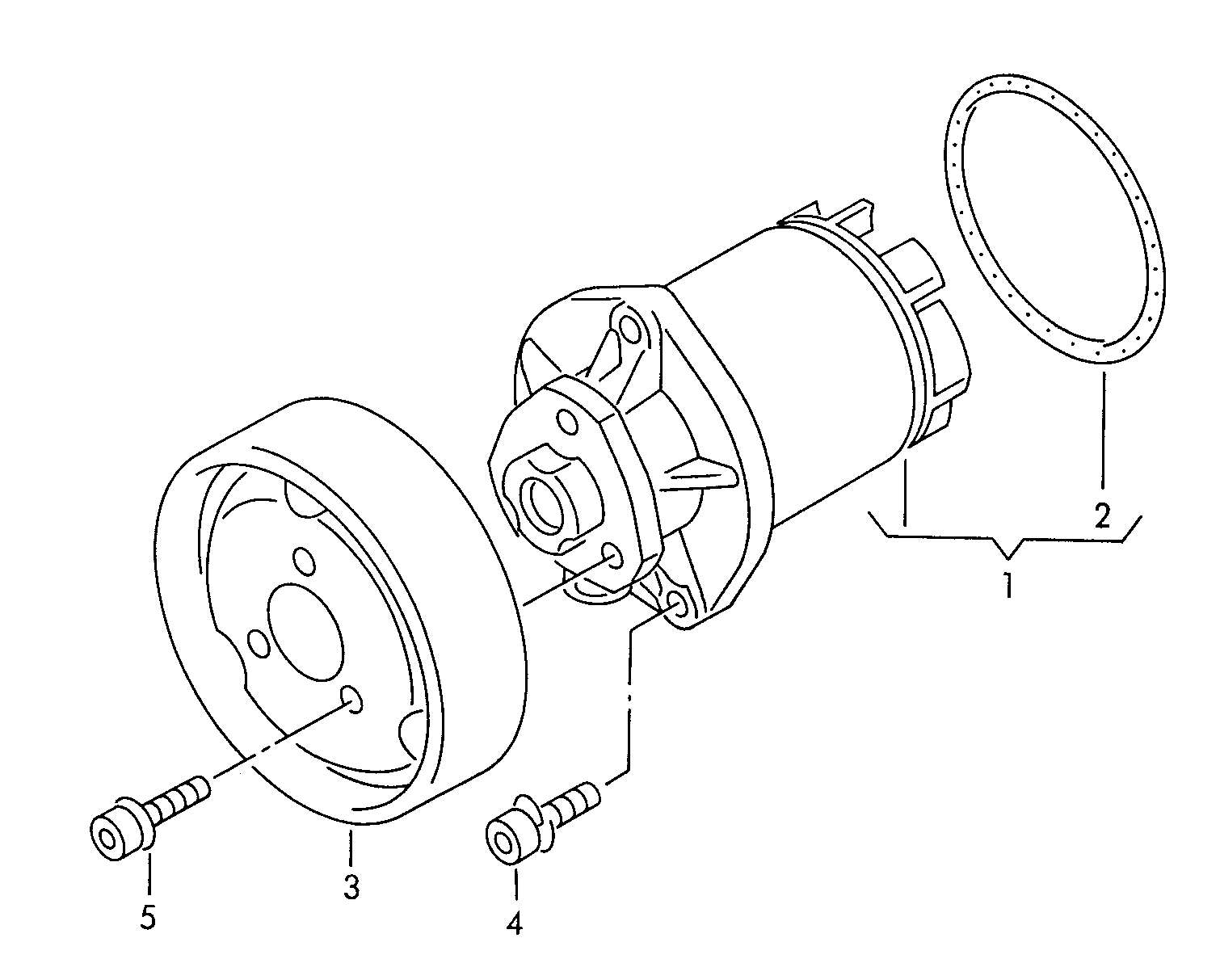

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coolant pump AAA AAA	—
1	Coolant pump with sealing ring	021 121 004 A
1	Coolant pump with sealing ring	021 121 004 X
2	seal ring 67,6 X 3,55 67,6 X 3,55	N 904 363 01
3	pulley	021 121 031 A
3	pulley	021 121 031 D
4	Socket head bolt with hexagonsocket head (combination) M 8 X 20 M 8 X 20	N 902 218 03
5	Socket head bolt withinner multipoint head M 8 X 11 M 8 X 11	N 905 442 03
