Coolant cooling system — Mk3 Golf Cooling (1995)

Factory title: Volkswagen Golf (1995) - Coolant pump

Generation: Mk3 1995 (RDW) Group: Drive cooling Rebuild step 8 Parts: 25 Primary OEM: N 016 404 1, N 016 401 1, N 904 855 01

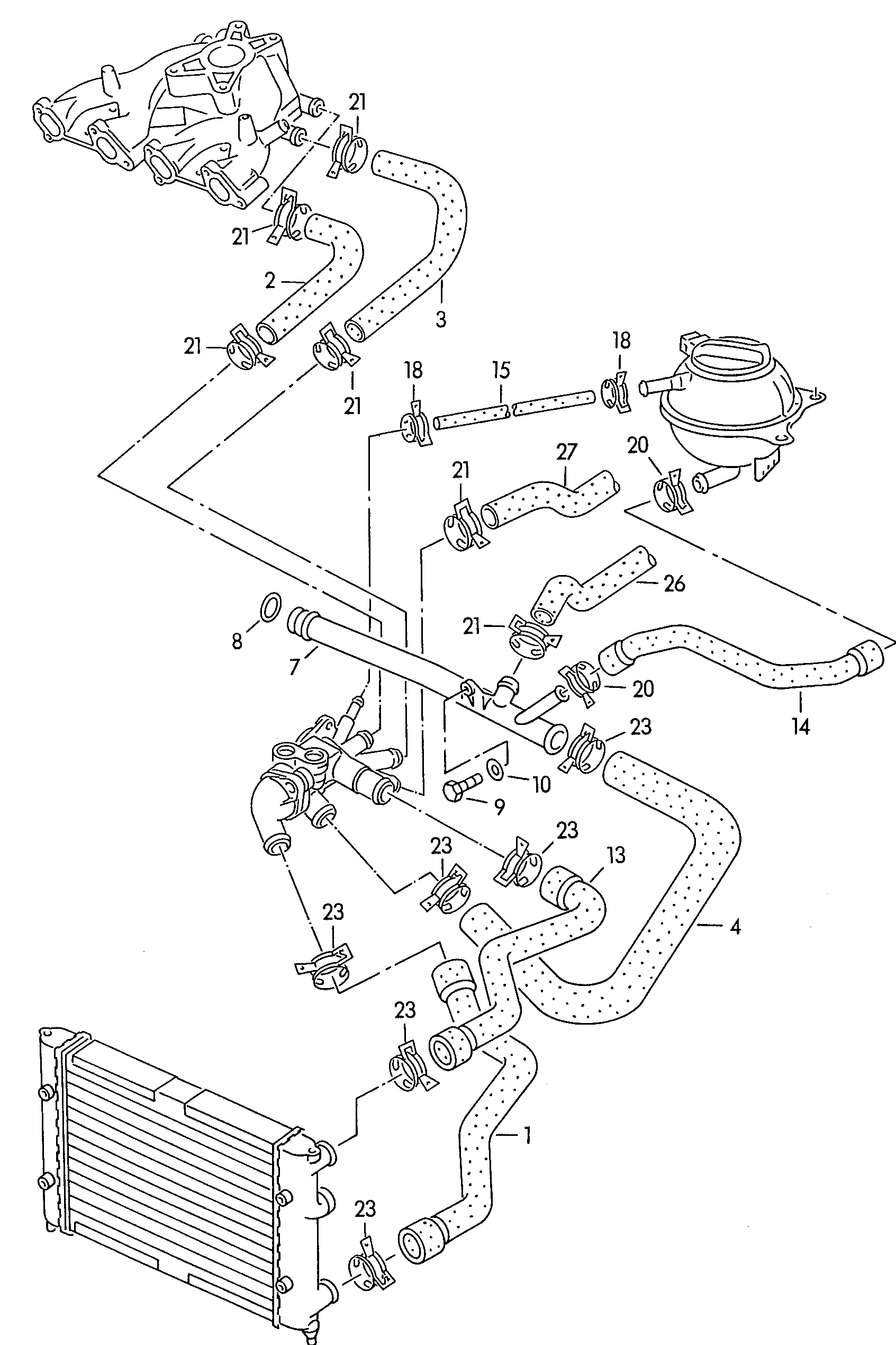

Coolant cooling system for the Volkswagen Golf Mk3 (1995): factory exploded diagram 121020 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 21 OEM part numbers across 25 catalogued positions including N 016 404 1, N 016 401 1 and N 904 855 01. Parts on this plate carry the engine codes ABD and ABU. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 21 OEM part numbers across 25 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Spring band clamp 32 X 15 32 X 15 Type 19 makes this →	N 016 404 1
	Coolant cooling system 1.4/1.6 ltr. 4-cylinder+ABD,ABU 1.4/1.6 ltr. ABU	—
	Spring band clamp 19 X 15 19 X 15	N 016 401 1
-	hose in coils of 5 m'order unit 5' 8 X 2,5 8 X 2,5	N 904 855 01
(14)	Coolant hose(Expansion tank > coolant pipe)F 1 H-SW 385 335>>F 1 H-SB 088 705>>F 1 H-SP 352 189>>	1H0 121 109 H
(2)	Coolant hose(Coolant regulator housing >intake connection) ABU ABU	032 121 054 A
(3)	Coolant hose(Coolant regulator housing >intake connection) ABU ABU	032 121 056 C
(4)	Coolant hose(Coolant regulator housing > coolant pipe) ABU ABU	032 121 063
1	Coolant hose(Coolant regulator housing > coolant radiator)	1H0 121 051 D
10	Washer 6,5 6,5	N 011 547 6
13	Coolant hose(Coolant regulator housing > coolant radiator)	1H0 121 101 P
14	Coolant hose(Expansion tank > coolant pipe)F >> 1 H-SW 385 334 F >> 1 H-SB 088 704 F >> 1 H-SP 352 188	1H0 121 109
15	shorten to: 430 MM 430 MM	—
18	Spring band clamp 13 X 15 13 X 15	N 100 987 01
2	Coolant hose(Coolant regulator housing >intake connection) ABD ABD	030 121 054 P
20	Spring band clamp 23 X 15 23 X 15 Type 19 makes this →	N 016 402 1
21	Spring band clamp 27 X 15 27 X 15 Type 19 makes this →	N 016 403 1
23	Spring band clamp 40 X 15 40 X 15 Type 19 makes this →	N 016 410 1
26	see illustration: 819-050 819-050	—
27	see illustration: 819-050 819-050	—
3	Coolant hose(Coolant regulator housing >intake connection) ABD ABD	030 121 056 G
4	Coolant hose(Coolant regulator housing > coolant pipe) ABD ABD	030 121 063 C
7	Coolant pipe	030 121 065 J
8	O-ring 32 X 3,55 32 X 3,55	N 905 197 01
9	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10

Reproduction parts by Type 19 for this diagram

Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.

Mk2 Golf Engine Hose Clamps Factory numbers on this diagram: N 016 404 1, N 016 402 1, N 016 403 1, N 016 410 1

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1995
Generation region: RDW
Generation code: 159
Engine codes on this plate: ABD, ABU
Variant tags: petrol_8v_base
Factory group: 11 Drive cooling
Factory subgroup: 121020
