Coolant pump 4 cylinder — Mk3 Golf Cooling (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Coolant pump

Generation: Mk3 1997 (RDW) Group: Drive cooling Rebuild step 8 Parts: 39 Primary OEM: N 012 241 11, N 012 241 10, 037 121 010 AX

Coolant pump 4 cylinder for the Volkswagen Golf Mk3 (1997): factory exploded diagram 121010 from the Volkswagen ETKA parts catalogue, group 11 Drive cooling, listing 36 OEM part numbers across 39 catalogued positions including N 012 241 11, N 012 241 10 and 037 121 010 AX. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ABF, ACC, ADZ and AEE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 36 OEM part numbers across 39 numbered positions.

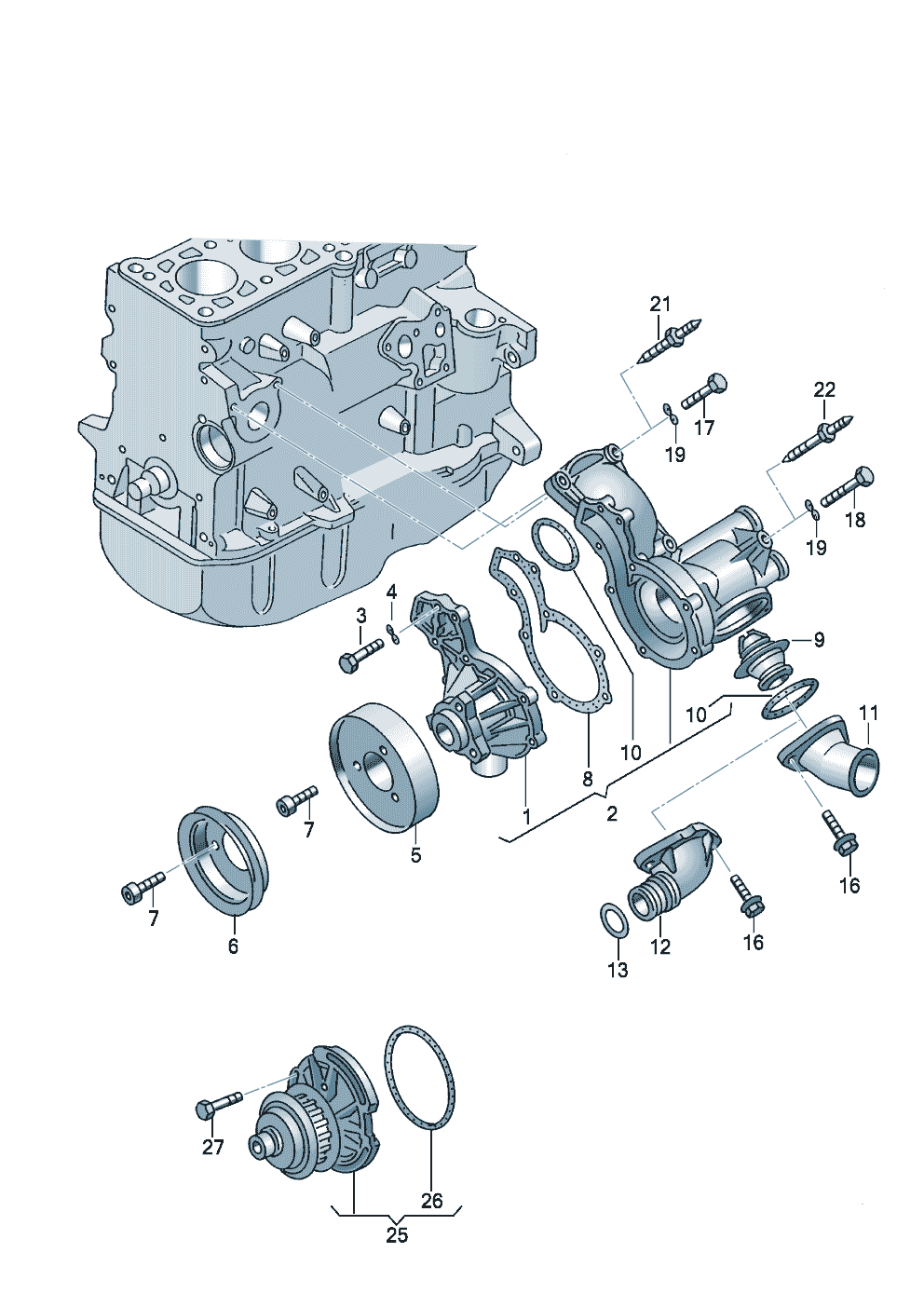

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coolant pump 4-cylinder+AAM,ABF,ADZ,AEP,ACC,AGG,AFT,AKS,AKRDiesel eng.+1 Y,AAZ,1 Z,AEY,AFN,AHU,ALE 1ZAAZABFACCADZAEPAEYAFNAFTAGGAHUAKSALE	—
	Coolant pump 4-cylinder	—
	Coolant pump 4-cylinder+AEX,AEE,APQ AEEAPQ	—
-	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
-	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
(2)	Coolant pump with sealingrings, without belt pulley,regulator and pipe neck	037 121 010 AX
(2)	Coolant pump with sealingrings, without belt pulley,regulator and pipe neck	037 121 010 BX
(21)	Hexagon bolt M 8 X 34 M 8 X 34	028 260 821 D
(25)	Coolant pump with sealing ring	030 121 005 NX
(25)	Coolant pump with glued insealing ring	030 121 008 DX
(5)	pulley 1 Y,1 Z,AAZ,AEY,AFN,AHU,ALE 1Y1ZAAZAEYAFNAHUALE	028 121 031 E
(9)	Coolant regulator 87 C-102 C 1 Y,AAZ,1 Z,AEY,AFN,AHU,ALE 87 C-102 C 1Y1ZAAZAEYAFNAHUALE	068 121 113 H
(9)	Coolant regulator 82 C-97 C ABF 82 C-97 C ABF	037 121 113
1	Bearing housing w/ pump wheel	026 121 005 H
1	Bearing housing w/ pump wheel	037 121 005 C
10	O-ring	059 121 119
10	seal ring 50 X 4 50 X 4	038 121 119 B
12	Pipe union	037 121 121 A
13	O-ring 28,5 X 3,8 28,5 X 3,8	1H0 121 687 A
13	O-ring 28,5 X 3,8 28,5 X 3,8	1H0 121 687
16	hexagon head bolt (combi) M 6 X 22 M 6 X 22	N 902 809 01
2	Coolant pump with sealingrings, without belt pulley,regulator and pipe neck	037 121 010 A
2	Coolant pump with sealingrings, without belt pulley,regulator and pipe neck	037 121 010 C
21	Stud M 8 X 34 X 24 M 8 X 34 X 24	028 260 821
22	Stud M 8 X 55 X 19 M 8 X 55 X 19	028 260 821 A
25	Coolant pump with sealing ring	030 121 005 N
25	Coolant pump with glued insealing ring	030 121 008 D
26	seal ring 4 MM 4 MM	030 121 043 C
27	Hexagon bolt M 8 X 28 M 8 X 28	N 010 233 6
3	Hexagon bolt M 6 X 22 M 6 X 22	N 010 222 8
4	Spring washer 6 6	N 012 226 5
5	pulley AAM,ABF,ADZ,AEP,ACC,AGG,AFT,AKS,AKR AAMABFACCADZAEPAFTAGGAKRAKS	028 121 031 K
6	v-belt pulleyfor vehicles with air condit.	037 121 031 A
7	Socket head bolt withinner multipoint head M 8 X 14 M 8 X 14	N 903 086 05
7	Socket head bolt withinner multipoint head M 8 X 14 M 8 X 14	N 903 086 03
8	Seal 1,5 MM 1,5 MM	026 121 041 P
8	Seal 1,5 MM 1,5 MM	026 121 041 M
9	Coolant regulator 87 C-102 C AAM,ADZ,AEP,ACC,AGG,AFT,AKS,AKR 87 C-102 C AAMACCADZAEPAFTAGGAKRAKS	044 121 113
9	Coolant regulator 87 C-102 C AAM,ADZ,AEP,ACC,AGG,AFT,AKS,AKR 87 C-102 C AAMACCADZAEPAFTAGGAKRAKS	056 121 113 D

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these cooling diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, AAM, AAZ, ABF, ACC, ADZ, AEE
Variant tags: diesel
Factory group: 11 Drive cooling
Factory subgroup: 121010
