Which VW part numbers are on the distributor distributor diagram for the Mk3 Golf?

This diagram lists 12 OEM part numbers for the Mk3 Golf. The first three are 030 905 237 GX, 030 905 205 AB and 030 905 209.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes AEE, AEX and APQ.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Distributor distributor — Mk3 Golf Engine Electrics (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Ignition lead. Spark plug. Glow plug. current rail. ignition transformer

Generation: Mk3 1997 (RDW) Group: Engine electrics Rebuild step 4 Parts: 12 Primary OEM: 030 905 237 GX, 030 905 205 AB, 030 905 209

Distributor distributor for the Volkswagen Golf Mk3 (1997): factory exploded diagram 905050 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 12 OEM part numbers including 030 905 237 GX, 030 905 205 AB and 030 905 209. Parts on this plate carry the engine codes AEE, AEX and APQ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 12 OEM part numbers across 12 numbered positions.

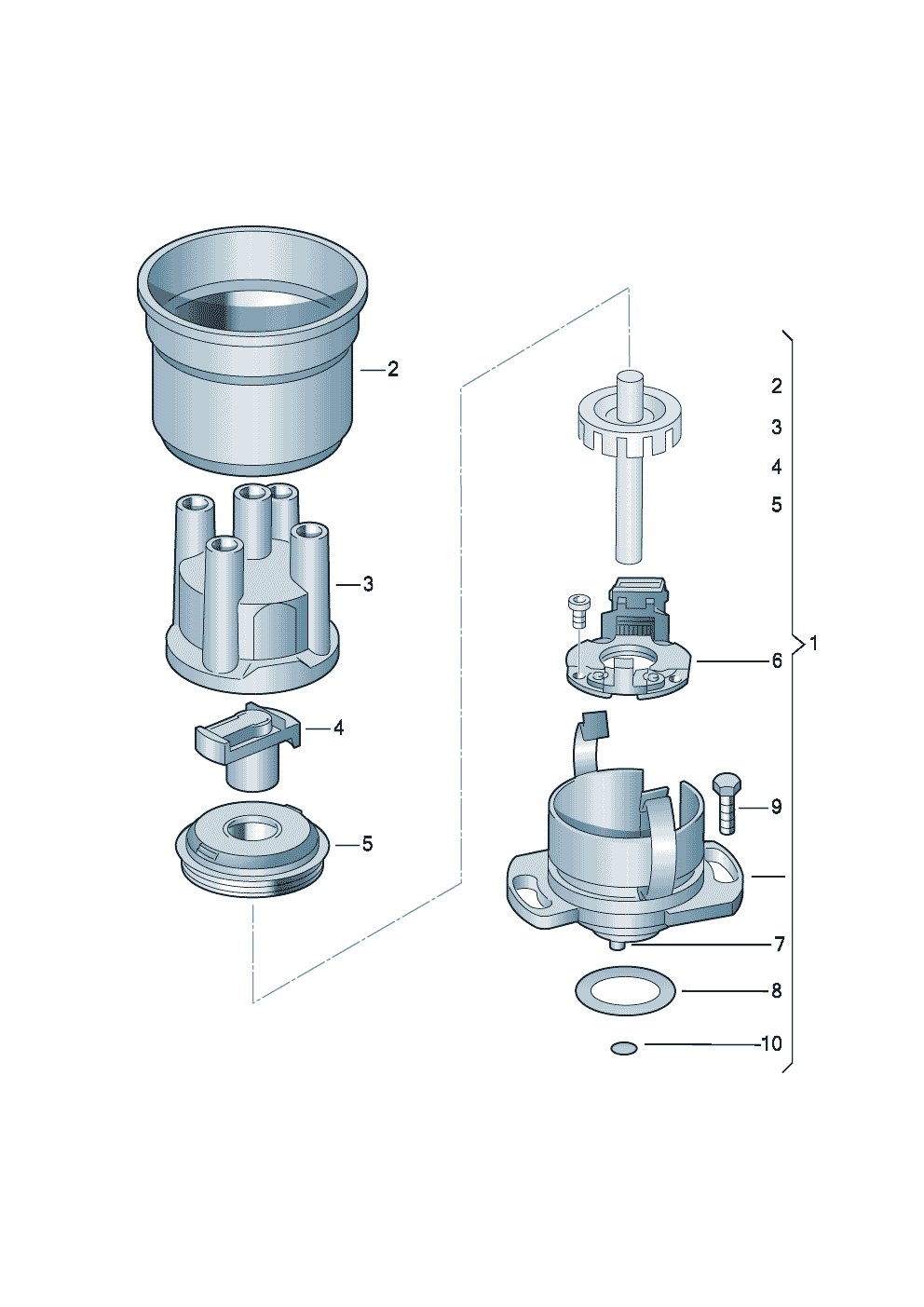

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Distributor only to be used for: 030 905 205 AB AEX,AEE,APQ 030 905 205 AB AEEAEXAPQ	030 905 237 GX
1	Distributor AEX,AEE AEEAEX	030 905 205 AB
2	Shield ring	030 905 209
3	distributor cap for distributor: 9 9	030 905 207
4	rotor for distributor for distributor: 9 9	052 905 225 C
5	Dust cover for distributor: 9 9	030 905 241 A
6	impulse sender for distributor: 9 9	030 905 065
6	impulse sender for distributor: 9 9	030 905 065 B
7	Follower for distributor: 9 9	030 905 242
8	O-ring for distributor: 9 9	077 133 237 C
8	O-ring for distributor: 42 X 4,59 42 X 4,59	030 905 224
9	Hexagon bolt for distributor: M 6 X 229 M 6 X 229	N 010 222 8

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine electrics diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AEE, AEX, APQ
Factory group: 44 Engine electrics
Factory subgroup: 905050
