Which VW part numbers are on the ignition transformerignition lead spark plug aaa diagram for the Mk3 Golf?

This diagram lists 26 OEM part numbers for the Mk3 Golf. The first three are 021 133 919 B, 021 905 430 BT and 021 905 430 F.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine code AAA.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Ignition transformerignition lead spark plug aaa — Mk3 Golf Engine Electrics (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Ignition lead. Spark plug. Glow plug. current rail. ignition transformer

Generation: Mk3 1997 (RDW) Group: Engine electrics Rebuild step 4 Parts: 27 Primary OEM: 021 133 919 B, 021 905 430 BT, 021 905 430 F

Ignition transformerignition lead spark plug aaa for the Volkswagen Golf Mk3 (1997): factory exploded diagram 905030 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 26 OEM part numbers across 27 catalogued positions including 021 133 919 B, 021 905 430 BT and 021 905 430 F. Parts on this plate carry the engine code AAA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 26 OEM part numbers across 27 numbered positions.

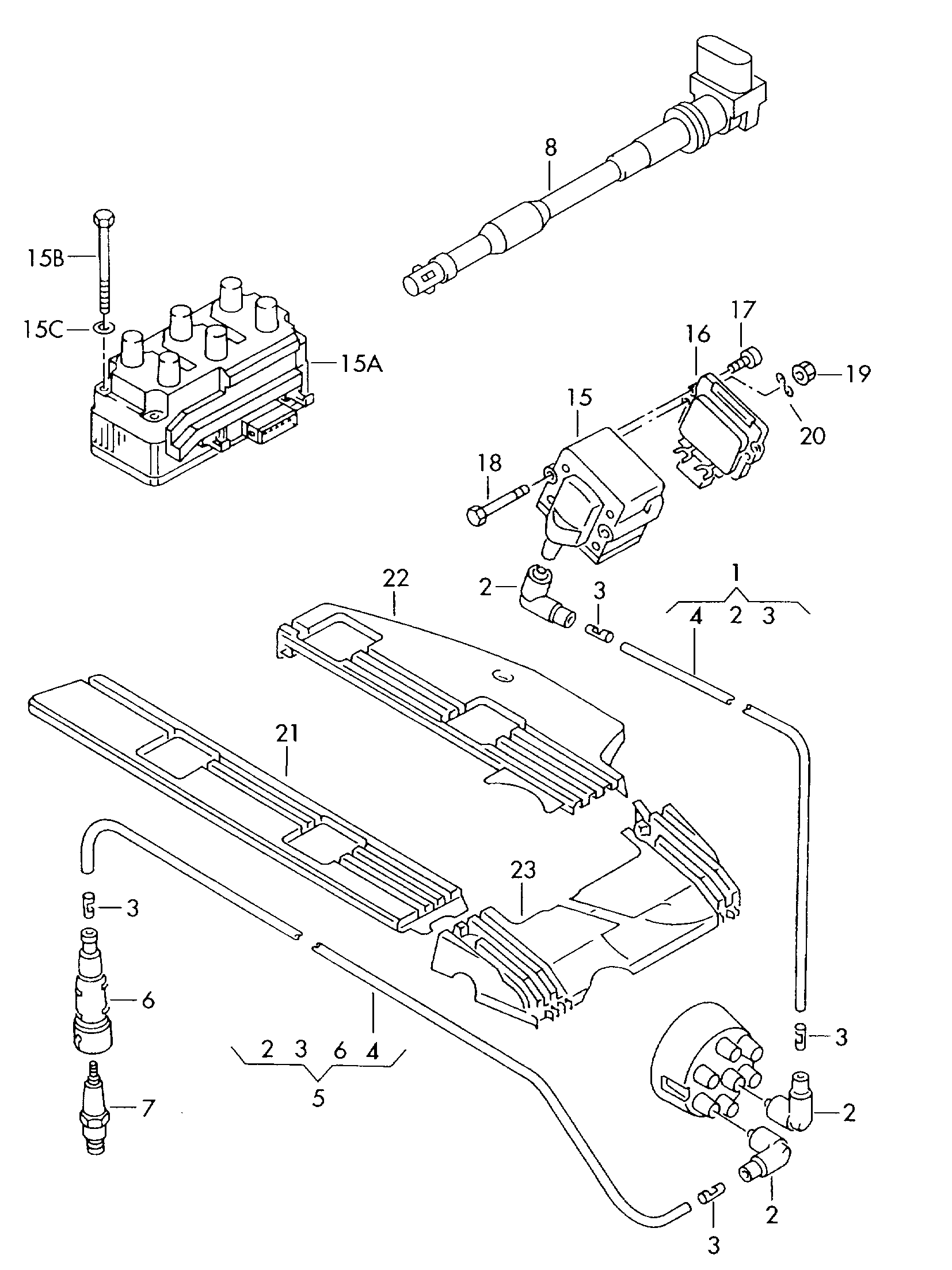

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	ignition transformerignition lead Spark plug AAA AAA	—
(23)	Cover	021 133 919 B
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 BT
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 F
(5)	ignition lead F >> 1 H-VW 600 000	N 907 680 02
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 CA
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 G
(5)	ignition lead F >> 1 H-VW 600 000	N 907 680 03
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 CB
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 H
(5)	ignition lead F >> 1 H-VW 600 000	N 907 680 04
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 CC
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 J
(5)	1 set: ignition leads F >> 1 H-VW 600 000	357 998 031
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 CD
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 K
(5)	ignition lead F >> 1 H-VW 600 000	N 907 680 06
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 CE
(5)	ignition lead F 1 H-WW 000 001>>	021 905 430 L
(5)	ignition lead F >> 1 H-VW 600 000	N 907 680 05
(5)	ignition lead F >> 1 H-VW 600 000	N 907 680 01
(7)	spark plug 'longlife'	101 000 035 AH
15A	ignition transformer	021 905 106
15B	Socket head bolt withhexagon socket head M 6 X 70 M 6 X 70	N 100 598 01
15C	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
21	Cable holder	021 133 917
22	Cable holder	021 133 918

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these engine electrics diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: AAA
Factory group: 44 Engine electrics
Factory subgroup: 905030
