Wishbonesuspension wheel bearing housing front aam — Mk3 Golf Front Axle (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Wishbone. Wheel bearing housing. suspension

Generation: Mk3 1997 (RDW) Group: Front axle Rebuild step 2 Parts: 111 Primary OEM: 357 614 150 E OT, 161 867 299 0 1C, 1H0 615 448 0 1C

Wishbonesuspension wheel bearing housing front aam for the Volkswagen Golf Mk3 (1997): factory exploded diagram 407010 from the Volkswagen ETKA parts catalogue, group 40 Front axle, listing 110 OEM part numbers across 111 catalogued positions including 357 614 150 E OT, 161 867 299 0 1C and 1H0 615 448 0 1C. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ADZ, AEE, AEX and AEY. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 110 OEM part numbers across 111 numbered positions.

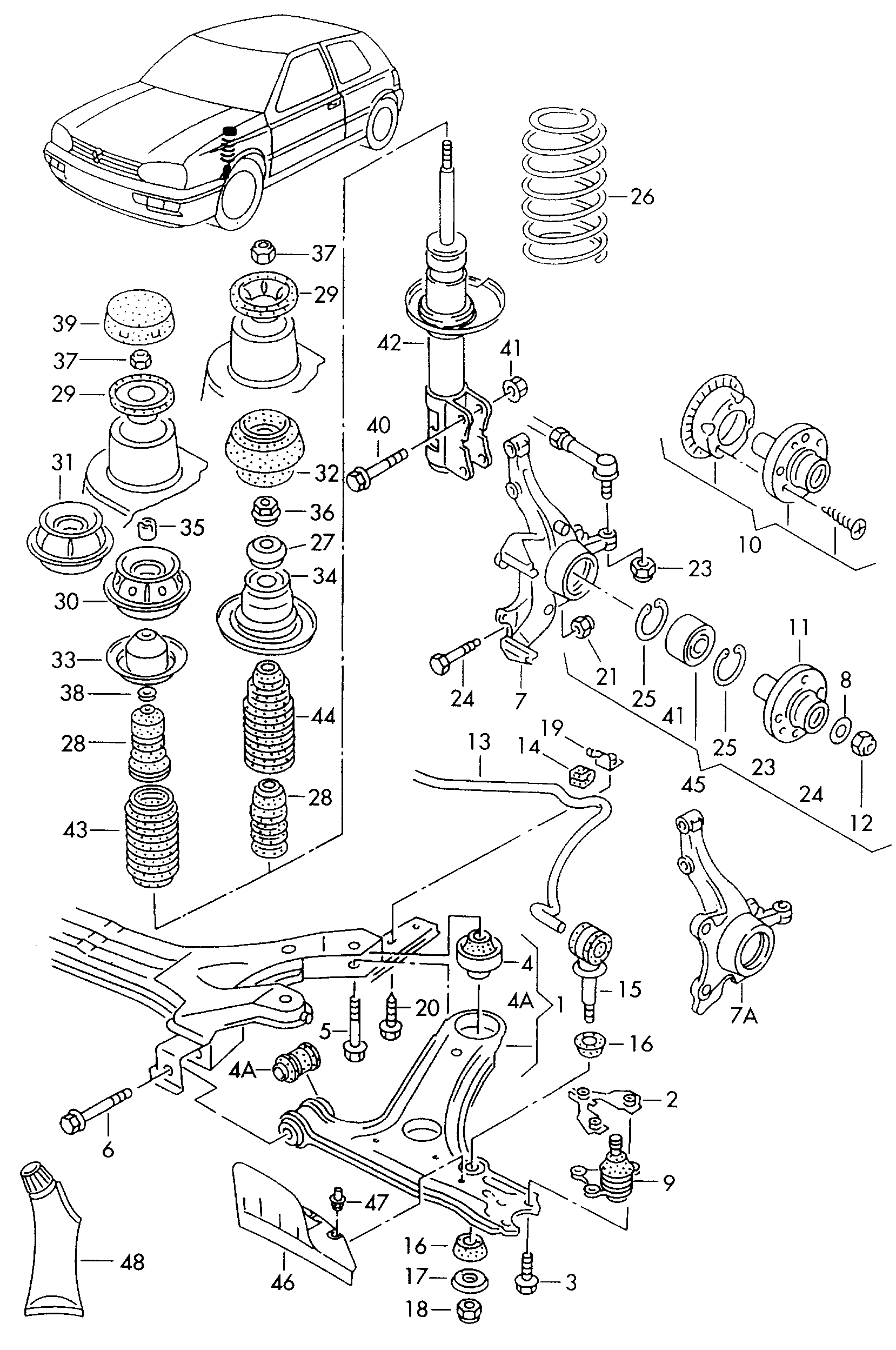

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Front/centre/rear 1Y	357 614 150 E OT
	Satin black 1Y	161 867 299 0 1C
	Satin black 1Y	1H0 615 448 0 1C
	Satin black 1Y	1H0 615 447 0 1C
	Wishbonesuspension Wheel bearing housing front AAM,1 Y,1 Z,AAZ,ADZ,AGG,AEY,AEE,AEX,AFT,AFN,AHU,AKR,AKS,ALE,APQ;"CN.","GUS":AEP;"BR.":ACC front 1Y1ZAAMAAZADZAEEAEXAEYAFNAFTAGGAHUAKRAKSALE	—
-	molypaste,lubricating paste 1Y	G 052 723 A2
-	countersunk boltfor ABS anti-lock braking sys M 6 X 16 M 6 X 16 1Y	N 102 316 01
-	rotor for speed sensorfor ABS anti-lock braking sys 1Y	357 614 150
(13)	Anti-roll bar also use: 20 MM 1 H 0 411 314 PR:0 AJ 20 MM 1 H 0 411 314 1Y	1H0 411 309 G
(26)	Coil spring 1 paint mark 1 paint mark AEE,AEX,AAM,APQ AAMAEEAEXAPQ	1J0 411 105 AD
(26)	Coil spring 2 paint marks 1 paint mark PR:E 2 E:AAZ;"GB.":1 Y;Automatic+AFT,AKS,GT:ADZ,"GB.":ADZ ADZAKS	1J0 411 105 BG
(26)	Coil spring 3 paint marks 2 paint marks AEE,AEX,AAM,APQ AAMAEEAEXAPQ	6N0 411 105 D
(26)	Coil spring 1 paint mark 2 paint marks PR:E 2 E:AAZ;"GB.":1 Y;Automatic+AFT,AKS,GT:ADZ,"GB.":ADZ ADZAKS	1H0 411 105 C
(26)	Coil springfor vehicles with air condit.2 paint marks 1 paint mark AAM,AEE,ADZ;Automatic+AAM AAMAEE	357 411 105 AA
(26)	Coil spring 1 paint mark 4 colour strokes 1 Z,AHU,ALE;"BR.","CN.","GUS","J..";Automatic+AGG 1ZAHU	1H0 411 105 E
(26)	Coil spring 1 paint mark 2 paint marks 1 Z,AHU,ALE;"BR.","CN.","GUS","J..";Automatic+AGG 1ZAHU	1J0 411 105 AG
(26)	Coil spring 2 paint marks 2 paint marks AAZ,AEY,AGG,1 Y,AKR;Automatic+ADZ 1YAAZAEYAGG	357 411 105 AB
(26)	Coil springfor vehicles with air condit.1 paint mark 1 paint mark PR:E 2 E:AEE 1Y	6N0 411 105 B
(26)	Coil springfor vehicles with air condit.2 paint marks 2 paint marks PR:E 2 E:AEE 1Y	1J0 411 105 BH
(26)	Coil springfor models withheavy duty suspension 4 colour strokes 3 paint marks 1Y	357 411 105 R
(26)	Coil springfor models withheavy duty suspension 3 paint marks 2 paint marks 1Y	357 411 105 Q
(26)	Coil springfor vehicles with air condit.3 paint marks 2 paint marks Automatic+"CN.","GUS","J.." 1Y	357 411 105 Q
(26)	Coil springfor models withheavy duty suspension 3 paint marks 1 paint mark 1Y	357 411 105 P
(26)	Coil spring 2 paint marks 1 paint mark ADZ;Automatic+AAM 1Y	357 411 105 AA
(26)	Coil springfor models withheavy duty suspension 1 paint mark 4 colour strokes 1Y	1H0 411 105 E
(26)	Coil springfor models withheavy duty suspension 1 paint mark 2 paint marks 1Y	1J0 411 105 AG
(26)	Coil springfor vehicles with air condit.1 paint mark 4 colour strokes AAZ;Automatic+AGG 1Y	1H0 411 105 E
(26)	Coil springfor vehicles with air condit.1 paint mark 2 paint marks AAZ;Automatic+AGG 1Y	1J0 411 105 AG
(26)	Coil springfor vehicles with air condit.2 paint marks 1 paint mark PR:E 2 E:AFT,ADZ;GT:ADZ;AFT,AKS;"GB.":1 Y,ADZAutomatic+GT:ADZ;AFT;"GB.":ADZ 1Y	1J0 411 105 BG
(26)	Coil springfor vehicles with air condit.1 paint mark 2 paint marks PR:E 2 E:AFT,ADZ;GT:ADZ;AFT,AKS;"GB.":1 Y,ADZAutomatic+GT:ADZ;AFT;"GB.":ADZ 1Y	1H0 411 105 C
(26)	Coil spring 1 paint mark 1 paint mark AFN,GT:1 Z,AHU,ALE;Air cond.+AAZ 1ZAFNAHU	1H9 411 105 K
(26)	Coil spring 1 paint mark 1 paint mark AFT,AKS;GT:ADZ;PR:E 2 E:AEE,AFT,ADZ;"GB.":AEX,ADZ ADZAFT	6N0 411 105 B
(26)	Coil spring 3 paint marks 1 paint mark Automatic+1 Z,AHU,"CN.","GUS","J.." AHU	357 411 105 P
(26)	Coil springfor vehicles with air condit.2 paint marks 2 paint marks AEY,AGG,1 Y,AKR;Automatic+AAM,ADZ 1YADZAEYAGG	357 411 105 AB
(26)	Coil spring 2 paint marks 2 paint marks AFT,AKS;GT:ADZ;PR:E 2 E:AEE,AFT,ADZ;"GB.":AEX,ADZ ADZAFT	1J0 411 105 BH
(26)	Coil springfor vehicles with air condit.3 paint marks 1 paint mark 1 Z,AHU,ALE;"BR.","CN.","GUS","J..";Automatic+1 Z,AHU 1ZAHU	357 411 105 P
(26)	Coil springfor vehicles with air condit.1 paint mark 2 paint marks AFN,GT:1 Z,AHU,ALE;PR:E 2 E:1 Z,AHU;Automatic+AFN,GT:1 Z,AHU 1ZAFNAHU	1H9 411 105 G
(26)	Coil spring 1 paint mark 2 paint marks Automatic+AFN,GT:1 Z,AHU 1ZAHU	1H9 411 105 G
(28)	rubber stop forshock absorber 63 MM 63 MM 1Y	1H0 412 303 B
(28)	rubber stop forshock absorberfor models withheavy duty suspension 83 X 18 83 X 18 1Y	357 412 303 F
(28)	rubber stop forshock absorber 83 X 18 "BR.":ACC;AEP 83 X 18 1Y	357 412 303 F
(42)	Gas shock absorber 'ECO'Economy(use in pairs only)F >> 1 H-V-060 000* "GUS","J..","BR.","CN." 1Y	JZW 413 031 AA
(42)	Shock absorbers AAM,ADZ,1 Y,AEY,AEE,AEX,APQ 1YAAMADZAEEAEXAEYAPQ	1H0 413 031 N
(42)	Shock absorbers AAZ,AGG,1 Z,AFT,AFN,AHU,AKR,AKS,ALE 1ZAAZAFNAFTAGGAHUAKRAKSALE	1H0 413 031 P
(42)	Gas shock absorber 'ECO'Economy(use in pairs only) AAM,ADZ,1 Y,AEY,AEE,AEX,APQ 1YAAMADZAEEAEXAEYAPQ	JZW 413 031 E
(42)	Gas shock absorber 'ECO'Economy(use in pairs only) AAZ,AGG,1 Z,AFT,AFN,AHU,AKR,AKS,ALE 1ZAAZAFNAFTAGGAHUAKRAKSALE	JZW 413 031 E
(42)	Gas shock absorber 'ECO'Economy(use in pairs only) PR:E 2 E;"GB." 1Y	JZW 413 031 E
(42)	Shock absorbers PR:E 2 E;"GB." 1Y	1H0 413 031 P
(42)	Gas shock absorber 'ECO'for models withheavy duty suspension Economy(use in pairs only)F 1 H-V-060 001>>* 1Y	JZW 413 031 AA
(42)	Shock absorbersfor models withheavy duty suspension F 1 H-V-060 001>>* 1Y	1H0 413 031 Q
(42)	Gas shock absorber 'ECO'for models withheavy duty suspension Economy(use in pairs only)F >> 1 H-V-060 000* 1Y	JZW 413 031 AA
(42)	Shock absorbersfor models withheavy duty suspension F >> 1 H-V-060 000* 1Y	1H0 413 031 L
(42)	Gas shock absorber 'ECO'Economy(use in pairs only)F 1 H-V-060 001>>* "GUS","J..","BR.","CN." 1Y	JZW 413 031 AA
(42)	Shock absorbers F 1 H-V-060 001>>* "GUS","J..","BR.","CN." 1Y	1H0 413 031 Q
(46)	Air guide 1Y	1H0 615 448
(7)	Wheel bearing housing with -brake carrier 1Y	1H0 407 256 B
(7A)	Wheel bearing housing 1Y	357 407 256 C
1	Wishbone 1Y	1H0 407 151
10	wheel hub with rotorfor models with anti-lockbrake system -abs- 4/100 4/100 1Y	357 407 613 B
11	Wheel hub 4/100 4/100 1Y	357 407 615
12	hexagon nut, self-locking M 20 X 1,5 M 20 X 1,5 1Y	171 407 643 A
13	Anti-roll bar also use: 21,5 MM 1 H 0 411 314 PR:0 AB,0 AF 21,5 MM 1 H 0 411 314 1Y	1H9 411 309
14	Rubber bush 1Y	1H0 411 314
15	Coupling rod also use: N 011 184 9 N 011 184 9 1Y	191 411 315 B
16	bearing ring 1Y	191 411 329
16	bearing ring 1Y	6N0 411 329
17	cup spacer 1Y	191 411 331
18	hexagon nut, self-locking M 8 M 8 1Y	N 011 184 9
19	Clamp 1Y	191 411 334
2	Retaining plate 1Y	191 407 175
20	Hex collared bolt M 8 X 18 M 8 X 18 1Y	N 019 538 2
21	Hexagon collar nutself-locking M 10 M 10 1Y	N 102 861 02
21	hexagon nut, self-locking M 10 M 10 1Y	N 102 951 01
23	hexagon nut, self-locking M 12 X 1,5 M 12 X 1,5 1Y	N 903 213 01
23	hexagon nut, self-locking M 12 X 1,5 M 12 X 1,5 1Y	N 903 213 02
24	Hexagon bolt M 10 X 50 X 24 M 10 X 50 X 24 1Y	N 034 778 4
24	Hexagon bolt M 10 X 50 M 10 X 50 1Y	N 903 289 01
25	Securing ring 72 X 2 72 X 2 1Y	N 903 293 01
27	Deep groove ball thrust bearng 1Y	1J0 412 249
27	Deep groove ball thrust bearng 1Y	357 412 249 A
29	Stop 1Y	357 412 319 B
3	Hex collared bolt M 8 X 26 M 8 X 26 1Y	N 101 277 06
3	Hexagon bolt M 8 X 26 M 8 X 26 1Y	N 101 277 02
32	suspension strut storage 1Y	357 412 331 A
34	spring disc 1Y	357 412 341 A
36	Threaded bush M 14 X 1,5 M 14 X 1,5 1Y	1H0 412 365 A
37	hexagon nut, self-locking M 14 X 1,5 M 14 X 1,5 1Y	N 903 536 03
37	hexagon nut, self-locking AM 14 X 1,5 AM 14 X 1,5 1Y	N 903 536 01
4	Bonded rubber bush 1Y	191 407 181 E
4	Bonded rubber bush 1Y	191 407 181 D
40	Hex collared bolt M 12 X 1,5 X 58 X 25 M 12 X 1,5 X 58 X 25 1Y	N 101 740 02
40	Hex collared bolt BM 12 X 1,5 X 58 BM 12 X 1,5 X 58 1Y	N 101 740 01
41	Hexagon collar nutself-locking M 12 X 1,5 M 12 X 1,5 1Y	N 903 237 04
41	Hexagon collar nutself-locking M 12 X 1,5 M 12 X 1,5 1Y	N 903 237 03
42	Shock absorbers F >> 1 H-V-060 000* "GUS","J..","BR.","CN." 1Y	1H0 413 031 L
44	Bellows 221,5 MM 221,5 MM 1Y	357 413 175 A
45	Wheel bearing with assemblyparts also use: G 052 723 A 2 G 052 723 A 2 1Y	357 498 625 C
45	Wheel bearing with assemblyparts 1Y	357 498 625 B
46	Air guide 1Y	1H0 615 447
47	Spreader rivet 8 X 12 8 X 12 1Y	N 038 549 1
47	Clip 1Y	161 867 299
48	universal grease 120 G 120 G 1Y	G 052 735 A2
4A	Bonded rubber bush 1Y	357 407 182
5	Hexagon bolt M 12 X 1,5 X 78 M 12 X 1,5 X 78 1Y	N 102 078 03
5	Hexagon bolt M 12 X 1,5 X 78 M 12 X 1,5 X 78 1Y	N 102 078 01
6	Hexagon bolt M 12 X 1,5 X 82 M 12 X 1,5 X 82 1Y	N 904 840 01
6	Hexagon bolt M 12 X 1,5 X 82 M 12 X 1,5 X 82 1Y	N 904 840 03
7	Wheel bearing housing with -brake carrier 1Y	1H0 407 255 B
7A	Wheel bearing housing 1Y	357 407 255 C
8	fitted washer 1Y	171 407 277
9	Guide joint 1Y	357 407 365
